WU342R-TKMQHD3 (2009)

Toyota Dyna

Production Dec 2009 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )W04D..WU302,342,352..DCRTP,DCRTR

Click highlighted areas on diagram

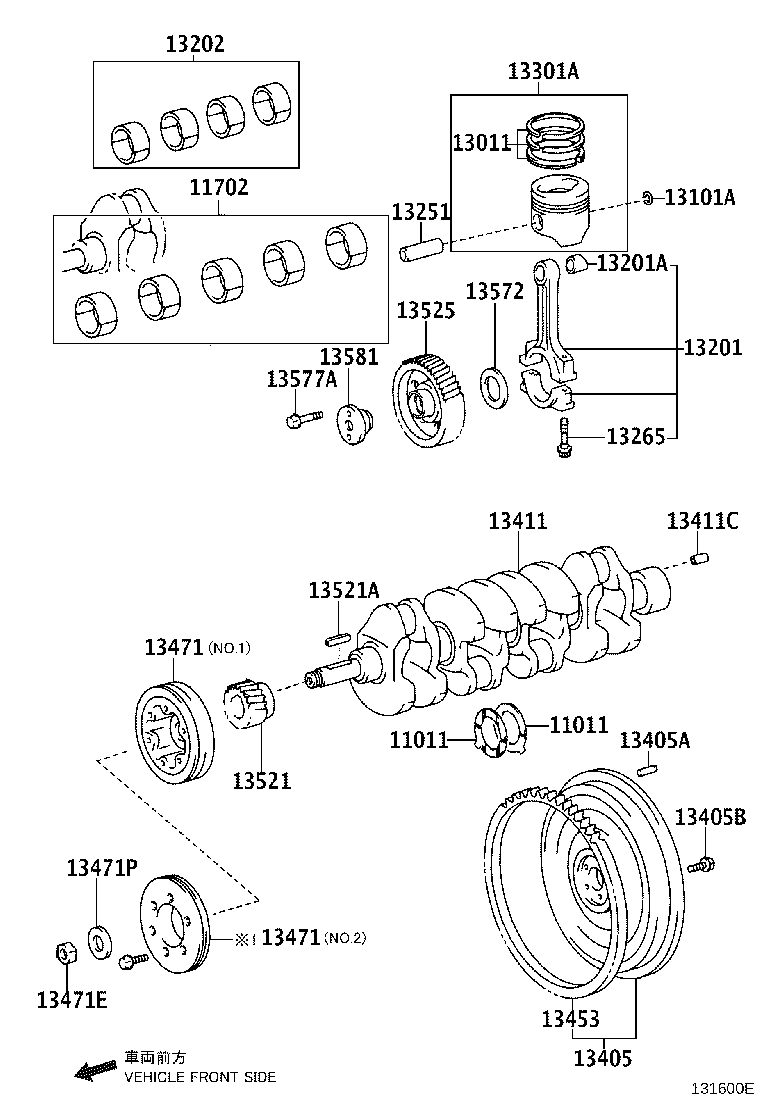

diagram 11011 11011 11702 13011 13101A 13201 13201A 13202 13251 13265 13301A 13405 13405A 13405B 13411 13411C 13453 13471 13471 13471E 13471P 13521 13521A 13525 13572 13577A 13581
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-E0030

W04D..WU302,342,352

STD

 1
11011-78010

W04D..WU302,342..DCRTP,DCRTR

STD

 1
11013-78010

W04D..WU302,342,352..DCRTP,DCRTR

O/S 0.250

 1
11011 - WASHER SET, CRANKSHAFT THRUST
11011-E0030

W04D..WU302,342,352

STD

 1
11011-78010

W04D..WU302,342..DCRTP,DCRTR

STD

 1
11013-78010

W04D..WU302,342,352..DCRTP,DCRTR

O/S 0.250

 1
11702 - BEARING SET, CRANKSHAFT
11701-78100

W04D..WU302,342..DCRTP,DCRTR

STD

 1
11701-E0070

W04D..WU302,342,352

STD

 1
11701-E0040

W04D..WU302,342

STD

 1
S1170-12420

W04D..WU302,342,352

STD

 1
11708-78010

W04D..WU302,342,352..DCRTP,DCRTR

U/S 0.25

 1
11708-78020

W04D..WU302,342,352..DCRTP,DCRTR

U/S 0.50

 1
11708-78030

W04D..WU302,342,352..DCRTP,DCRTR

U/S 0.75

 1
11708-78040

W04D..WU302,342,352..DCRTP,DCRTR

U/S 1.00

 1
13011 - RING SET, PISTON
13011-78241

W04D..WU302,342,352..DCRTP,DCRTR

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90035-21020

W04D..WU302,342,352..DCRTP,DCRTR

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-78030

W04D..WU302,342..DCRTP,DCRTR

 4
13260-E0050

W04D..WU302,342,352

 4
13201-78032

W04D..WU302,342,352

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
13271-89102

W04D..WU302,342..DCRTP,DCRTR

 4
S1327-21400

W04D..WU302,342,352

 4
13202 - BEARING SET, CONNECTING ROD
S1320-61720

W04D..WU302,342,352

U/S 1.00

 1
13041-78060

W04D..WU302,342..DCRTP,DCRTR

STD

 1
13041-78090

W04D..WU302,342..DCRTP,DCRTR

U/S 0.50

 1
13041-78080

W04D..WU302,342..DCRTP,DCRTR

U/S 0.25

 1
13041-E0610

W04D..WU302,342

STD

 1
13041-E0690

W04D..WU302,342,352

STD

 1
13041-78110

W04D..WU302,342..DCRTP,DCRTR

U/S 1.00

 1
S1320-11960

W04D..WU302,342,352

STD

 1
S1320-51730

W04D..WU302,342,352

U/S 0.75

 1
S1320-41790

W04D..WU302,342,352

U/S 0.50

 1
13041-78100

W04D..WU302,342..DCRTP,DCRTR

U/S 0.75

 1
S1320-31820

W04D..WU302,342,352

U/S 0.25

 1
13251 - PIN, PISTON
13251-E0070

W04D..WU302,342

 4
13251-89101

W04D..WU302,342..DCRTP,DCRTR

 4
13251-E0120

W04D..WU302,342,352

 4
13265 - BOLT, CONNECTING ROD
13265-89103

W04D..WU302,342,352..DCRTP,DCRTR

 8
13301A - PISTON SET, W/PISTON RING
13301-78081

W04D..WU302,342,352..DCRTP,DCRTR

 4
13405 - FLYWHEEL SUB-ASSY
13450-78220

W04D..WU302,342,352..DCRTP

 1
13450-78140

W04D..WU302,342..DCRTP

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-10008

W04D..WU302,342,352..DCRTP,DCRTR

L=24,OD=10

 2
13405B - BOLT, FLYWHEEL SETTING
90031-05112

W04D..WU302,342..DCRTP,DCRTR

 6
90031-05112

W04D..WU302,342,352..IDN

 8
13411 - CRANKSHAFT
13411-78011

W04D..WU302,342..DCRTP,DCRTR

 1
13411-E0071

W04D..WU302,342,352..IDN

 1
13411-78080

W04D..WU302,342..IDN

 1
13411C - PIN, STRAIGHT(FOR CRANKSHAFT)
90387-14013

W04D..WU302,342..DCRTP,DCRTR

 1
SZ910-29013

W04D..WU302,342,352..IDN

 1
13453 - GEAR, FLYWHEEL RING
13453-78030

W04D..WU302,342,352..DCRTP,DCRTR

 1
13471 - PULLEY, CRANKSHAFT
13470-78161

W04D..WU302,342,352..DCRTP,DCRTR

 1
13471 - PULLEY, CRANKSHAFT
13470-78161

W04D..WU302,342,352..DCRTP,DCRTR

 1
13471E - NUT(FOR CRANKSHAFT PULLEY)
90170-27001

W04D..WU302,342,352..DCRTP,DCRTR

 1
13471P - SPACER(FOR CRANKSHAFT PULLEY)
17219-78010

W04D..WU302,342,352..DCRTP,DCRTR

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-78100

W04D..WU302,342,352..DCRTP,DCRTR

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
SM171-01028

W04D..WU302,342,352..IDN

 1
90281-06001

W04D..WU302,342..DCRTP,DCRTR

 1
13525 - GEAR, IDLE, NO.1
13508-78280

W04D..WU302,342,352..DCRTP,DCRTR

 1
13572 - PLATE, IDLE GEAR THRUST
13572-78080

W04D..WU302,342,352..DCRTP,DCRTR

 1
13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
90038-01026

W04D..WU302,342,352..DCRTP,DCRTR

 1
13581 - SHAFT, IDLE GEAR, NO.1
13581-78150

W04D..WU302,342,352..DCRTP,DCRTR

 1
