WU342R-TKMQAD3 (2006)

Toyota Dyna

Production Dec 2006 - May 2010
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0907- )W04D..WU302,342..DCRTH,DCRTJ..IDN

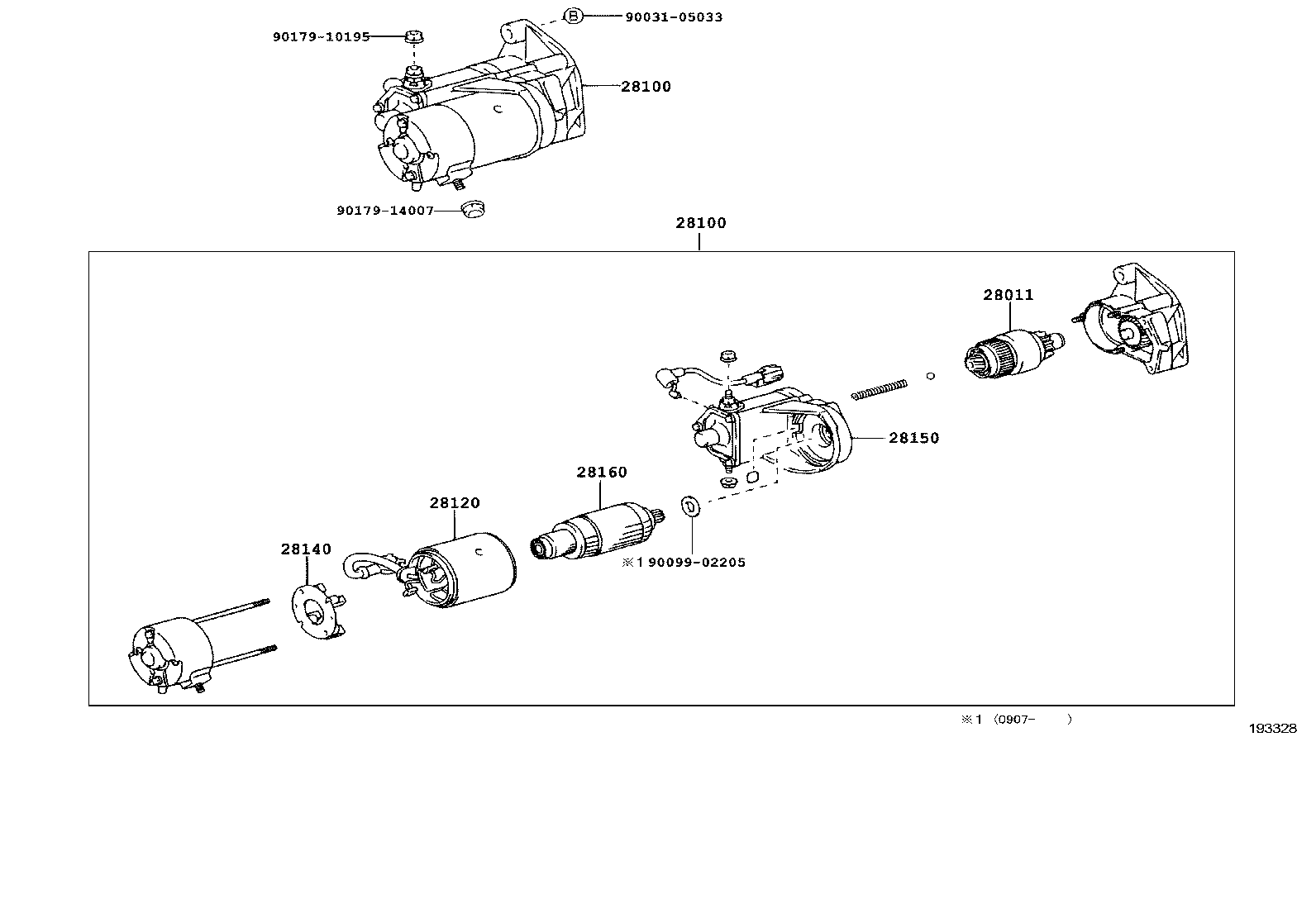

Click highlighted areas on diagram

24V 4.5KW

diagram 28011 28100 28100 28120 28140 28150 28160 9003105033 9009902205 9017910195 9017914007
Part # Description Qty Price
28100 - STARTER ASSY
28100-78100

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

24V 4.5KW

 1
28100 - STARTER ASSY
28100-78100

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

24V 4.5KW

 1
28160 - ARMATURE ASSY, STARTER
28160-77090

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
28160-56140

W04D..WU302,342..IDN

 1
Common parts
90031-05033
90099-02205
90179-10195
90179-14007
