WU342R-TKMLHD8 (2017)

Toyota Dyna

Production Aug 2017 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1708- )

Click highlighted areas on diagram

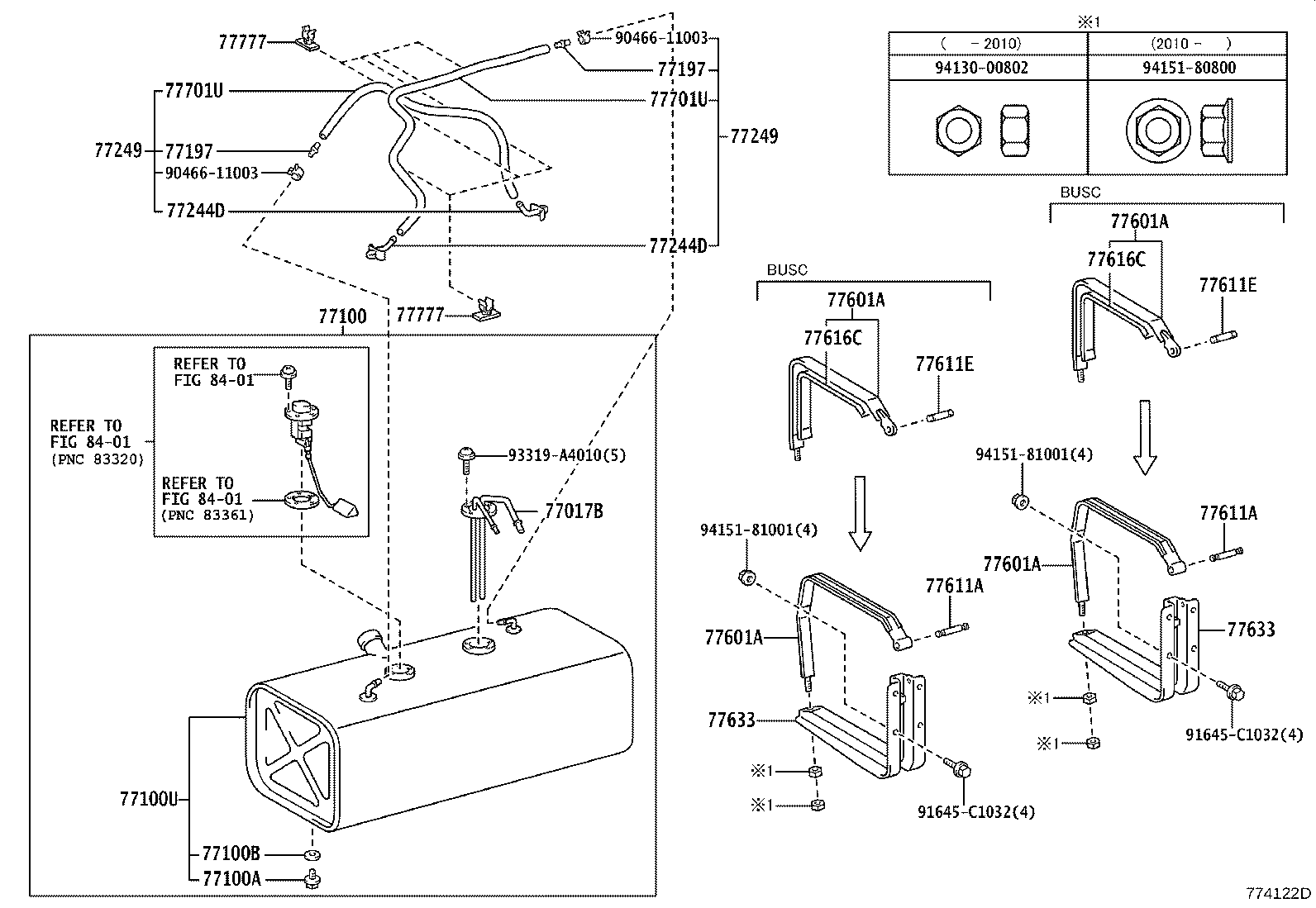

FUEL TANK

diagram 77017B 77100 77100A 77100B 77100U 77197 77197 77244D 77244D 77249 77249 77601A 77601A 77601A 77601A 77611A 77611A 77611E 77611E 77616C 77616C 77633 77633 77701U 77701U 77777 77777 8401 8401 8401 9046611003 9046611003 91645C1032 91645C1032 93319A4010 9413000802 9415180800 9415181001 9415181001
Part # Description Qty Price
77100 - TANK ASSY, FUEL
77100-F1072

WU302,342,352

 1
77100-F1073

WU302,342,352

 1
77100U - TANK SUB-ASSY, FUEL
77001-F1040

WU302,342,352

964X385X310

 1
77197 - ORIFICE, FUEL VAPOR
90977-02001

WU302,342,352

 2
77197 - ORIFICE, FUEL VAPOR
90977-02001

WU302,342,352

 2
77244D - TUBE, FUEL EVAPORATION BREATHER, NO.1
77244-37010

WU302,342,352

 2
77244D - TUBE, FUEL EVAPORATION BREATHER, NO.1
77244-37010

WU302,342,352

 2
77249 - HOSE, FUEL EMISSION
77249-37272

WU302,342,352

 2
77249 - HOSE, FUEL EMISSION
77249-37272

WU302,342,352

 2
77633 - STAY, FUEL TANK
77501-F1010

WU342..IV3..VBODY;WU302,352..(48T,85T)..(T3,VBODY);WU342..(48T,85T)..IV8..(T3,VBODY)

LONG STAY

 2
77501-F1030

WU302,342,352..T3,VBODY

 2
77633 - STAY, FUEL TANK
77501-F1010

WU342..IV3..VBODY;WU302,352..(48T,85T)..(T3,VBODY);WU342..(48T,85T)..IV8..(T3,VBODY)

LONG STAY

 2
77501-F1030

WU302,342,352..T3,VBODY

 2
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06080

WU302,342,352

*H,L=750

 2
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06080

WU302,342,352

*H,L=750

 2
77777 - BRACKET, FUEL TUBE CLAMP
77778-37030

WU302,342,352

 5
77777 - BRACKET, FUEL TUBE CLAMP
77778-37030

WU302,342,352

 5
Common parts
90466-11003
91645-C1032
93319-A4010
94130-00802
94151-80800
94151-81001
Linked diagrams
8401

ILLUST NO. 2 OF 2(1912- )

Click highlighted areas on diagram

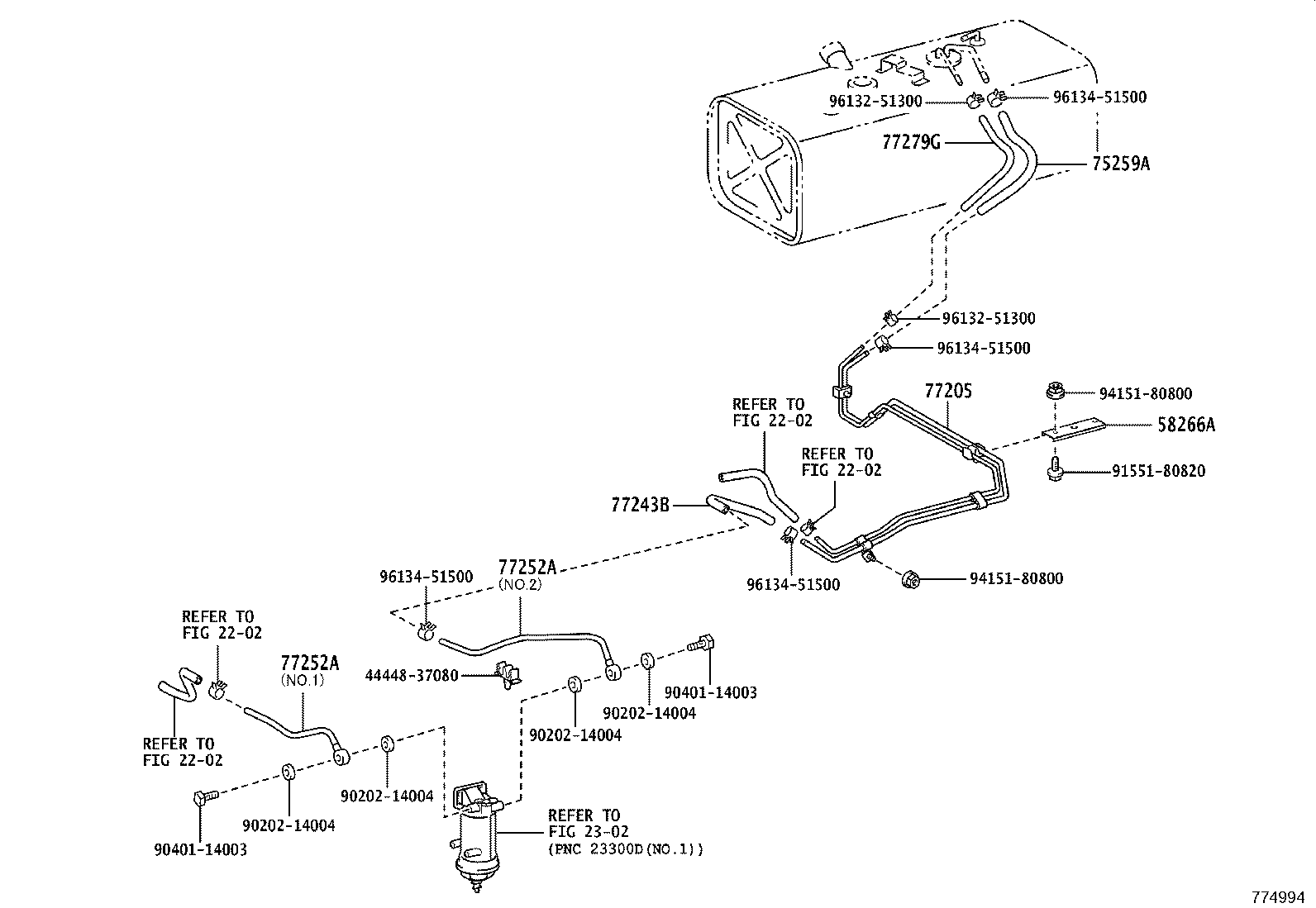

FUEL TUBE

diagram 2202 2202 2202 2202 2302 4444837080 58266A 75259A 77205 77243B 77252A 77252A 77279G 9020214004 9020214004 9020214004 9020214004 9040114003 9040114003 9155180820 9415180800 9415180800 9613251300 9613251300 9613451500 9613451500 9613451500 9613451500
Part # Description Qty Price
75259A - HOSE, FUEL
77259-37C40

WU302,342,352..T3,VBODY

 1
77259-37C50

WU302,352;WU342..VBODY;WU342..48T,65T;WU342..75T..DCRTR

LONG STAY

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-0W111

WU302,342,352

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
77259-37C30

WU302,342,352

L=295

 1
77252A - TUBE, FUEL MAIN, NO.2
77252-F1100

WU302,342,352

NO.1

 1
77252-F1110

WU302,342,352

NO.2

 1
77252A - TUBE, FUEL MAIN, NO.2
77252-F1100

WU302,342,352

NO.1

 1
77252-F1110

WU302,342,352

NO.2

 1
77279G - HOSE, FUEL, NO.2
95337-08034

WU302,342,352..T3,VBODY

 1
77279-37730

WU302,352;WU342..VBODY;WU342..48T,65T;WU342..75T..DCRTR

LONG STAY

 1
Common parts
44448-37080
90202-14004
90401-14003
91551-80820
94151-80800
96132-51300
96134-51500
Linked diagrams
2202
2302
