WU342R-TKMLHD8 (2017)

Toyota Dyna

Production Aug 2017 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

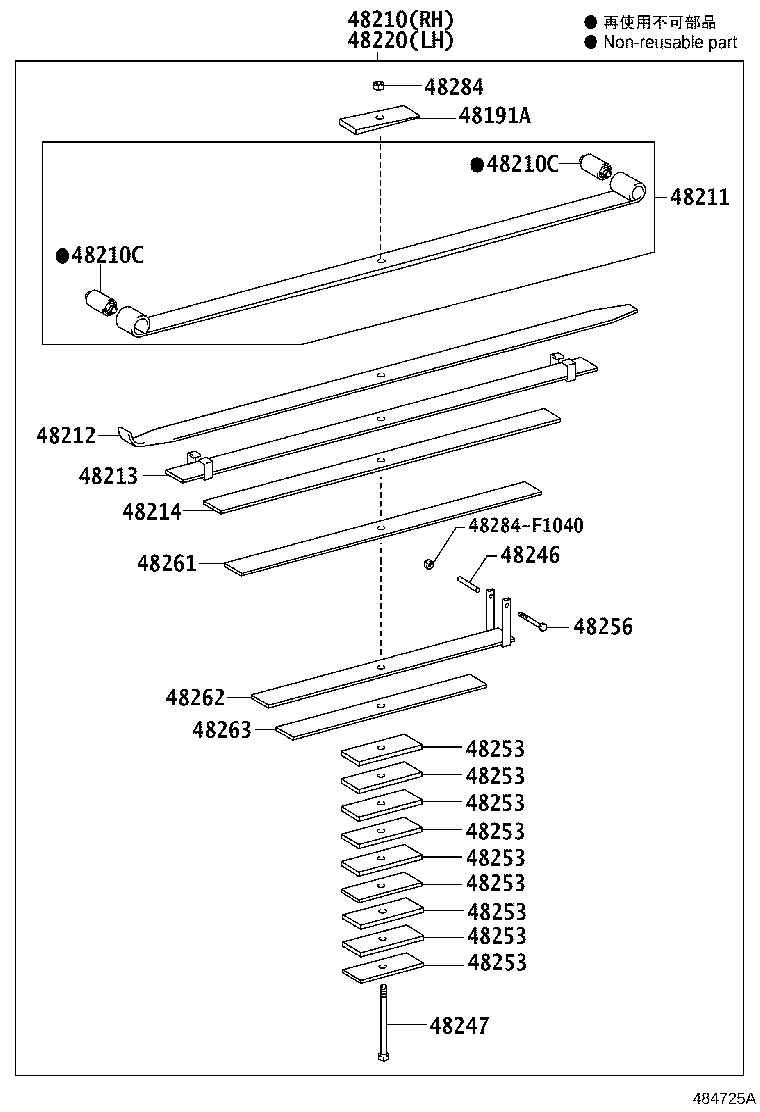

ILLUST NO. 2 OF 2(1805- )ST..T3

Click highlighted areas on diagram

MAIN 4+HELPER 3-LEAF

diagram 48191A 48210 48210C 48210C 48211 48212 48213 48214 48220 48246 48247 48253 48253 48253 48253 48253 48253 48253 48253 48253 48256 48261 48262 48263 48284 48284F1040
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37160

WU302,342..ST..T3

 2
48210 - SPRING ASSY, REAR RH
48210-F1040

WU302,342..ST..T3

MAIN 4+HELPER 3-LEAF

 1
48210-F1041

WU302,342..ST..T3

MAIN 4+HELPER 3-LEAF

 1
48211 - LEAF, REAR SPRING, NO.1
48201-F1041

WU302,342..ST..T3

REFER TO ILLUSTRATION MARK = 48210-F1041

 2
48201-F1040

WU302,342..ST..T3

REFER TO ILLUSTRATION MARK = 48210-F1040

 2
48212 - LEAF, REAR SPRING, NO.2
48212-F1040

WU302,342..ST..T3

 2
48212-F1041

WU302,342..ST..T3

 2
48213 - LEAF, REAR SPRING, NO.3
48204-F1041

WU302,342..ST..T3

 2
48204-F1040

WU302,342..ST..T3

 2
48214 - LEAF, REAR SPRING, NO.4
48214-F1041

WU302,342..ST..T3

 2
48214-F1040

WU302,342..ST..T3

 2
48220 - SPRING ASSY, REAR LH
48210-F1041

WU302,342..ST..T3

MAIN 4+HELPER 3-LEAF

 1
48210-F1040

WU302,342..ST..T3

MAIN 4+HELPER 3-LEAF

 1
48246 - CASE, REAR SPRING CLIP BOLT
48298-F1040

WU302,342..ST

 2
48247 - BOLT, REAR SPRING, CENTER
48247-F1040

WU302,342..(48T,85T)..T3

 2
48253 - SPACER, REAR SPRING, NO.1
48253-F1041

WU302,342..ST..T3

 18
48253-F1040

WU302,342..ST..T3

 8
48253 - SPACER, REAR SPRING, NO.1
48253-F1041

WU302,342..ST..T3

 18
48253-F1040

WU302,342..ST..T3

 8
48253 - SPACER, REAR SPRING, NO.1
48253-F1041

WU302,342..ST..T3

 18
48253-F1040

WU302,342..ST..T3

 8
48253 - SPACER, REAR SPRING, NO.1
48253-F1041

WU302,342..ST..T3

 18
48253-F1040

WU302,342..ST..T3

 8
48253 - SPACER, REAR SPRING, NO.1
48253-F1041

WU302,342..ST..T3

 18
48253-F1040

WU302,342..ST..T3

 8
48253 - SPACER, REAR SPRING, NO.1
48253-F1041

WU302,342..ST..T3

 18
48253-F1040

WU302,342..ST..T3

 8
48253 - SPACER, REAR SPRING, NO.1
48253-F1041

WU302,342..ST..T3

 18
48253-F1040

WU302,342..ST..T3

 8
48253 - SPACER, REAR SPRING, NO.1
48253-F1041

WU302,342..ST..T3

 18
48253-F1040

WU302,342..ST..T3

 8
48253 - SPACER, REAR SPRING, NO.1
48253-F1041

WU302,342..ST..T3

 18
48253-F1040

WU302,342..ST..T3

 8
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-F1040

WU302,342..ST

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48261-F1040

WU302,342..ST..T3

 2
48261-F1041

WU302,342..ST..T3

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48207-F1040

WU302,342..ST..T3

 2
48207-F1041

WU302,342..ST..T3

 2
48263 - LEAF, REAR HELPER SPRING, NO.3
48263-F1040

WU302,342..ST..T3

 2
48263-F1041

WU302,342..ST..T3

 2
Common parts
48284-F1040
