WU342R-TKMLHD8 (2017)
Toyota Dyna
Production
Aug 2017
-
Sep 9999
Engine
W04D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2001- )

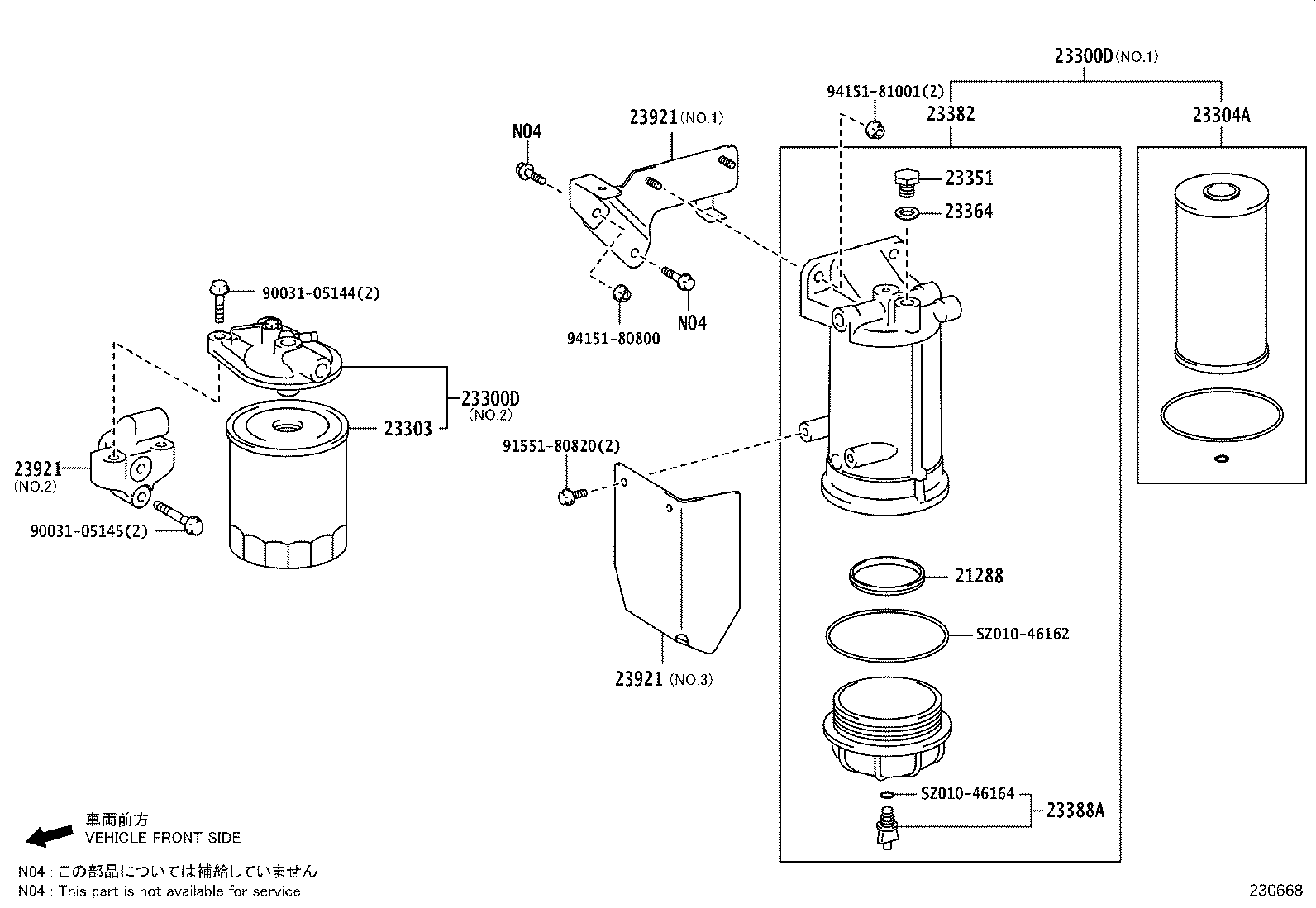

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21288 - FLOAT | ||||
| S2337-21040 |
W04D..WU302,342,352 |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23330-0U040 |
W04D..WU302,342,352 NO.1 |
1 | ||
| 23330-0U041 |
W04D..WU302,342,352 NO.1 |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23330-0U040 |
W04D..WU302,342,352 NO.1 |
1 | ||
| 23330-0U041 |
W04D..WU302,342,352 NO.1 |
1 | ||
| 23304A - ELEMENT SET, FUEL FILTER | ||||
| 23304-EV520 |
W04D..WU302,342,352 |
1 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-EV140 |
W04D..WU302,342,352 |
1 | ||
| 23364 - GASKET, AIR PLUG | ||||
| 23364-EV010 |
W04D..WU302,342,352 |
1 | ||
| 23382 - CASE, FUEL FILTER | ||||
| 23320-EV090 |
W04D..WU302,342,352 |
1 | ||
| 23388A - PLUG, FUEL FILTER DRAIN | ||||
| 23388-EV040 |
W04D..WU302,342,352 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-78750 |
W04D..WU302,342,352 NO.1 |
1 | ||
| 23921-78760 |
W04D..WU302,342,352 NO.3 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-78750 |
W04D..WU302,342,352 NO.1 |
1 | ||
| 23921-78760 |
W04D..WU302,342,352 NO.3 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-78750 |
W04D..WU302,342,352 NO.1 |
1 | ||
| 23921-78760 |
W04D..WU302,342,352 NO.3 |
1 | ||
| Common parts | ||||
| 90031-05144 | ||||
| 90031-05145 | ||||
| 91551-80820 | ||||
| 94151-80800 | ||||
| 94151-81001 | ||||
| SZ010-46162 | ||||
| SZ010-46164 | ||||
