WU342L-TKMQB3 (2006)
Toyota Dyna
Production
Oct 2006
-
Jun 2011
Engine
W04D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

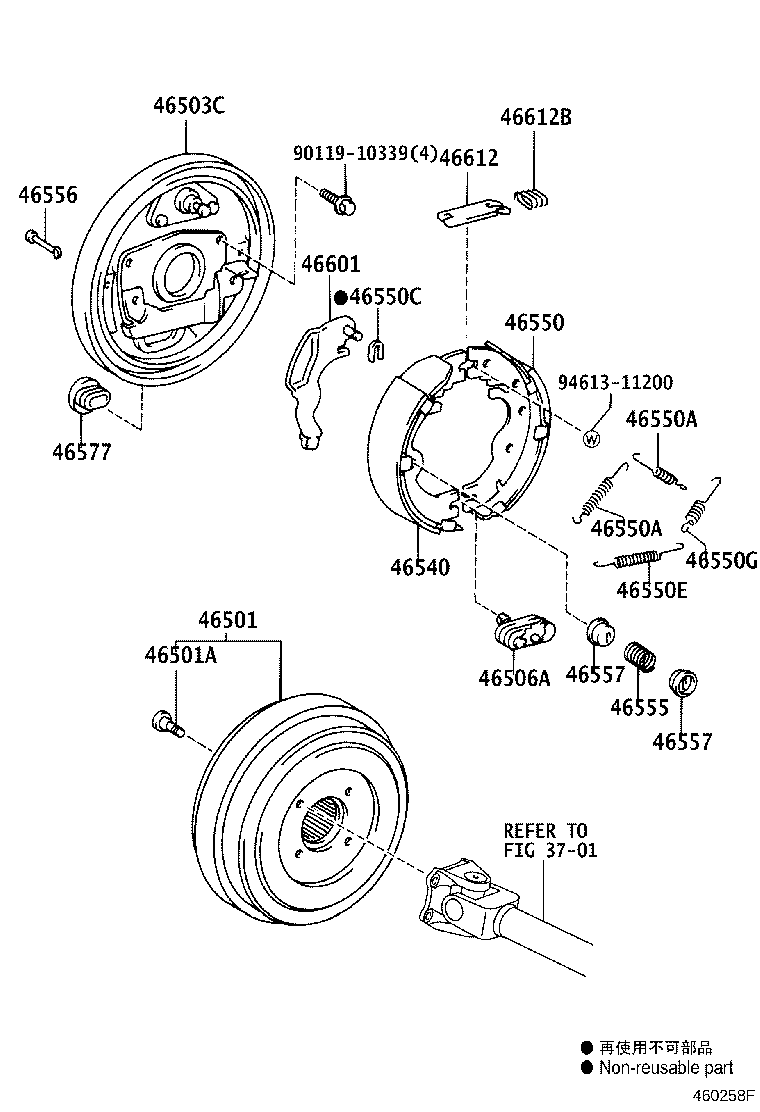

ILLUST NO. 2 OF 2(0209-0612)BU303,343,WU300,340..IDN ; (0212-0610)65T..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37060 |
WU30#,34#..GCC,GEN |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
WU30#,34#..GCC,GEN |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37681 |
WU302,342..GEN |
1 | ||
| 46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46506-36010 |
WU30#,34#..GCC,GEN |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-37030 |
WU30#,34#..GCC,GEN |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-37030 |
WU30#,34#..GCC,GEN |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
WU30#,34#..GCC,GEN |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
WU30#,34#..GCC,GEN |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
WU30#,34#..GCC,GEN |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14012 |
WU30#,34#..GCC,GEN |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16025 |
WU30#,34#..GCC,GEN |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-22010 |
WU30#,34#..GCC,GEN |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
WU30#,34#..GCC,GEN |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
WU30#,34#..GCC,GEN |
4 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
WU30#,34#..GCC,GEN |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-37680 |
WU30#,34#..GCC,GEN |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36010 |
WU30#,34#..GCC,GEN |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
WU30#,34#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-10339 | ||||
| 94613-11200 | ||||
| Linked diagrams | ||||
| 3701 | ||||
ILLUST NO. 1 OF 2(0610- )WU30#,34#,XZU307,337..LHD..48T,55T,65T
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37032B0 |
WU30#,34#..LHD DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37600 |
WU30#,34#..LHD |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
WU30#,34#..GCC,GEN |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14003 |
WU30#,34#..GCC,GEN |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
WU30#,34#..GCC,GEN |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
WU30#,34#..GCC,GEN |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37570 |
WU302,342..GEN |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
WU30#,34#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90461-08225 | ||||
| 91651-40814 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| Linked diagrams | ||||
| 8401 | ||||
