WU342L-TKMQB (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )W04D..WU300,340..GCC,GEN,SA ; (0610-)W04D..WU302,342..DCRTH,DCRTJ

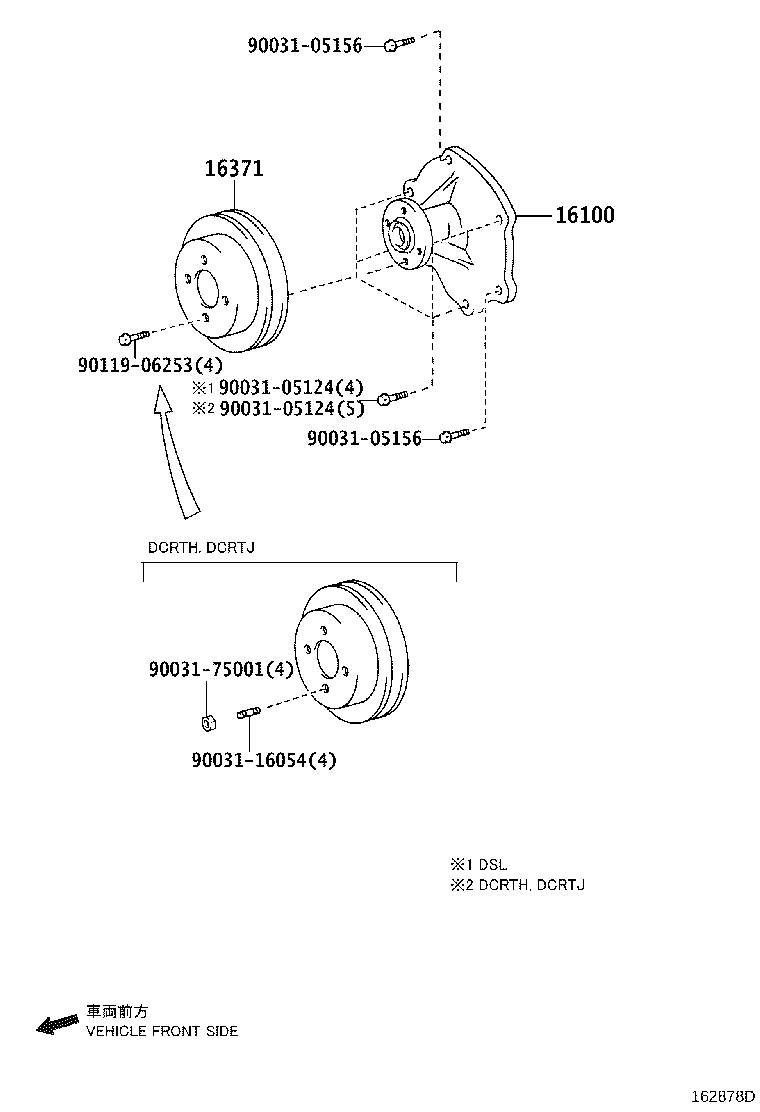

Click highlighted areas on diagram

diagram 16100 16371 9003105124 9003105124 9003105156 9003105156 9003116054 9003175001 9011906253
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-78100

W04D..WU302,342..GEN

 1
16100-78101

W04D..WU302,342..GEN

 1
16371 - PULLEY, FAN
16173-78020

W04D..WU302,342..DCRTH,DCRTJ

 1
Common parts
90031-05124
90031-05156
90031-16054
90031-75001
90119-06253
