WU342L-TKMMB3 (2006)
Toyota Dyna
ILLUST NO. 2 OF10(0209-0612)BU303,343 ; (0209- )WU302..IDN ; (0209- )WU300,34#,352..DCRTH,DCRT
TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37020 |
WU302,342..GEN |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37020 |
WU302,342..GEN |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37020 |
WU302,342..GEN |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
ILLUST NO. 1 OF10(0209-0612)BU30#,34#,XZU300,320,330,340
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-37020 |
WU30#,34#..GCC,GEN |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-37030 |
WU30#,34#..GCC,GEN |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-37040 |
WU30#,34#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90430-16010 | ||||
| 91651-60614 | ||||

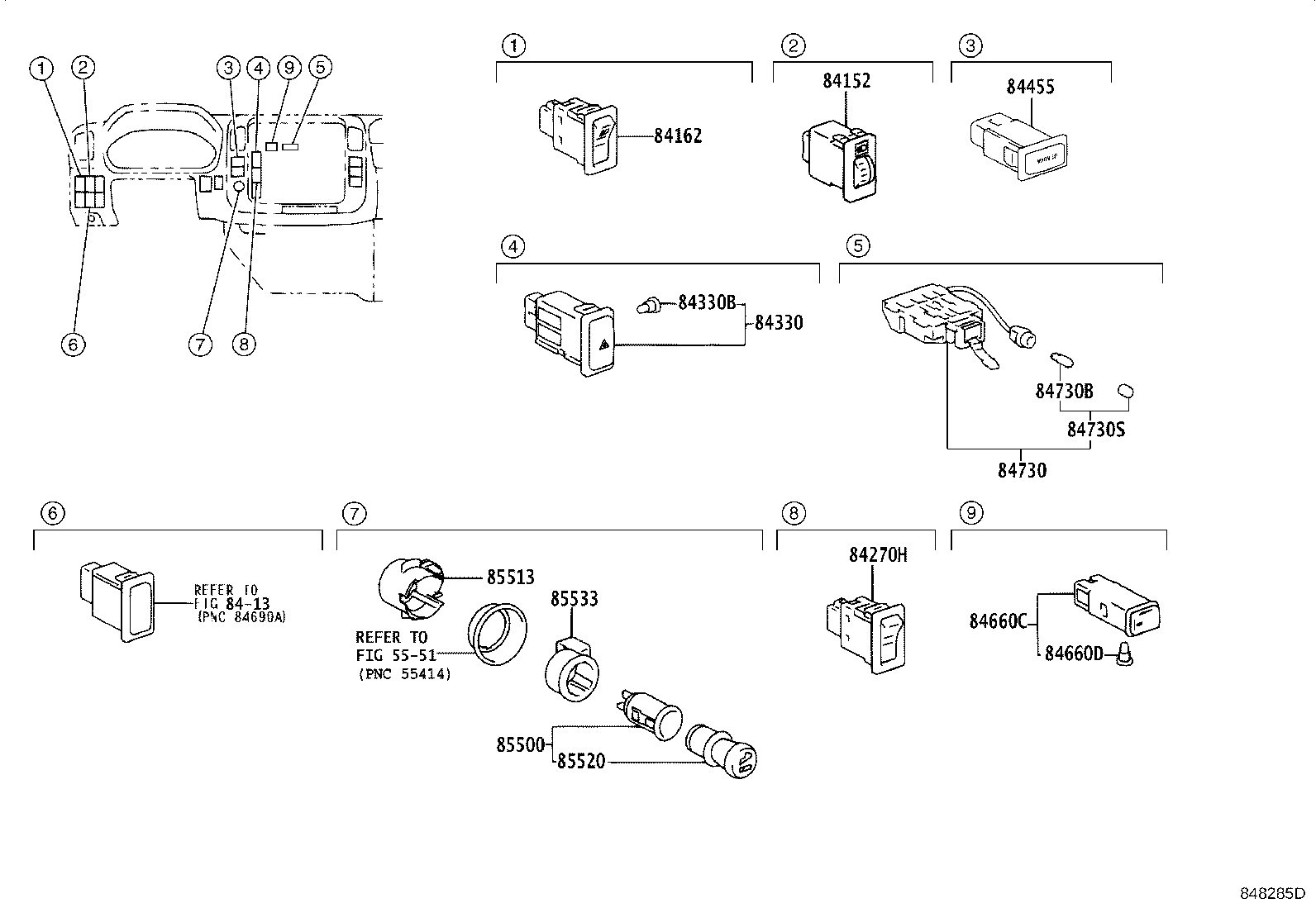

ILLUST NO. 7 OF10(0610-1106)LHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-37030 |
WU30#,34#..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37090 |
WU30#,34#..GCC,GEN |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10570 |
WU30#,34#..GCC,GEN 28V 0.024A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37050 |
WU30#,34#..GCC,GEN |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-16020 |
WU30#,34#..GCC,GEN 24V 1.8W |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01153 |
WU30#,34#..GCC,GEN 24V 1.8W,W(CAP) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
WU30#,34#..GCC,GEN |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
WU30#,34#..GCC,GEN |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
WU30#,34#..GCC,GEN |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
WU30#,34#..GCC,GEN |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 8413 | ||||

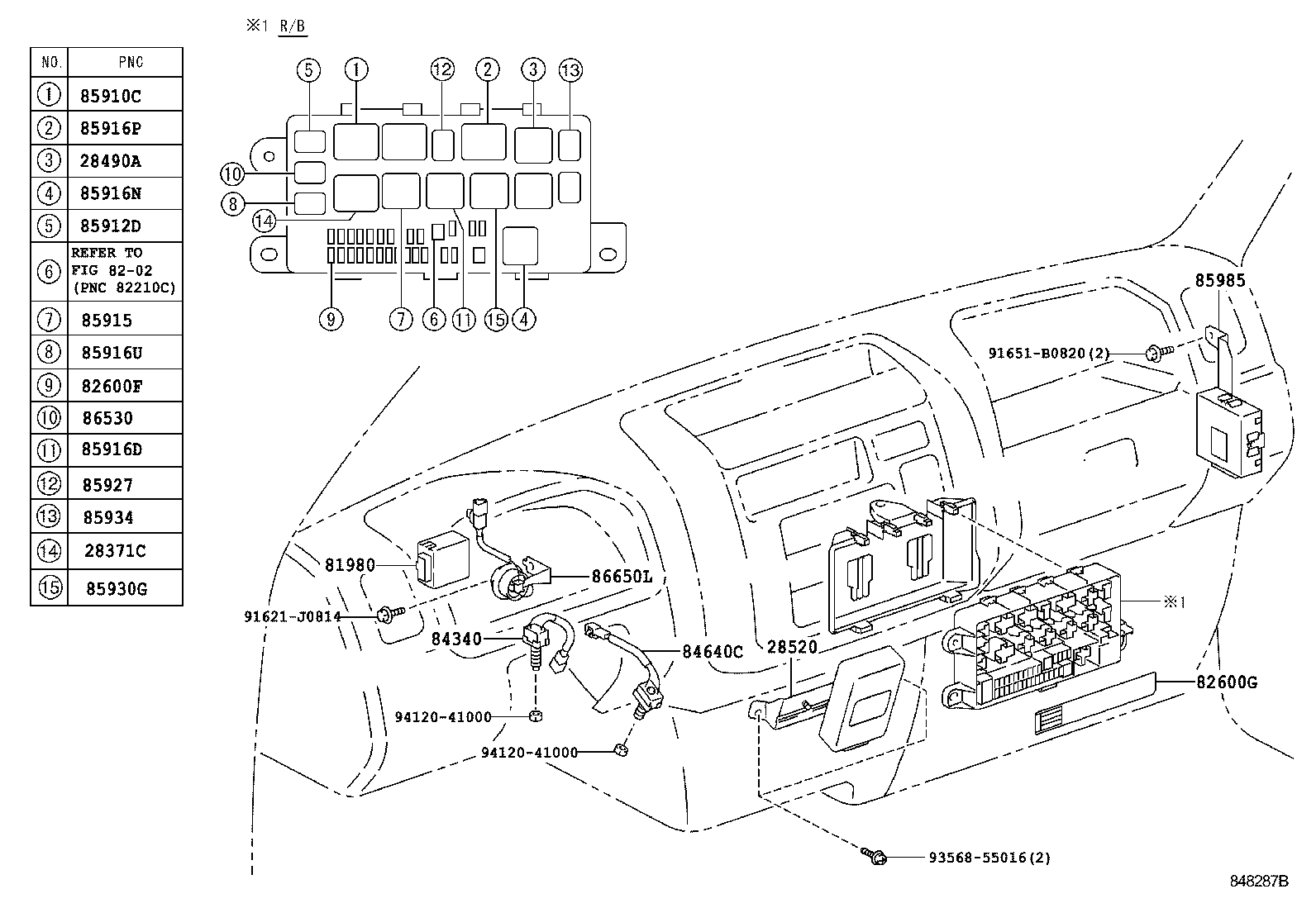

ILLUST NO. 5 OF10(0610-1106)LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02019 |
W04D..WU30#,34#..GEN |
1 | ||
| 28520 - TIMER ASSY, PREHEATING | ||||
| 28520-78030 |
W04D..WU30#,342..GEN;W04D..WU340..GCC,GEN |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37200 |
WU30#,34#..LHD |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
WU30#,34#..GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
WU30#,34#..GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
WU30#,34#..GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
WU30#,34#..GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37400 |
WU30#,34#..GEN ENGLISH & SPANISH |
1 | ||
| 82683-37420 |
WU30#,34#..LHD..GEN ENGLISH & FRENCH |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37020 |
WU30#,34#..GCC,GEN |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37050 |
WU30#,34#..GCC,GEN |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
WU30#,34#..GCC,GEN |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02018 |
WU30#,34#..GCC,GEN |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02018 |
WU30#,34#..GCC,GEN |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02019 |
WU30#,34#..GCC,GEN |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02018 |
WU30#,34#..GEN |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02017 |
WU30#,34#..GCC,GEN |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 86650-37060 |
WU30#,34#,XZU307,327,337,347..GCC,GEN,TAIW |
1 | ||
| 86650-37061 |
WU30#,34#..GCC,GEN |
1 | ||
| Common parts | ||||
| 91621-J0814 | ||||
| 91651-B0820 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8202 | ||||

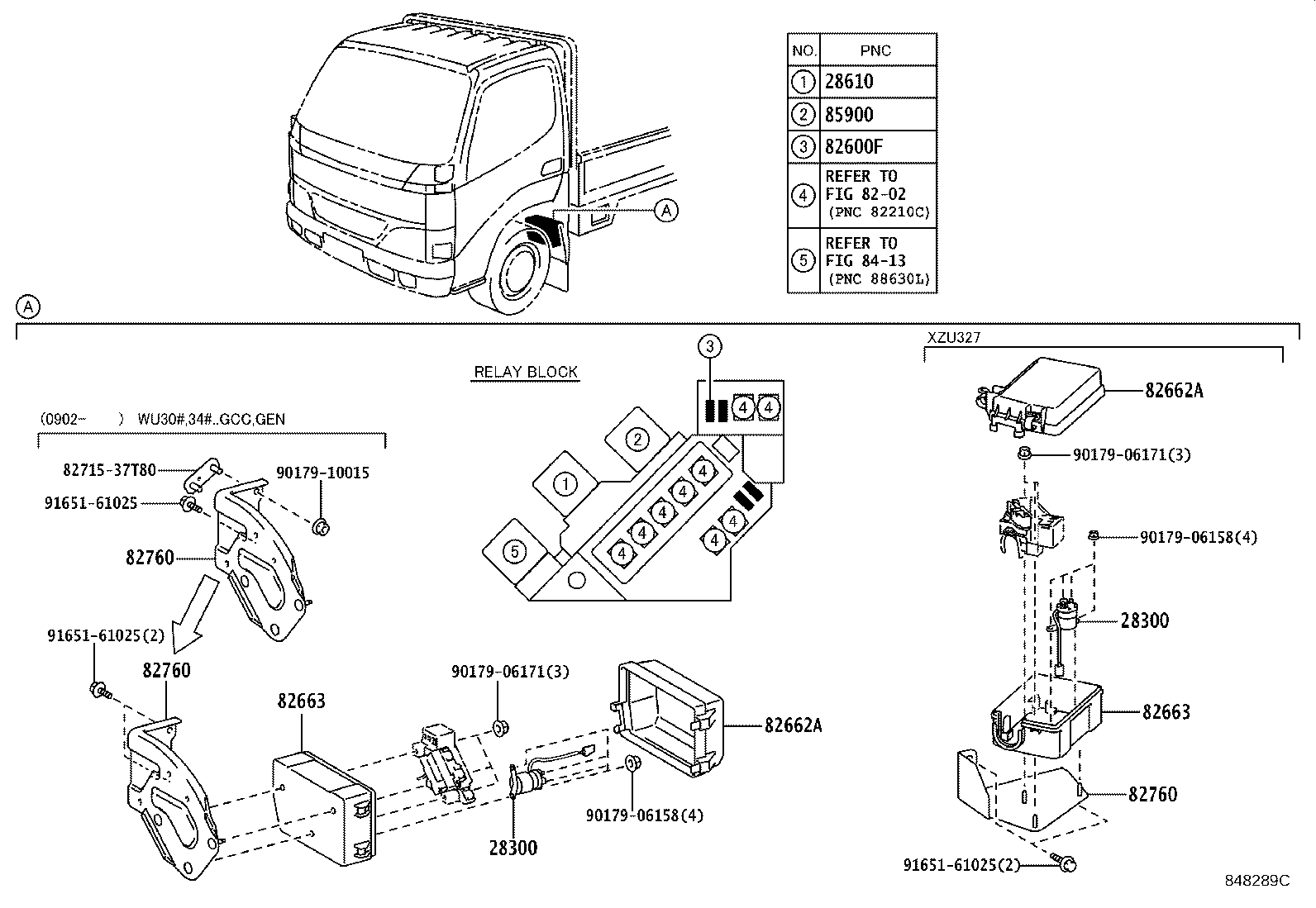

ILLUST NO. 6 OF10(0610- )DCRTH,DCRTJ ; (0610- )WU300,340,XZU307,327,337,347..GCC,GEN,TAIW
R/B NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
W04D..WU30#,342..GEN;W04D..WU340..GCC,GEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
WU30#,34#..GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
WU30#,34#..GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
WU30#,34#..GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
WU30#,34#..GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37330 |
WU30#,34#..GCC,GEN |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37330 |
WU30#,34#..GCC,GEN |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37090 |
WU30#,34#..GCC,GEN |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37090 |
WU30#,34#..GCC,GEN |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37160 |
WU30#,34#,XZU307,337,347..GCC,GEN,SA,TAIW |
1 | ||
| 82760-37161 |
WU30#,34#..GEN..IV3 CKD PACKAGE |
1 | ||
| 82760-37200 |
WU30#,34#..GCC,GEN |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37160 |
WU30#,34#,XZU307,337,347..GCC,GEN,SA,TAIW |
1 | ||
| 82760-37161 |
WU30#,34#..GEN..IV3 CKD PACKAGE |
1 | ||
| 82760-37200 |
WU30#,34#..GCC,GEN |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37160 |
WU30#,34#,XZU307,337,347..GCC,GEN,SA,TAIW |
1 | ||
| 82760-37161 |
WU30#,34#..GEN..IV3 CKD PACKAGE |
1 | ||
| 82760-37200 |
WU30#,34#..GCC,GEN |
1 | ||
| Common parts | ||||
| 82715-37T80 | ||||
| 90179-06158 | ||||
| 90179-06171 | ||||
| 90179-10015 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8413 | ||||
ILLUST NO. 8 OF10(0209-0612)BU303,343,WU300,340..IDN ; (0212-0610)RHD..ARL,GEN ; (0304-0812)SA ; (06
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80249 |
WU30#,34#,XZU307,327,337,347..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84112-80252 |
WU30#,34#..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84112-80248 |
WU30#,34#..LHD |
1 | ||
| 84112-80257 |
WU30#,34#..LHD |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80249 |
WU30#,34#,XZU307,327,337,347..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84112-80252 |
WU30#,34#..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84112-80248 |
WU30#,34#..LHD |
1 | ||
| 84112-80257 |
WU30#,34#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37061 |
WU30#,34#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37061 |
WU30#,34#..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-37392 |
WU30#,34#..LHD |
1 | ||
| 84310-37222 |
WU30#,34#..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-37392 |
WU30#,34#..LHD |
1 | ||
| 84310-37222 |
WU30#,34#..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
WU30#,34#..GCC,GEN |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
WU30#,34#..GCC,GEN |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-37081 |
WU30#,34#..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84329-37111 |
WU30#,34#..LHD |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-37081 |
WU30#,34#..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84329-37111 |
WU30#,34#..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-37160 |
WU30#,34#..GCC,GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84450-37120 |
WU30#,34#..GCC,GEN |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-37160 |
WU30#,34#..GCC,GEN W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84450-37120 |
WU30#,34#..GCC,GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37182 |
WU30#,34#..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84652-37262 |
WU30#,34#..LHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37182 |
WU30#,34#..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84652-37262 |
WU30#,34#..LHD |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 82716-37241 | ||||
| 90080-46104 | ||||
| 90168-40129 | ||||
| 90463-15003 | ||||
| 90464-00551 | ||||
| 91611-G0612 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
