WU342L-TKMMB3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

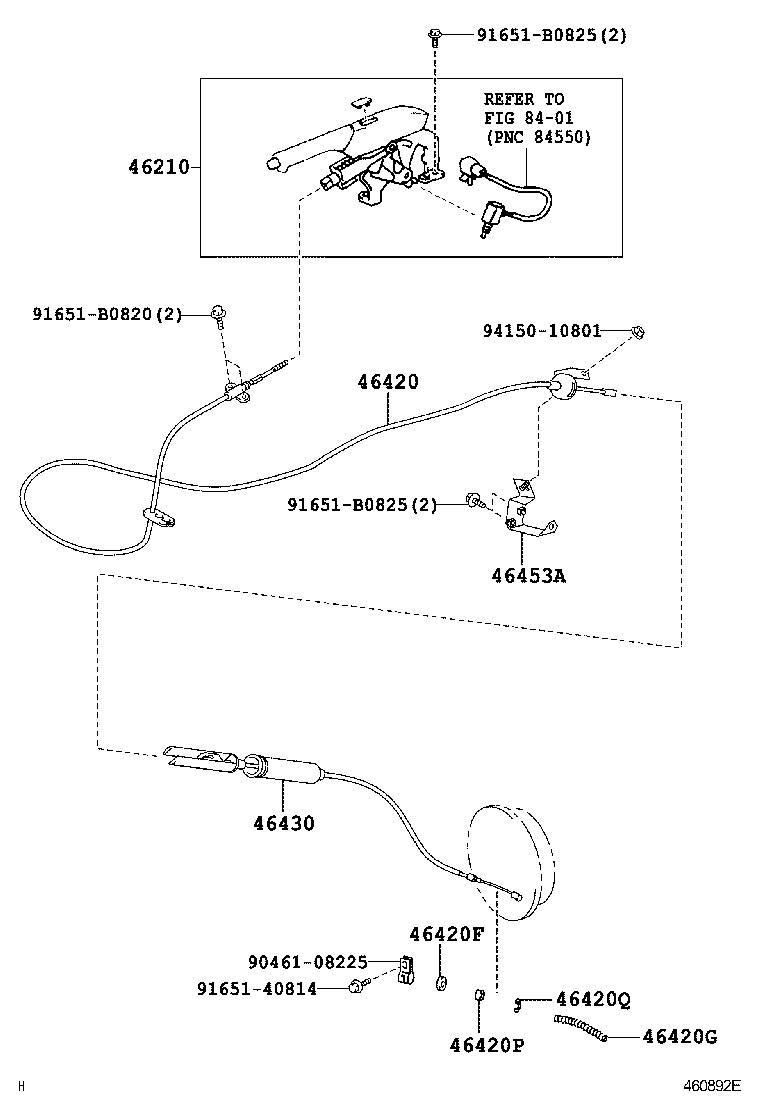

ILLUST NO. 1 OF 2(0610- )WU30#,34#,XZU307,337..LHD..48T,55T,65T

Click highlighted areas on diagram

diagram 46210 46420 46420F 46420G 46420P 46420Q 46430 46453A 8401 9046108225 9165140814 91651B0820 91651B0825 91651B0825 9415010801
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-37032B0

WU30#,34#..LHD

DK.CHARCOAL,TRIM1#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37600

WU30#,34#..LHD

 1
46420F - SEAL, DUST(FOR PARKING BRAKE CABLE)
90303-10001

WU30#,34#..GCC,GEN

 1
46420G - SPRING(FOR PARKING CABLE INNER WIRE SET)
90501-14003

WU30#,34#..GCC,GEN

 1
46420P - SPACER, PARKING BRAKE
90560-08002

WU30#,34#..GCC,GEN

 1
46420Q - RING, E(FOR PARKING BRAKE CABLE)
96160-00700

WU30#,34#..GCC,GEN

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37570

WU302,342..GEN

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37190

WU30#,34#..GCC,GEN

 1
Common parts
90461-08225
91651-40814
91651-B0820
91651-B0825
94150-10801
Linked diagrams
8401
