WU342L-TKMMB3 (2006)
Toyota Dyna
Production
Oct 2006
-
Jun 2011
Engine
W04D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )DCRTJ,DCRTR..CBU,IV3..T3 ; (0610-)WU302,XZU307,337..LHD..48T,55T,65T

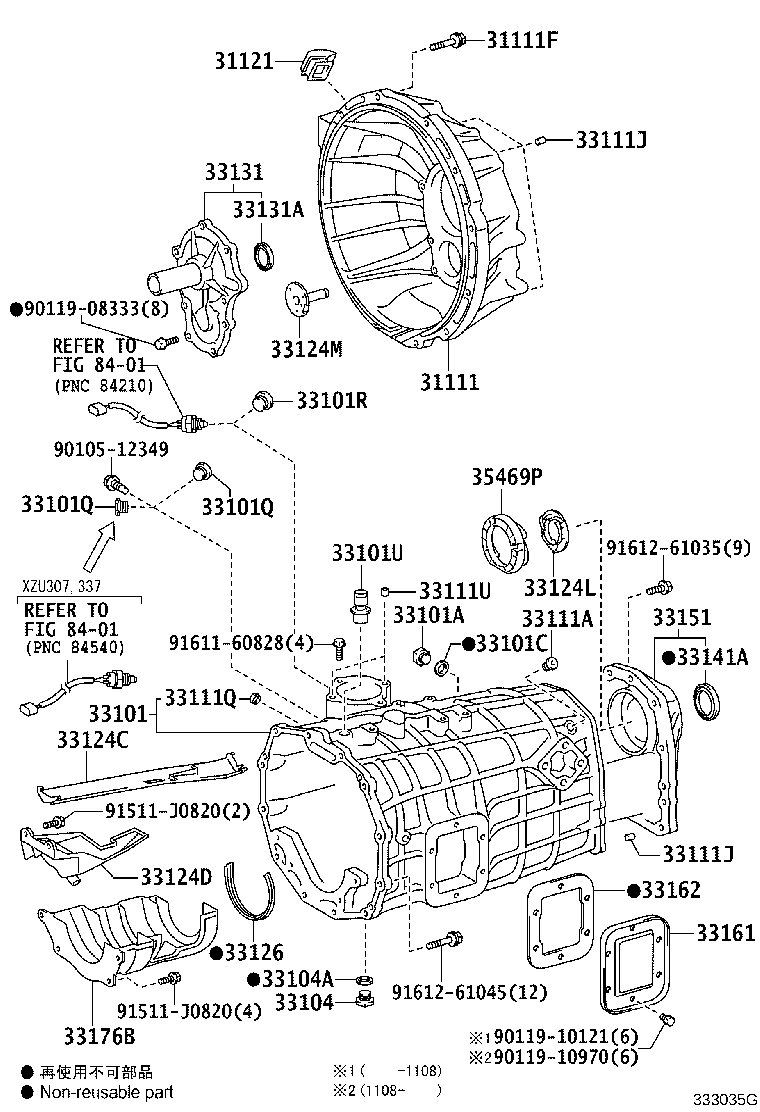

Click highlighted areas on diagram
M550
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-37100 |
WU302,342..GEN |
1 | ||
| 31111F - BOLT(FOR CLUTCH HOUSING & ENGINE SETTING) | ||||
| 90119-10898 |
WU30#,34#..GCC,GEN |
12 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
WU302,342..GEN |
1 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-36130 |
WU302,342..GEN |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
WU302,342..GEN |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
WU302,342..GEN |
1 | ||
| 33101Q - PLUG, NO.1(FOR TRANSMISSION CASE) | ||||
| 90341-16013 |
WU302,342..GEN |
2 | ||
| 33101Q - PLUG, NO.1(FOR TRANSMISSION CASE) | ||||
| 90341-16013 |
WU302,342..GEN |
2 | ||
| 33101R - PLUG, NO.2(FOR TRANSMISSION CASE) | ||||
| 90341-18039 |
WU302,342..GEN |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
WU302,342..GEN |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
WU302,342..GEN |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
WU30#,34#..GCC,GEN |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-14008 |
WU302,342..GEN |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10232 |
WU302,342..GEN L=15,OD=8 |
5 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10232 |
WU302,342..GEN L=15,OD=8 |
5 | ||
| 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-13001 |
WU302,342..GEN |
1 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11021 |
WU302,342..GEN L=8,OD=11 |
2 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-37020 |
WU302,342..GEN |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-37030 |
WU302,342..GEN |
1 | ||
| 33124L - PIPE, OIL RECEIVER, N0.3(MTM) | ||||
| 33124-37040 |
WU302,342..GEN |
1 | ||
| 33124M - PIPE, OIL RECEIVER, N0.4(MTM) | ||||
| 33124-37050 |
WU302,342..GEN |
1 | ||
| 33126 - SEAL, OIL RECEIVER | ||||
| 33126-37010 |
WU302,342..GEN |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-37050 |
WU302,342..GEN |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-35023 |
WU30#,34#..GCC,GEN |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-48011 |
WU30#,34#..GCC,GEN |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-37030 |
WU302,342..GEN |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
WU30#,34#..GCC,GEN |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
WU30#,34#..GCC,GEN |
1 | ||
| 33176B - SEPARATOR, TRANSMISSION OIL(MTM) | ||||
| 33176-37010 |
WU302,342..GEN |
1 | ||
| 35469P - SPACER (FOR TRANSMISSION REAR RETAINER) | ||||
| 35469-37010 |
WU302,342..GEN |
1 | ||
| Common parts | ||||
| 90105-12349 | ||||
| 90119-08333 | ||||
| 90119-10121 | ||||
| 90119-10970 | ||||
| 91511-J0820 | ||||
| 91611-60828 | ||||
| 91612-61035 | ||||
| 91612-61045 | ||||
| Linked diagrams | ||||
| 8401 | ||||
