WU342L-TKMMB3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

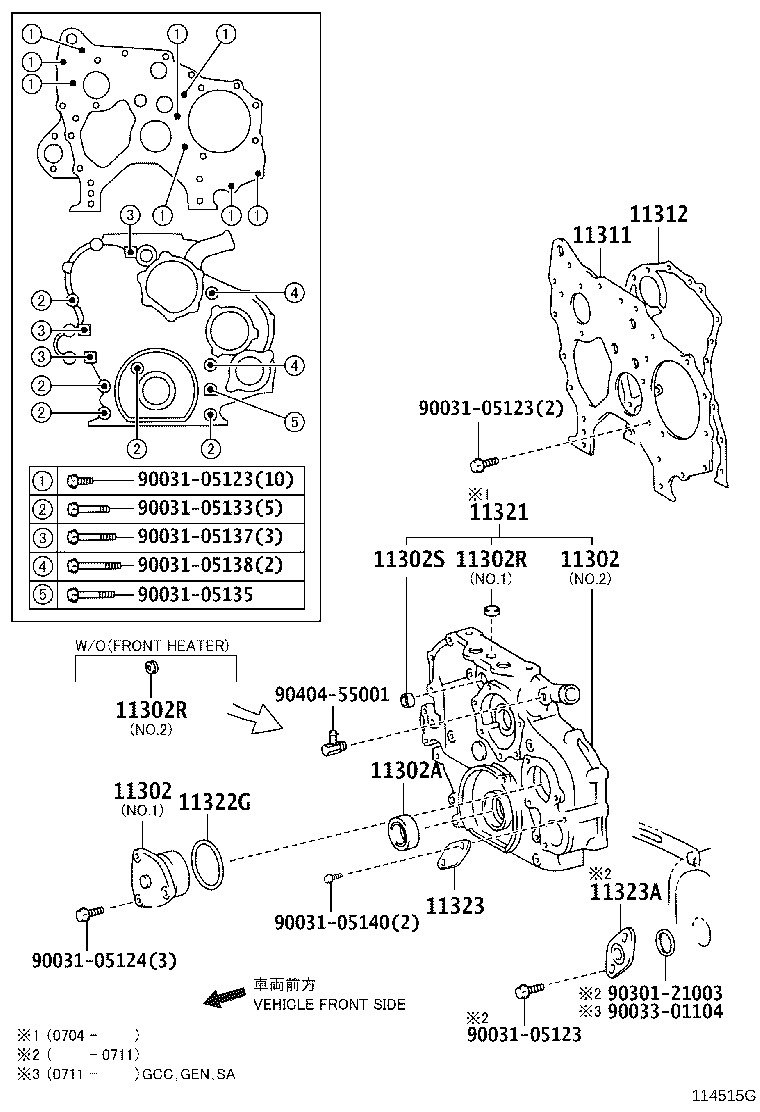

ILLUST NO. 1 OF 2(0610-1106)W04D..WU300,340..GCC,GEN,SA ; (0610-1106)W04D..WU302,342..DCRTH,DCRTJ

Click highlighted areas on diagram

diagram 11302 11302 11302A 11302R 11302R 11302S 11311 11312 11321 11322G 11323 11323A 9003105123 9003105123 9003105123 9003105124 9003105133 9003105135 9003105137 9003105138 9003105140 9003301104 9030121003 9040455001
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-78050

W04D..WU302,342..GEN

NO.1

 1
11321-78072

W04D..WU302,342..GEN

NO.2

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-78050

W04D..WU302,342..GEN

NO.1

 1
11321-78072

W04D..WU302,342..GEN

NO.2

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90033-11040

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 1
11302R - PLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)
90331-22002

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

NO.1

 1
90033-31030

W04D..WU30#,34#..GCC,GEN

NO.2

 1
11302R - PLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)
90331-22002

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

NO.1

 1
90033-31030

W04D..WU30#,34#..GCC,GEN

NO.2

 1
11302S - PLUG, TIGHT, NO.2(FOR TIMING GEAR COVER)
90331-32002

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 1
11311 - PLATE, FRONT END
11355-78030

W04D..WU302,342..GEN

 1
11312 - GASKET, FRONT END PLATE
11312-78011

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 1
11321 - CASE, TIMING GEAR
11310-78030

W04D..WU302,342..GEN

 1
11322G - RING, O(FOR TIMING GEAR COVER)
90301-81003

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 1
11323 - COVER, TIMING GEAR, NO.3
11323-78010

W04D..WU300,340..GCC,GEN;W04D..WU302,342..DCRTH,DCRTJ

 1
11323A - RETAINER, TIMING GEAR COVER OIL
11323-78030

W04D..WU30#,34#..GCC,GEN,SA

 1
11323-78020

W04D..WU30#,34#..GCC,GEN

 1
Common parts
90031-05123
90031-05124
90031-05133
90031-05135
90031-05137
90031-05138
90031-05140
90033-01104
90301-21003
90404-55001

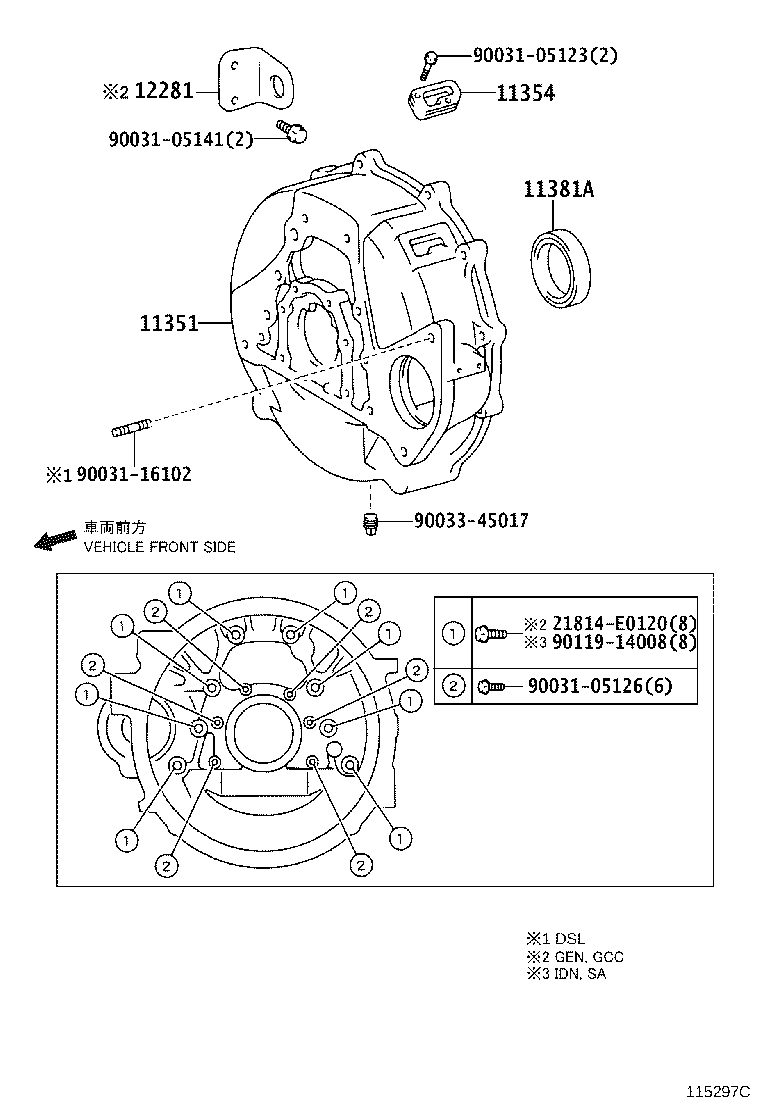

ILLUST NO. 2 OF 2(0610-1106)W04D..WU300,340..GCC,GEN,SA ; (0610-1106)W04D..WU302,342..DCRTH,DCRTJ

Click highlighted areas on diagram

diagram 11351 11354 11381A 12281 21814E0120 9003105123 9003105126 9003105141 9003116102 9003345017 9011914008
Part # Description Qty Price
11351 - HOUSING, FLYWHEEL
11351-78042

W04D..WU302,342..GEN

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-78040

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 1
11381A - SEAL, ENGINE REAR OIL
90311-99002

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 1
12281 - HANGER, ENGINE, NO.1
12281-78010

W04D..WU302,342..GEN

 1
Common parts
21814-E0120
90031-05123
90031-05126
90031-05141
90031-16102
90033-45017
90119-14008
