WU342L-TKMMB (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )DCRTJ,DCRTR..CBU,IV3..T3 ; (0610-)WU302,XZU307,337..LHD..48T,55T,65T

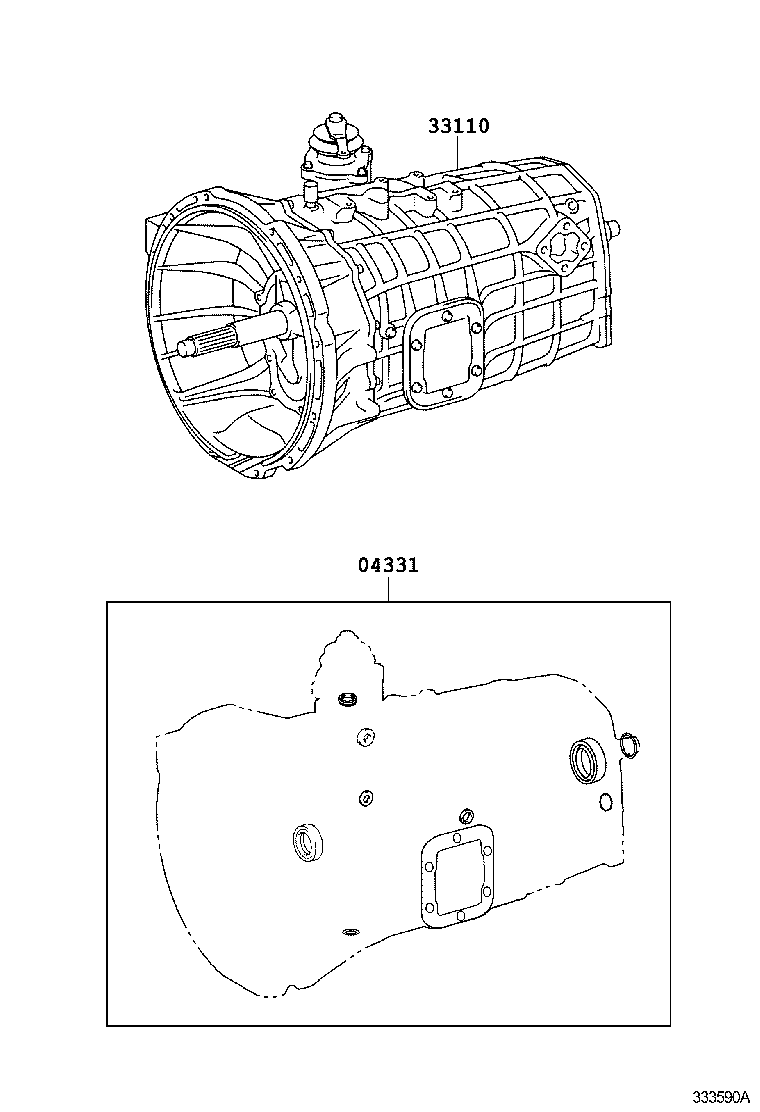

Click highlighted areas on diagram

M550

diagram 04331 33110
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-37121

WU302,342..GEN

 1
33110 - TRANSMISSION ASSY, MANUAL
33110-37D90

WU302,342..55T;WU342..65T..DCRTJ..IDN

M550,W(DRIVEN GEAR N=23)

 1
33110-37D82

WU302,342..(48T,55T)..GEN

M550

 1
33110-37D92

WU302,342..55T

M550,W(DRIVEN GEAR N=23)

 1
33110-37D80

WU342..65T..DCRTJ..IDN;WU302,342..(48T,55T)..GEN

M550

 1
