WU342L-TKMMB (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )W04D..WU30#,34#..GCC,GEN,SA ; (0612-0907)W04D..WU302,342..IDN

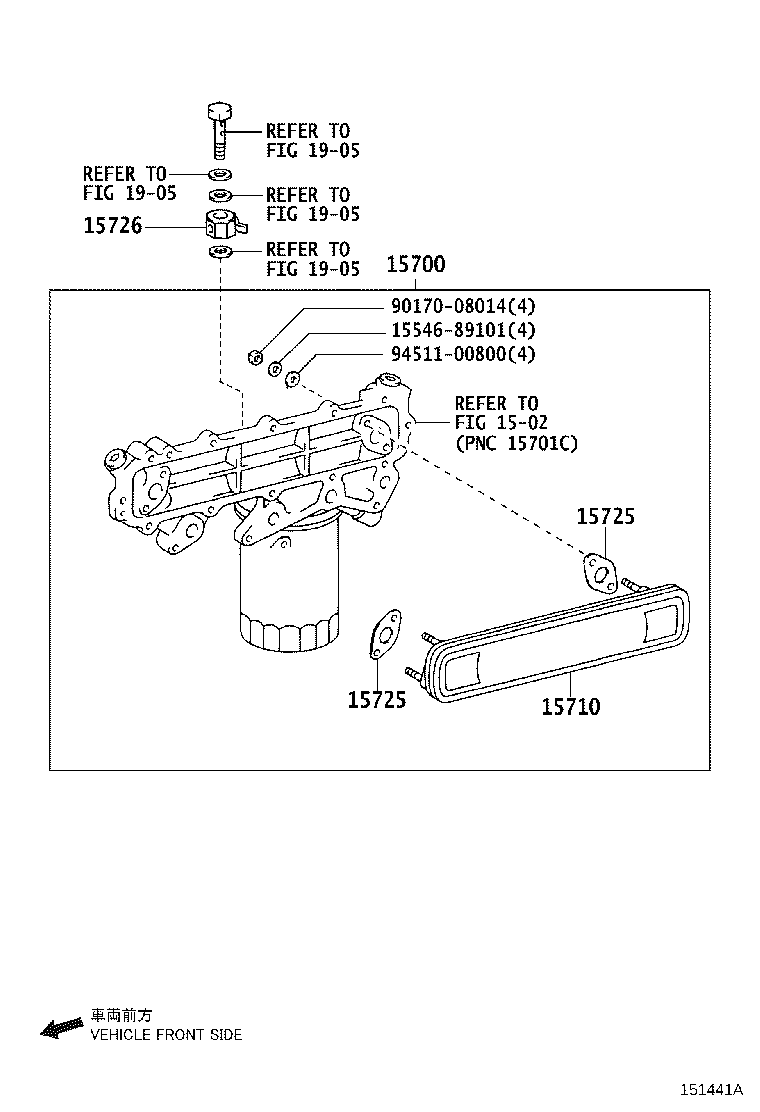

Click highlighted areas on diagram

diagram 1502 1554689101 15700 15710 15725 15725 15726 1905 1905 1905 1905 9017008014 9451100800
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-78160

W04D..WU302,342

 1
15700-78161

W04D..WU302,342

 1
15700-78163

W04D..WU302,342..GEN

 1
15700-78162

W04D..WU302,342

 1
15710 - COOLER ASSY, OIL
15710-78050

W04D..WU302,342..GEN

 1
15725 - GASKET, OIL COOLER COVER
15725-78020

W04D..WU30#,34#..GCC,GEN,SA

 2
15725 - GASKET, OIL COOLER COVER
15725-78020

W04D..WU30#,34#..GCC,GEN,SA

 2
15726 - CONNECTOR, OIL COOLER UNION BOLT
15726-78010

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 1
90404-10024

W04D..WU30#,34#..DCRTH,DCRTJ,DSL

 1
Common parts
15546-89101
90170-08014
94511-00800
Linked diagrams
1502
1905
