8103 - FRONT TURN SIGNAL LAMP

WU340R-TKMRSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006

Engine W04D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0212- )XZU300,320,330,340

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-37101	XZU300,320,330,340	12/2002 - 10/2006	1
81510-0W040	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-16014	XZU300,320,330,340 24V 21W,NO.1	12/2002 - 10/2006	2
90981-16017	XZU300,320,330,340 24V 10W,NO.2	12/2002 - 10/2006	2
90981-16014	BU303,343,WU300,340,XZU342..IDN 24V 21W	09/2002 - 12/2006	2
90080-81117	BU303,343,WU300,340,XZU342..IDN 24V 5W,NO.2	09/2002 - 12/2006	2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-16014	XZU300,320,330,340 24V 21W,NO.1	12/2002 - 10/2006	2
90981-16017	XZU300,320,330,340 24V 10W,NO.2	12/2002 - 10/2006	2
90981-16014	BU303,343,WU300,340,XZU342..IDN 24V 21W	09/2002 - 12/2006	2
90080-81117	BU303,343,WU300,340,XZU342..IDN 24V 5W,NO.2	09/2002 - 12/2006	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-0W040	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
81511-37100	XZU300,320,330,340	12/2002 - 10/2006	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-0W040	BU303,343,WU300,340,XZU342..IDN RH	09/2002 - 12/2006	1
81525-0W040	BU303,343,WU300,340,XZU342..IDN LH	09/2002 - 12/2006	1
81515-37100	XZU300,320,330,340	12/2002 - 10/2006	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-0W040	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
81520-37101	XZU300,320,330,340	12/2002 - 10/2006	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-37100	XZU300,320,330,340	12/2002 - 10/2006	1
81521-0W040	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
Common parts
90075-02043
90189-05142
90189-06111

(0209- )DCRTH,DCRTJ,DSL..IDN

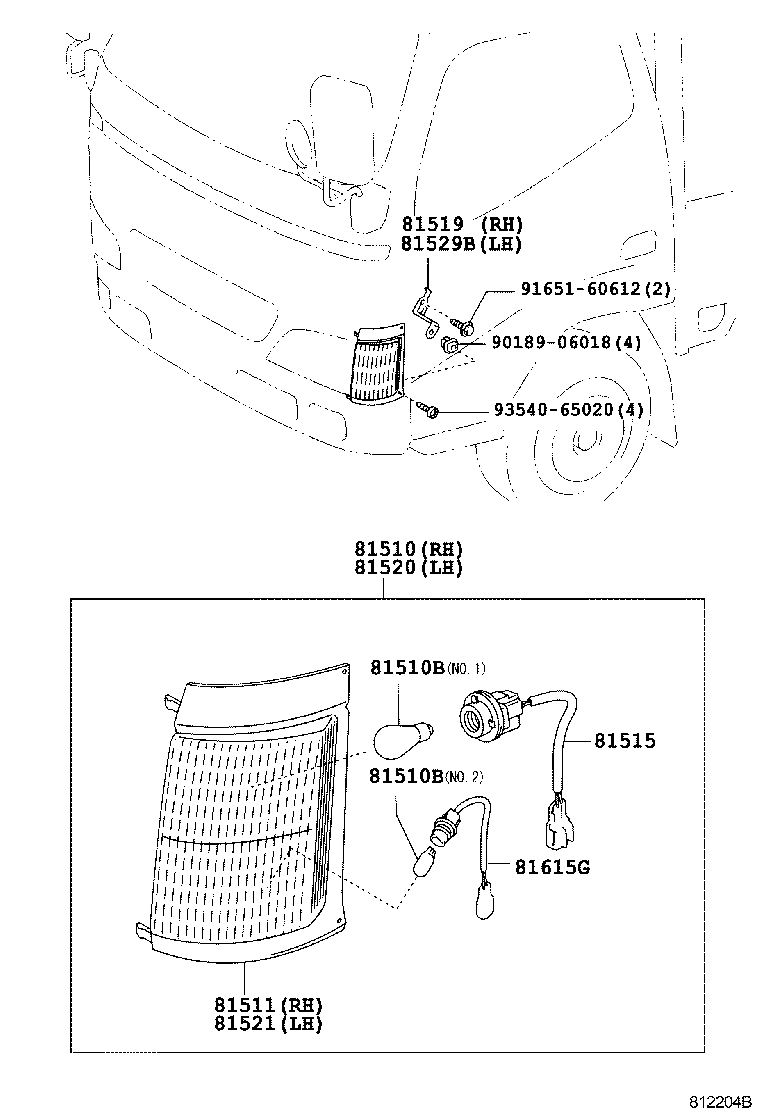

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-37101	XZU300,320,330,340	12/2002 - 10/2006	1
81510-0W040	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-16014	XZU300,320,330,340 24V 21W,NO.1	12/2002 - 10/2006	2
90981-16017	XZU300,320,330,340 24V 10W,NO.2	12/2002 - 10/2006	2
90981-16014	BU303,343,WU300,340,XZU342..IDN 24V 21W	09/2002 - 12/2006	2
90080-81117	BU303,343,WU300,340,XZU342..IDN 24V 5W,NO.2	09/2002 - 12/2006	2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-16014	XZU300,320,330,340 24V 21W,NO.1	12/2002 - 10/2006	2
90981-16017	XZU300,320,330,340 24V 10W,NO.2	12/2002 - 10/2006	2
90981-16014	BU303,343,WU300,340,XZU342..IDN 24V 21W	09/2002 - 12/2006	2
90080-81117	BU303,343,WU300,340,XZU342..IDN 24V 5W,NO.2	09/2002 - 12/2006	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-0W040	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
81511-37100	XZU300,320,330,340	12/2002 - 10/2006	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-0W040	BU303,343,WU300,340,XZU342..IDN RH	09/2002 - 12/2006	1
81525-0W040	BU303,343,WU300,340,XZU342..IDN LH	09/2002 - 12/2006	1
81515-37100	XZU300,320,330,340	12/2002 - 10/2006	2
81519 - BRACKET, FRONT TURN SIGNAL LAMP, RH
81519-0W040	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-0W040	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
81520-37101	XZU300,320,330,340	12/2002 - 10/2006	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-37100	XZU300,320,330,340	12/2002 - 10/2006	1
81521-0W040	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
81529B - BRACKET, FRONT TURN SIGNAL LAMP, LH
81529-0W040	BU303,343,WU300,340,XZU342..IDN	09/2002 - 12/2006	1
81615G - SOCKET & WIRE, CLEARANCE LAMP
81615-12590	BU303,343,WU300,340,XZU342..IDN LH	09/2002 - 12/2006	1
Common parts
90189-06018
91651-60612
93540-65020

WU340R-TKMRSD3 (2002)

(0212- )XZU300,320,330,340

(0209- )DCRTH,DCRTJ,DSL..IDN
