WU340R-TKMRSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )DCRTH,DCRTJ,DSL..IDN

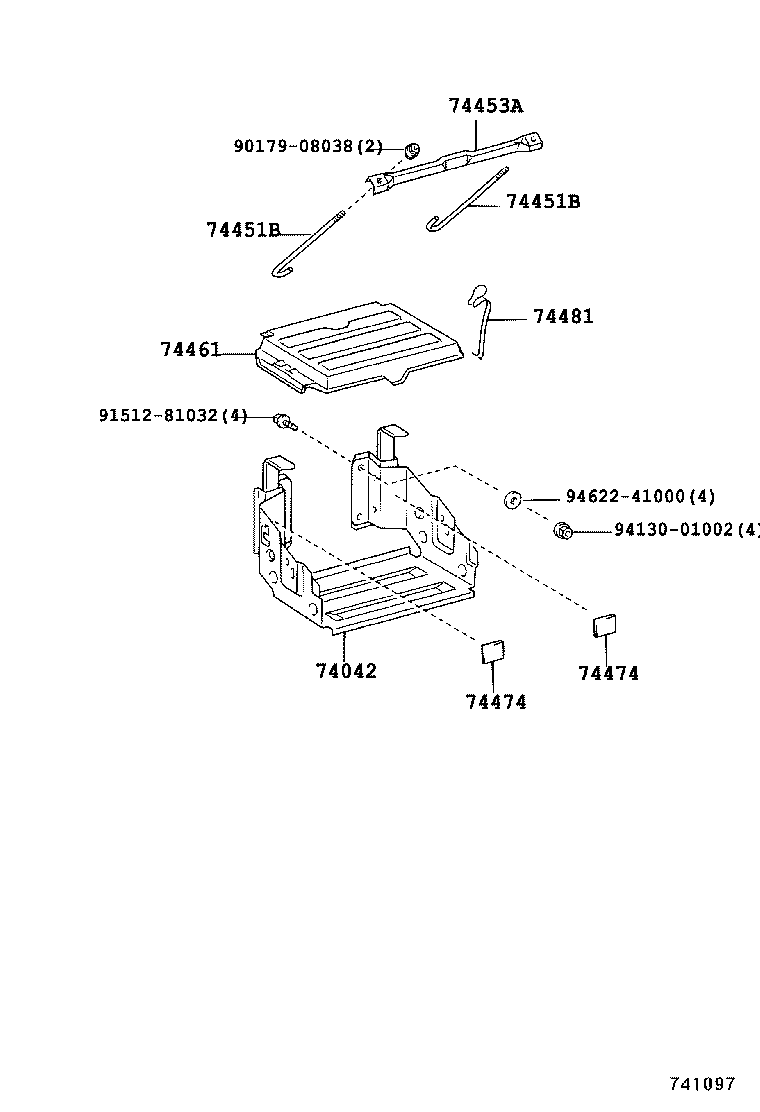

Click highlighted areas on diagram

diagram 74042 74451B 74451B 74453A 74461 74474 74474 74481 9017908038 9151281032 9413001002 9462241000
Part # Description Qty Price
74042 - BRACKET SUB-ASSY, BATTERY
74042-0W010

BU303,343,WU300,340,XZU342..IDN

 1
74042-37040

BU300,340

BATTERY=55D23L X2

 1
74042-37050

BU300,340

BATTERY=95D31L X 2

 1
74042-0W011

BU303,343,WU300,340,XZU342..IDN

 1
74451B - BOLT, BATTERY CLAMP
74451-37011

BU300,340

BATTERY=55D23L X2

 2
74451-37021

BU300,340

BATTERY=95D31L X 2

 2
74451-0W010

BU303,343,WU300,340,XZU342..IDN

 2
74451B - BOLT, BATTERY CLAMP
74451-37011

BU300,340

BATTERY=55D23L X2

 2
74451-37021

BU300,340

BATTERY=95D31L X 2

 2
74451-0W010

BU303,343,WU300,340,XZU342..IDN

 2
74453A - BAR, BATTERY SET PLATE
74453-36070

BU300,340

 1
74453-0W010

BU303,343,WU300,340,XZU342..IDN

 1
74461 - COVER, BATTERY
74461-37020

BU300,340

BATTERY=55D23L X2

 1
74461-0W010

BU303,343,WU300,340,XZU342..IDN

 1
74461-37030

BU300,340

BATTERY=95D31L X 2

 1
74474 - PAD, BATTERY
74475-36040

BU300,340

 2
74475-36040

BU303,343,WU300,340,XZU342..IDN

 2
74474 - PAD, BATTERY
74475-36040

BU300,340

 2
74475-36040

BU303,343,WU300,340,XZU342..IDN

 2
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030

BU300,340

 2
74481-0W010

BU303,343,WU300,340,XZU342..IDN

 2
Common parts
90179-08038
91512-81032
94130-01002
94622-41000
