WU340R-TKMRSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0212-0312)BU300,340

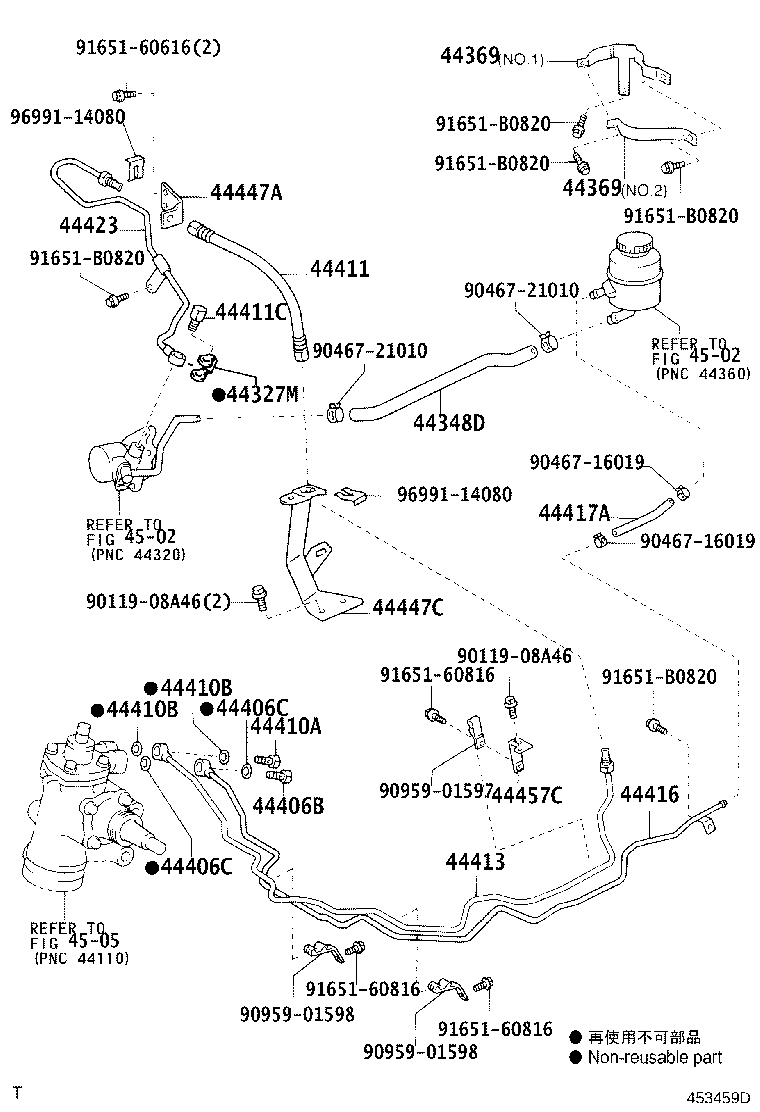

Click highlighted areas on diagram

diagram 44327M 44348D 44369 44369 44406B 44406C 44406C 44410A 44410B 44410B 44411 44411C 44413 44416 44417A 44423 44447A 44447C 44457C 4502 4502 4505 9011908A46 9011908A46 9046716019 9046716019 9046721010 9046721010 9095901597 9095901598 9095901598 9165160616 9165160816 9165160816 9165160816 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 9699114080 9699114080
Part # Description Qty Price
44327M - GASKET, PRESSURE PORT, NO.2
44327-30030

BU300,340

 1
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-37110

XZU300,320,330,340

 1
44348-37110

BU300,340

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-37040

BU300,340

NO.1

 1
44369-37100

BU300,340

NO.2

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-37040

BU300,340

NO.1

 1
44369-37100

BU300,340

NO.2

 1
44406B - BOLT, UNION(FOR RETURN TUBE)
90401-14003

BU300,340

 1
44406C - GASKET(FOR RETURN TUBE)
90430-14235

BU300,340

 2
44406C - GASKET(FOR RETURN TUBE)
90430-14235

BU300,340

 2
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-14003

BU300,340

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

BU300,340

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

BU300,340

 2
44411 - HOSE, PRESSURE FEED
44411-37141

BU300,340

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90904-01001

BU300,340

 1
90904-01001

XZU300,320,330,340

 1
44413 - TUBE, PRESSURE FEED, NO.1
44413-37180

BU300,340

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-37411

BU300,340

 1
44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)
44412-37120

BU300,340

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-37021

BU300,340

 1
44423-37021

XZU300,320,330,340

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37020

BU300,340

 1
44447C - BRACKET, HOSE SUPPORT NO.2
44447-37061

BU300,340

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-37090

BU300,340

 1
Common parts
90119-08A46
90467-16019
90467-21010
90959-01597
90959-01598
91651-60616
91651-60816
91651-B0820
96991-14080
Linked diagrams
4502
4505
