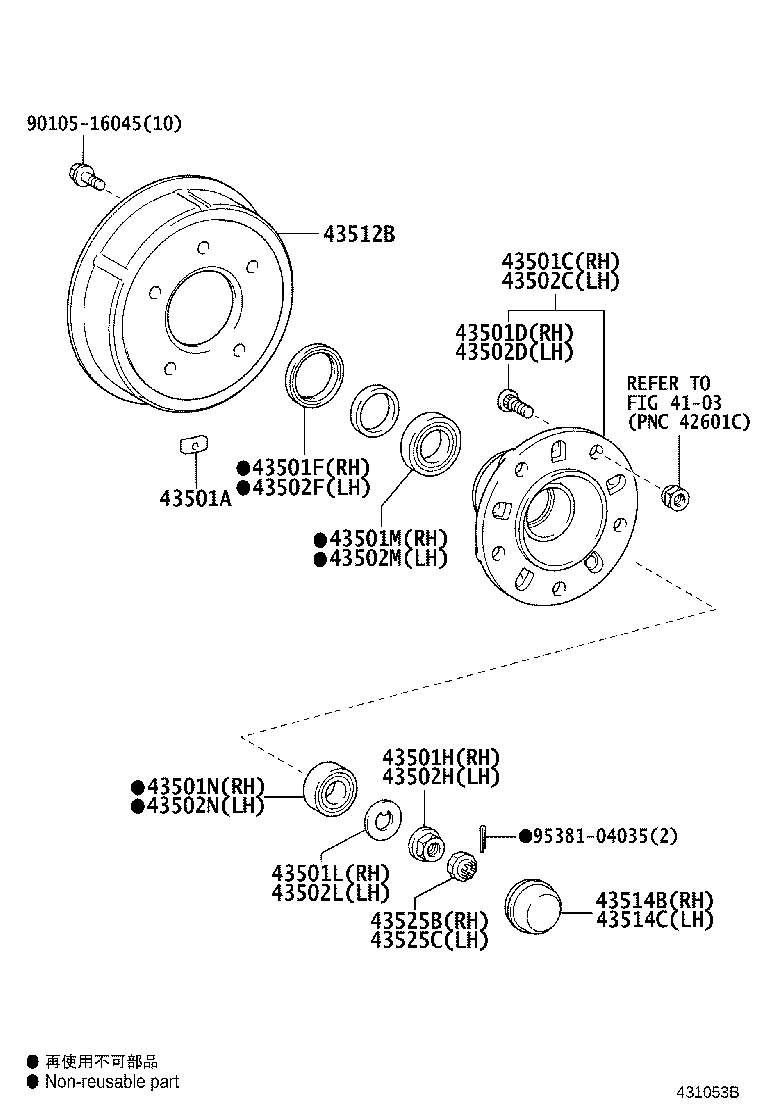

WU340R-TKMRSD3 (2002)
Toyota Dyna
(0209-0612)75T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01120 |
XZU300,320,330,340 40G |
1 | ||
| 90937-01119 |
XZU300,320,330,340 30G |
1 | ||
| 90937-01117 |
XZU300,320,330,340 10G |
1 | ||
| 90937-01118 |
XZU300,320,330,340 20G |
1 | ||
| 90937-01121 |
XZU300,320,330,340 50G |
1 | ||
| 90937-01122 |
XZU300,320,330,340 60G |
1 | ||
| 90937-01117 |
WU340,XZU342..IDN 10G |
1 | ||
| 90937-01121 |
WU340,XZU342..IDN 50G |
1 | ||
| 90937-01122 |
WU340,XZU342..IDN 60G |
1 | ||
| 90937-01120 |
WU340,XZU342..IDN 40G |
1 | ||
| 90937-01119 |
WU340,XZU342..IDN 30G |
1 | ||
| 90937-01118 |
WU340,XZU342..IDN 20G |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43501-37060 |
BU300,340 |
1 | ||
| 43501-0W020 |
WU340,XZU342..75T |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
WU340,XZU342..IDN |
1 | ||
| 90942-02071 |
BU300,340 |
1 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68002 |
WU340,XZU342;BU303,343,WU300,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 90311-68002 |
BU300,340 |
1 | ||
| 90311-68003 |
WU340,XZU342..IDN |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-28001 |
BU300,340 |
1 | ||
| 90178-28001 |
WU340,XZU342..IDN |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-29001 |
WU340,XZU342..IDN |
1 | ||
| 90214-29001 |
BU300,340 |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-50069 |
BU300,340 |
1 | ||
| 90366-50069 |
WU340,XZU342..IDN |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90366-35105 |
BU300,340 |
1 | ||
| 90366-35105 |
WU340,XZU342..IDN |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-37060 |
BU300,340 |
1 | ||
| 43502-0W020 |
WU340,XZU342..75T |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
BU300,340 |
1 | ||
| 90942-02072 |
WU340,XZU342..IDN |
1 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68002 |
WU340,XZU342;BU303,343,WU300,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 90311-68002 |
BU300,340 |
1 | ||
| 90311-68003 |
WU340,XZU342..IDN |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90178-28001 |
WU340,XZU342..IDN |
1 | ||
| 90178-28001 |
BU300,340 |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-29001 |
BU300,340 |
1 | ||
| 90214-29001 |
WU340,XZU342..IDN |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90366-50069 |
BU300,340 |
1 | ||
| 90366-50069 |
WU340,XZU342..IDN |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90366-35105 |
BU300,340 |
1 | ||
| 90366-35105 |
WU340,XZU342..IDN |
1 | ||
| 43512B - DRUM, BRAKE | ||||
| 43512-0W030 |
WU340,XZU342..75T |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-37030 |
WU340,XZU342..IDN |
1 | ||
| 43514-37030 |
BU300,340 |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37030 |
BU300,340 |
1 | ||
| 43514-37030 |
WU340,XZU342..IDN |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-37010 |
WU340,XZU342..IDN |
1 | ||
| 43525-37010 |
BU300,340 |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-37010 |
BU300,340 |
1 | ||
| 43525-37010 |
WU340,XZU342..IDN |
1 | ||
| Common parts | ||||
| 90105-16045 | ||||
| 95381-04035 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(0209-0610)WU340,XZU342..55T,65T ; (0209-0610)BU30#,34#,WU300,XZU30#,320,330,345..4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01120 |
XZU300,320,330,340 40G |
1 | ||
| 90937-01120 |
XZU300,320,330,340 40G |
1 | ||
| 90937-01119 |
XZU300,320,330,340 30G |
1 | ||
| 90937-01119 |
XZU300,320,330,340 30G |
1 | ||
| 90937-01117 |
XZU300,320,330,340 10G |
1 | ||
| 90937-01117 |
XZU300,320,330,340 10G |
1 | ||
| 90937-01118 |
XZU300,320,330,340 20G |
1 | ||
| 90937-01118 |
XZU300,320,330,340 20G |
1 | ||
| 90937-01121 |
XZU300,320,330,340 50G |
1 | ||
| 90937-01121 |
XZU300,320,330,340 50G |
1 | ||
| 90937-01122 |
XZU300,320,330,340 60G |
1 | ||
| 90937-01122 |
XZU300,320,330,340 60G |
1 | ||
| 90937-01117 |
WU340,XZU342..IDN 10G |
1 | ||
| 90937-01117 |
WU340,XZU342..IDN 10G |
1 | ||
| 90937-01121 |
WU340,XZU342..IDN 50G |
1 | ||
| 90937-01121 |
WU340,XZU342..IDN 50G |
1 | ||
| 90937-01122 |
WU340,XZU342..IDN 60G |
1 | ||
| 90937-01122 |
WU340,XZU342..IDN 60G |
1 | ||
| 90937-01120 |
WU340,XZU342..IDN 40G |
1 | ||
| 90937-01120 |
WU340,XZU342..IDN 40G |
1 | ||
| 90937-01119 |
WU340,XZU342..IDN 30G |
1 | ||
| 90937-01119 |
WU340,XZU342..IDN 30G |
1 | ||
| 90937-01118 |
WU340,XZU342..IDN 20G |
1 | ||
| 90937-01118 |
WU340,XZU342..IDN 20G |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43501-37060 |
BU300,340 |
1 | ||
| 43501-37060 |
BU300,340 |
1 | ||
| 43501-0W020 |
WU340,XZU342..75T |
1 | ||
| 43501-0W020 |
WU340,XZU342..75T |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
WU340,XZU342..IDN |
1 | ||
| 90942-02071 |
WU340,XZU342..IDN |
1 | ||
| 90942-02071 |
BU300,340 |
1 | ||
| 90942-02071 |
BU300,340 |
1 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68002 |
WU340,XZU342;BU303,343,WU300,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 90311-68002 |
WU340,XZU342;BU303,343,WU300,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 90311-68002 |
BU300,340 |
1 | ||
| 90311-68002 |
BU300,340 |
1 | ||
| 90311-68003 |
WU340,XZU342..IDN |
1 | ||
| 90311-68003 |
WU340,XZU342..IDN |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-28001 |
BU300,340 |
1 | ||
| 90178-28001 |
BU300,340 |
1 | ||
| 90178-28001 |
WU340,XZU342..IDN |
1 | ||
| 90178-28001 |
WU340,XZU342..IDN |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-29001 |
WU340,XZU342..IDN |
1 | ||
| 90214-29001 |
WU340,XZU342..IDN |
1 | ||
| 90214-29001 |
BU300,340 |
1 | ||
| 90214-29001 |
BU300,340 |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-50069 |
BU300,340 |
1 | ||
| 90366-50069 |
BU300,340 |
1 | ||
| 90366-50069 |
WU340,XZU342..IDN |
1 | ||
| 90366-50069 |
WU340,XZU342..IDN |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90366-35105 |
BU300,340 |
1 | ||
| 90366-35105 |
BU300,340 |
1 | ||
| 90366-35105 |
WU340,XZU342..IDN |
1 | ||
| 90366-35105 |
WU340,XZU342..IDN |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-37060 |
BU300,340 |
1 | ||
| 43502-37060 |
BU300,340 |
1 | ||
| 43502-0W020 |
WU340,XZU342..75T |
1 | ||
| 43502-0W020 |
WU340,XZU342..75T |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
BU300,340 |
1 | ||
| 90942-02072 |
BU300,340 |
1 | ||
| 90942-02072 |
WU340,XZU342..IDN |
1 | ||
| 90942-02072 |
WU340,XZU342..IDN |
1 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68002 |
WU340,XZU342;BU303,343,WU300,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 90311-68002 |
WU340,XZU342;BU303,343,WU300,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 90311-68002 |
BU300,340 |
1 | ||
| 90311-68002 |
BU300,340 |
1 | ||
| 90311-68003 |
WU340,XZU342..IDN |
1 | ||
| 90311-68003 |
WU340,XZU342..IDN |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90178-28001 |
WU340,XZU342..IDN |
1 | ||
| 90178-28001 |
WU340,XZU342..IDN |
1 | ||
| 90178-28001 |
BU300,340 |
1 | ||
| 90178-28001 |
BU300,340 |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-29001 |
BU300,340 |
1 | ||
| 90214-29001 |
BU300,340 |
1 | ||
| 90214-29001 |
WU340,XZU342..IDN |
1 | ||
| 90214-29001 |
WU340,XZU342..IDN |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90366-50069 |
BU300,340 |
1 | ||
| 90366-50069 |
BU300,340 |
1 | ||
| 90366-50069 |
WU340,XZU342..IDN |
1 | ||
| 90366-50069 |
WU340,XZU342..IDN |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90366-35105 |
BU300,340 |
1 | ||
| 90366-35105 |
BU300,340 |
1 | ||
| 90366-35105 |
WU340,XZU342..IDN |
1 | ||
| 90366-35105 |
WU340,XZU342..IDN |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-37090 |
BU300,340..T3 |
2 | ||
| 43512-37090 |
BU300,340..T3 |
2 | ||
| 43512B - DRUM, BRAKE | ||||
| 43512-0W030 |
WU340,XZU342..75T |
2 | ||
| 43512-0W030 |
WU340,XZU342..75T |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-37030 |
WU340,XZU342..IDN |
1 | ||
| 43514-37030 |
WU340,XZU342..IDN |
1 | ||
| 43514-37030 |
BU300,340 |
1 | ||
| 43514-37030 |
BU300,340 |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37030 |
BU300,340 |
1 | ||
| 43514-37030 |
BU300,340 |
1 | ||
| 43514-37030 |
WU340,XZU342..IDN |
1 | ||
| 43514-37030 |
WU340,XZU342..IDN |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-37010 |
BU300,340 |
2 | ||
| 43515-37010 |
BU300,340 |
2 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-37010 |
WU340,XZU342..IDN |
1 | ||
| 43525-37010 |
WU340,XZU342..IDN |
1 | ||
| 43525-37010 |
BU300,340 |
1 | ||
| 43525-37010 |
BU300,340 |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-37010 |
BU300,340 |
1 | ||
| 43525-37010 |
BU300,340 |
1 | ||
| 43525-37010 |
WU340,XZU342..IDN |
1 | ||
| 43525-37010 |
WU340,XZU342..IDN |
1 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 95381-04035 | ||||
| Linked diagrams | ||||
| 4103 | ||||
