WU340R-TKMQSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9907-0212)XZU300,320,330,340

Click highlighted areas on diagram

diagram 7151 73150 73210 73220 73230 73240 9010511036 9010511038 9010511038 9010511038 9010511038 9010911048 9010911048
Part # Description Qty Price
Common parts
90105-11036
90105-11038
90109-11048
Linked diagrams
7151

(0209- )IDN

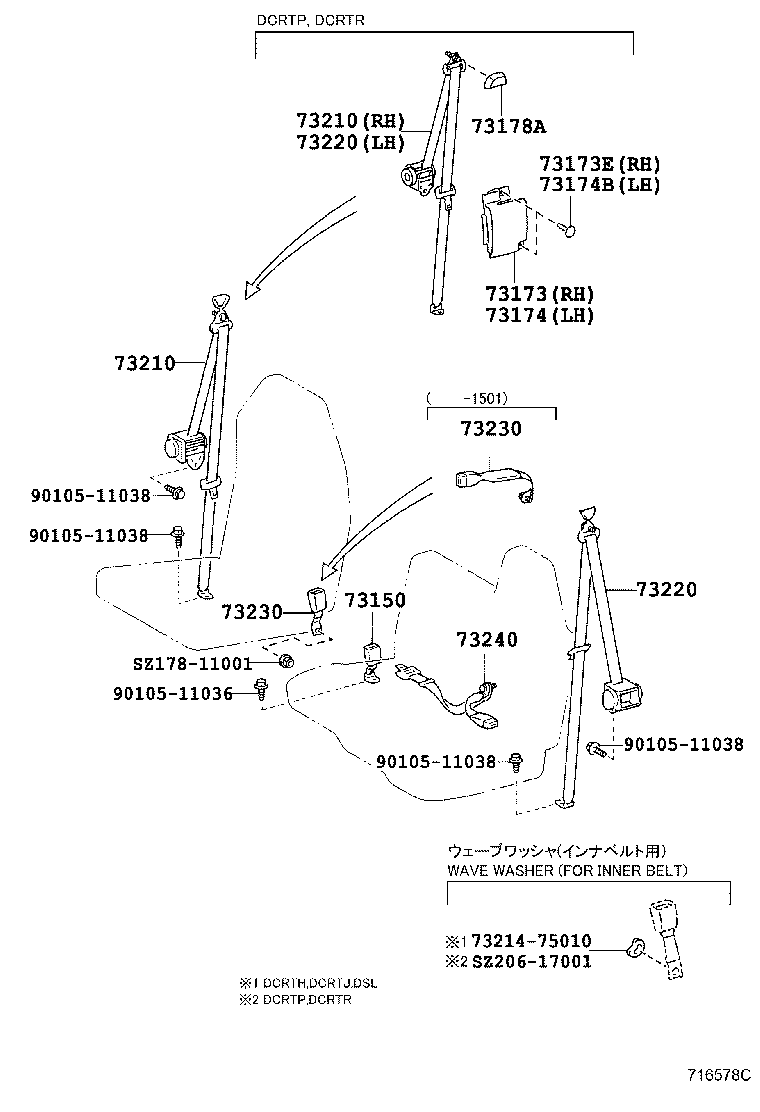

Click highlighted areas on diagram

diagram 73150 73173 73173E 73174 73174B 73178A 73210 73210 7321475010 73220 73220 73230 73230 73240 9010511036 9010511038 9010511038 9010511038 9010511038 SZ17811001 SZ20617001
Part # Description Qty Price
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-37100B0

BU300,340

GRAY,TRIM1#

 1
73150-0W010B0

BU303,343,WU300,340,XZU342..IDN

DK.CHARCOAL,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B1

BU300,340

MD.CHARCOAL,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37170B0

BU300,340

GRAY,TRIM1#

 1
73210-0W080B0

BU303,343,WU300,340,XZU342..IDN

GRAY,TRIM1#

 1
73210-37230B0

BU300,340

PRETENSIONER SEAT BELT,GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37170B0

BU300,340

GRAY,TRIM1#

 1
73210-0W080B0

BU303,343,WU300,340,XZU342..IDN

GRAY,TRIM1#

 1
73210-37230B0

BU300,340

PRETENSIONER SEAT BELT,GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-0W080B0

BU303,343,WU300,340,XZU342..IDN

GRAY,TRIM1#

 1
73210-37170B0

BU300,340

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-0W080B0

BU303,343,WU300,340,XZU342..IDN

GRAY,TRIM1#

 1
73210-37170B0

BU300,340

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0W080B0

BU303,343,WU300,340,XZU342..IDN

DK.CHARCOAL,TRIM1#

 1
73230-37110B0

BU300,340

DK.CHARCOAL,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0W080B0

BU303,343,WU300,340,XZU342..IDN

DK.CHARCOAL,TRIM1#

 1
73230-37110B0

BU300,340

DK.CHARCOAL,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-37160B1

BU300,340

GRAY,TRIM1#

 1
73240-0W040B0

BU303,343,WU300,340,XZU342..IDN

GRAY,TRIM1#

 1
Common parts
73214-75010
90105-11036
90105-11038
SZ178-11001
SZ206-17001
