WU340R-TKMQSD3 (2002)

Toyota Dyna

Production Sep 2002 - Dec 2006
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0209-0612)IDN

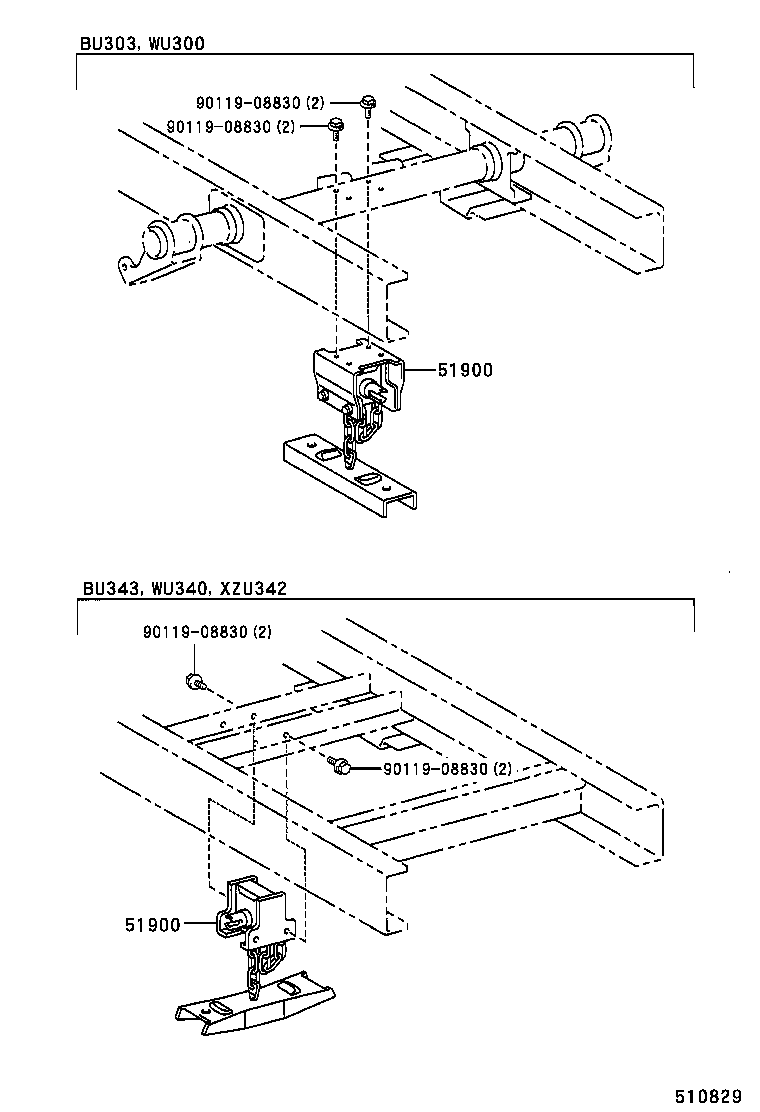

Click highlighted areas on diagram

diagram 51900 51900 9011908830 9011908830 9011908830 9011908830
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-0W020

WU340,XZU342..IDN

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-0W020

WU340,XZU342..IDN

 1
Common parts
90119-08830

(0212-0510)WU300..WT..CBU ; (0212-0610)BU303..LHD..WT..CBU ; (0212-0610)BU34#,WU340

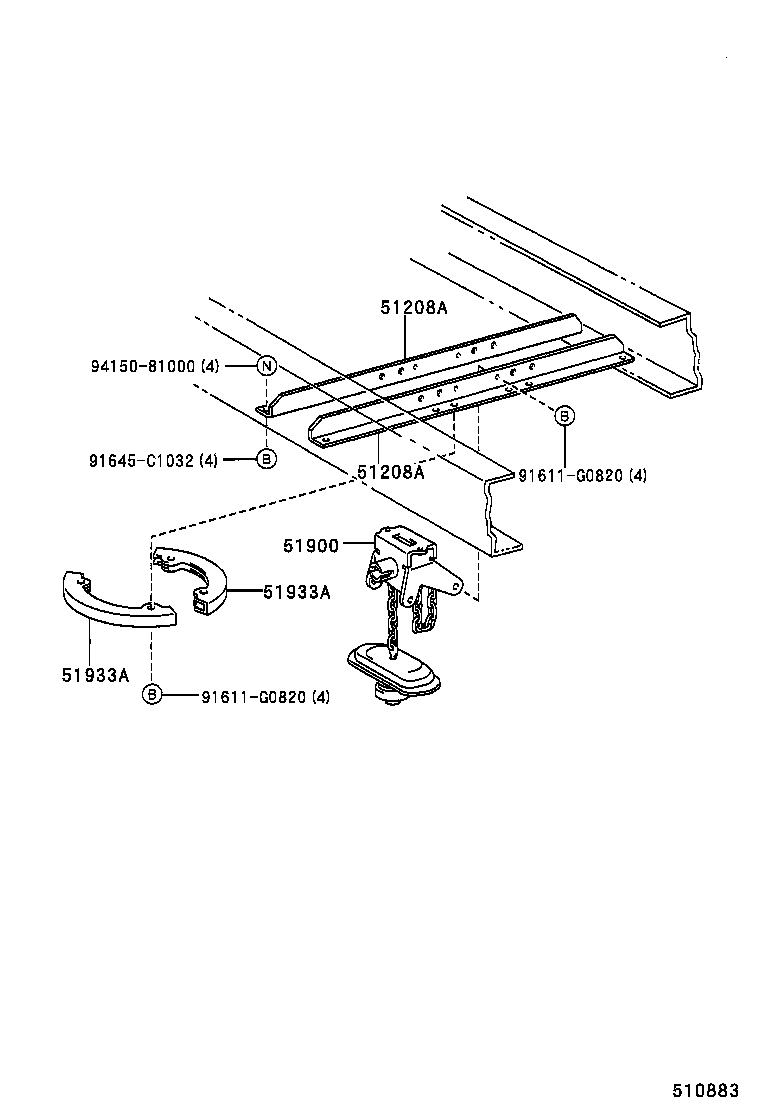

Click highlighted areas on diagram

diagram 51208A 51208A 51900 51933A 51933A 91611G0820 91611G0820 91645C1032 9415081000
Part # Description Qty Price
51208A - MEMBER SUB-ASSY, SPARE WHEEL SET
51261-37020

BU300,340

 2
51208A - MEMBER SUB-ASSY, SPARE WHEEL SET
51261-37020

BU300,340

 2
51900 - CARRIER ASSY, SPARE WHEEL
51900-0W020

WU340,XZU342..IDN

 1
Common parts
91611-G0820
91645-C1032
94150-81000
