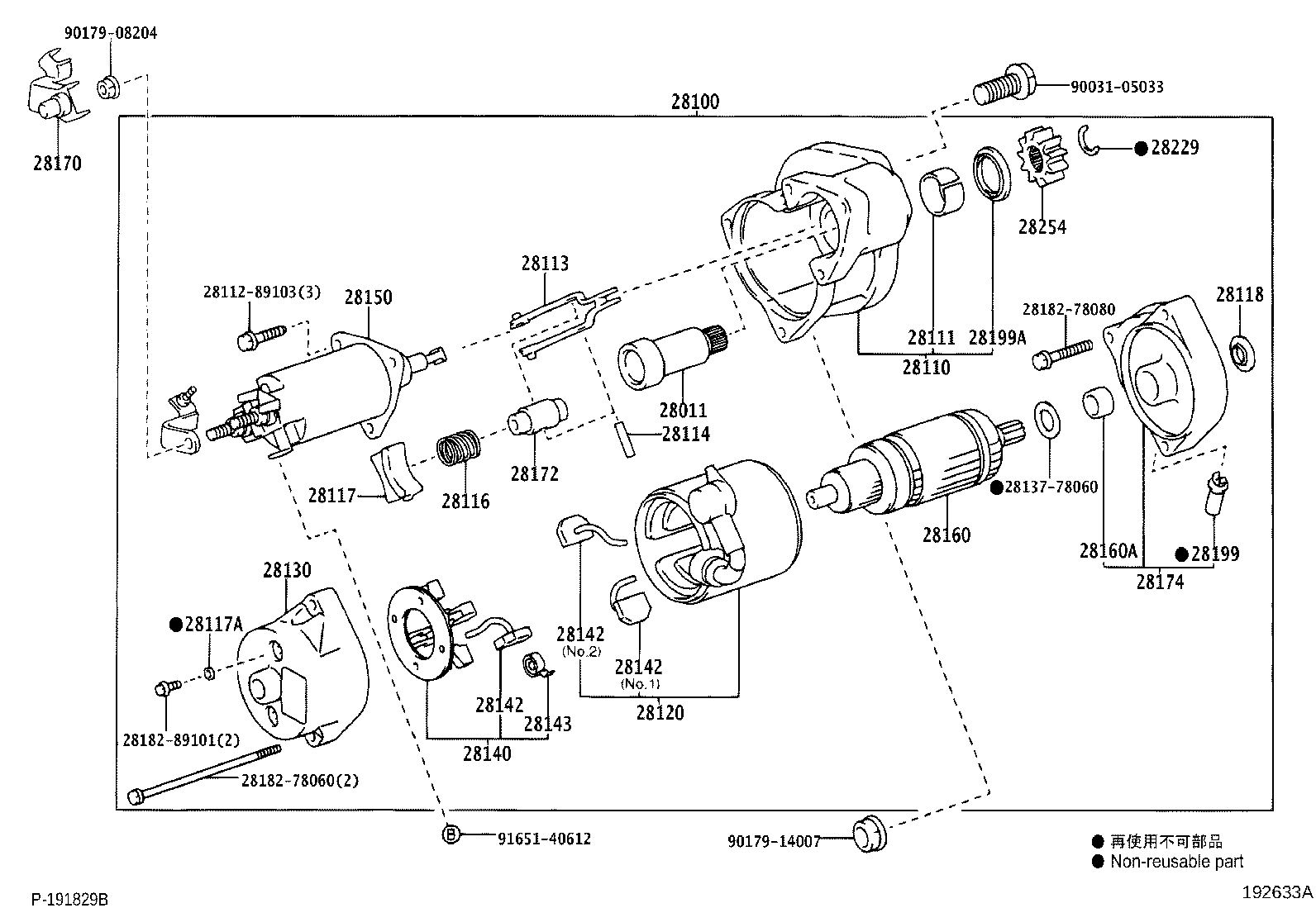

WU340R-TKMQSD3 (2002)
Toyota Dyna
(0209-0610)W04D..GCC ; (0209-0612)W04D..WU300,340..IDN ; (0209-0802)W04D..WU300,340
24V 4.5KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-78090 |
W04D..WU300,340..IDN |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-78090 |
W04D..WU300,340..IDN 24V 4.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-78090 |
W04D..WU300,340..GCC,IDN,SA |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-78060 |
W04D..WU300,340..IDN |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-78090 |
W04D..WU300,340..GCC,IDN,SA |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-78090 |
W04D..WU300,340..IDN |
1 | ||
| 28116 - SPRING, PINION RETURN | ||||
| 28116-78090 |
W04D..WU300,340..IDN |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-78090 |
W04D..WU300,340..IDN |
1 | ||
| 28117A - SEAL, RUBBER | ||||
| 28117-78080 |
S05C,W04D..WU300,340,XZU342..GCC,IDN,SA |
2 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-78080 |
W04D..WU300,340..GCC,IDN,SA |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-78090 |
W04D..WU300,340..IDN |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28133-78090 |
W04D..WU300,340..IDN |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-78060 |
W04D..WU300,340..IDN |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28148-89101 |
W04D..WU300,340..GCC,IDN,SA NO.1 |
1 | ||
| 28148-89103 |
W04D..WU300,340..GCC,IDN,SA NO.3 |
2 | ||
| 28148-89102 |
W04D..WU300,340..GCC,IDN,SA NO.2 |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28148-89101 |
W04D..WU300,340..GCC,IDN,SA NO.1 |
1 | ||
| 28148-89103 |
W04D..WU300,340..GCC,IDN,SA NO.3 |
2 | ||
| 28148-89102 |
W04D..WU300,340..GCC,IDN,SA NO.2 |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28148-89101 |
W04D..WU300,340..GCC,IDN,SA NO.1 |
1 | ||
| 28148-89103 |
W04D..WU300,340..GCC,IDN,SA NO.3 |
2 | ||
| 28148-89102 |
W04D..WU300,340..GCC,IDN,SA NO.2 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-78060 |
W04D..WU300,340..IDN |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-78090 |
W04D..WU300,340..IDN |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-78060 |
S05C,W04D..WU300,340,XZU342..IDN |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28252-78060 |
S05C,W04D..WU300,340,XZU342..IDN |
1 | ||
| 28170 - COVER ASSY, STARTER | ||||
| 28170-78010 |
W04D..WU300,340..IDN |
1 | ||
| 28172 - HOLDER, STARTER SPRING | ||||
| 28172-78090 |
W04D..WU300,340..IDN |
1 | ||
| 28174 - HOUSING, STARTER MOTOR | ||||
| 28174-78090 |
W04D..WU300,340..GCC,IDN,SA |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-78070 |
S05C,W04D..WU300,340,XZU342..IDN |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-78060 |
S05C,W04D..WU300,340,XZU342..IDN |
1 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-78060 |
S05C,W04D..WU300,340,XZU342..IDN |
1 | ||
| 28254 - PINION, STARTER IDLE GEAR | ||||
| 28250-78060 |
S05C,W04D..WU300,340,XZU342..GCC,IDN,SA |
1 | ||
| Common parts | ||||
| 28112-89103 | ||||
| 28137-78060 | ||||
| 28182-78060 | ||||
| 28182-78080 | ||||
| 28182-89101 | ||||
| 90031-05033 | ||||
| 90179-08204 | ||||
| 90179-14007 | ||||
| 91651-40612 | ||||
