WU340R-TKMMSN3 (2003)
Toyota Dyna

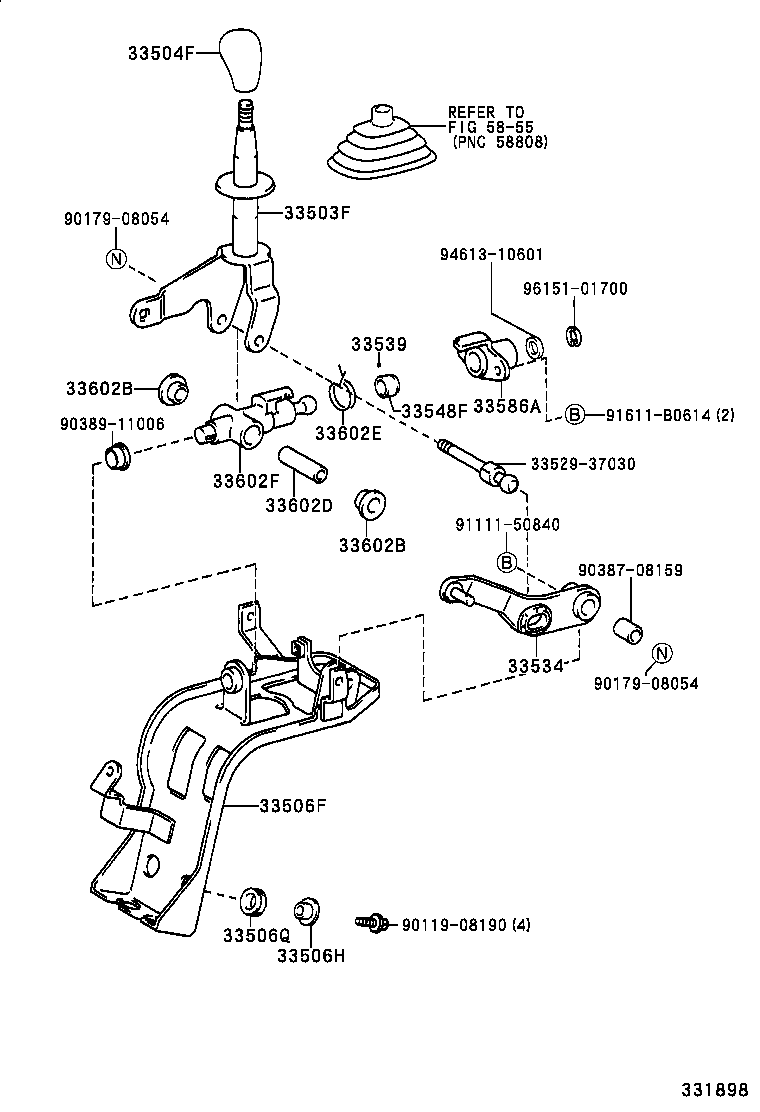

ILLUST NO. 1 OF 2(0209-0412)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-37060 |
BU303,343,WU300,340,XZU305,342,345..RHD |
1 | ||
| 33055-37060 |
BU300,340 |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36051B1 |
WU300,340..SA DK.CHARCOAL,TRIM1# |
1 | ||
| 33504-36051B1 |
BU300,340 DK.CHARCOAL,TRIM1# |
1 | ||
| 33504-36051B1 |
WU300,340..SA DK.CHARCOAL,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-37031 |
BU303,343,WU300,340,XZU305,342,345..RHD |
1 | ||
| 33506-37031 |
BU300,340 |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
BU303,343,WU300,340,XZU305,342,345..RHD |
4 | ||
| 90386-12056 |
BU300,340 |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33577-37060 |
BU300,340 |
4 | ||
| 33577-37060 |
BU303,343,WU300,340,XZU305,342,345..RHD |
4 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-37060 |
BU300,340 |
1 | ||
| 33534-37060 |
BU303,343,WU300,340,XZU305,342,345..RHD |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
BU303,343,WU300,340,XZU305,342,345..RHD |
1 | ||
| 33539-12010 |
BU300,340 |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
BU300,340 |
1 | ||
| 33548-12040 |
BU303,343,WU300,340,XZU305,342,345..RHD |
1 | ||
| 33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT) | ||||
| 33586-37020 |
BU300,340 |
1 | ||
| 33586-37020 |
BU303,343,WU300,340,XZU305,342,345..RHD |
1 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BU303,343,WU300,340,XZU305,342,345..RHD |
2 | ||
| 90386-13007 |
BU300,340 |
2 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BU303,343,WU300,340,XZU305,342,345..RHD |
2 | ||
| 90386-13007 |
BU300,340 |
2 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08063 |
BU300,340 |
1 | ||
| 90387-08063 |
BU303,343,WU300,340,XZU305,342,345..RHD |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90949-03034 |
BU300,340 |
1 | ||
| 90949-03034 |
BU303,343,WU300,340,XZU305,342,345..RHD |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-37020 |
BU303,343,WU300,340,XZU305,342,345..RHD |
1 | ||
| 33602-37020 |
BU300,340 |
1 | ||
| Common parts | ||||
| 33529-37030 | ||||
| 90119-08190 | ||||
| 90179-08054 | ||||
| 90387-08159 | ||||
| 90389-11006 | ||||
| 91111-50840 | ||||
| 91611-B0614 | ||||
| 94613-10601 | ||||
| 96151-01700 | ||||
| Linked diagrams | ||||
| 5855 | ||||

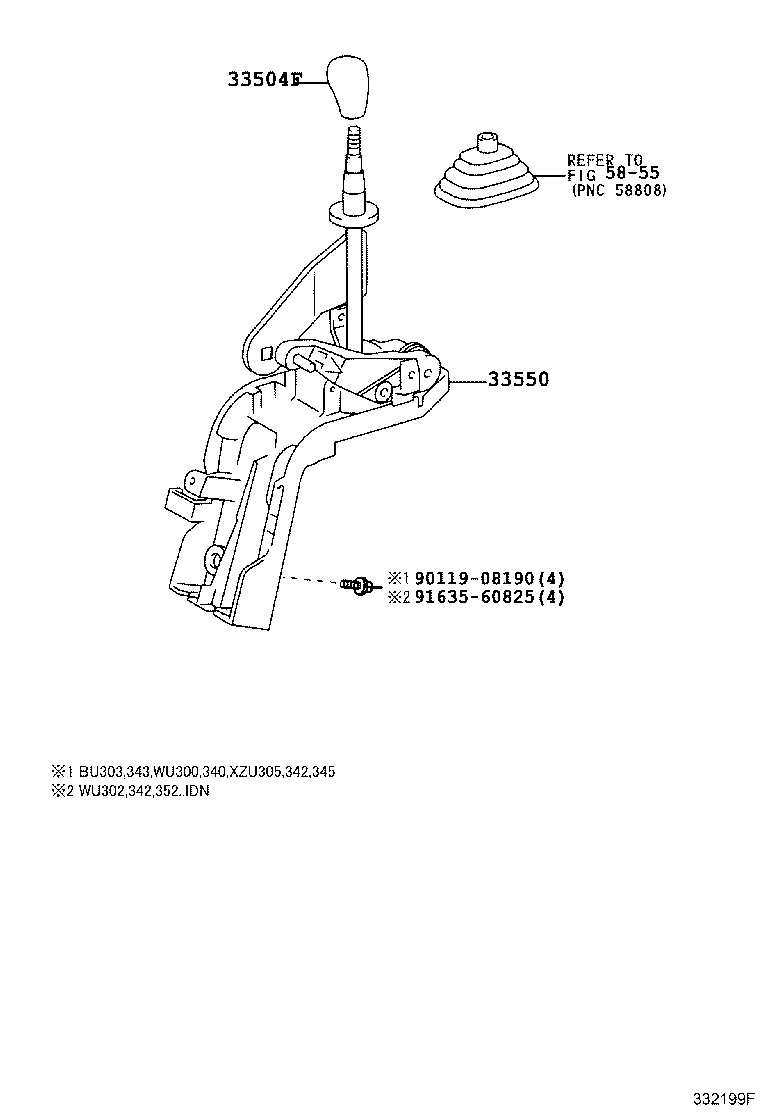

ILLUST NO. 1 OF 2(0412- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36051B1 |
WU300,340..SA DK.CHARCOAL,TRIM1# |
1 | ||
| 33504-36051B1 |
BU300,340 DK.CHARCOAL,TRIM1# |
1 | ||
| 33504-36051B1 |
WU300,340..SA DK.CHARCOAL,TRIM1# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-37150 |
BU303,343,WU300,340,XZU305,342,345..RHD |
1 | ||
| 33550-37151 |
WU300,340..SA |
1 | ||
| 33550-37151 |
WU300,340..SA |
1 | ||
| Common parts | ||||
| 90119-08190 | ||||
| 91635-60825 | ||||
| Linked diagrams | ||||
| 5855 | ||||

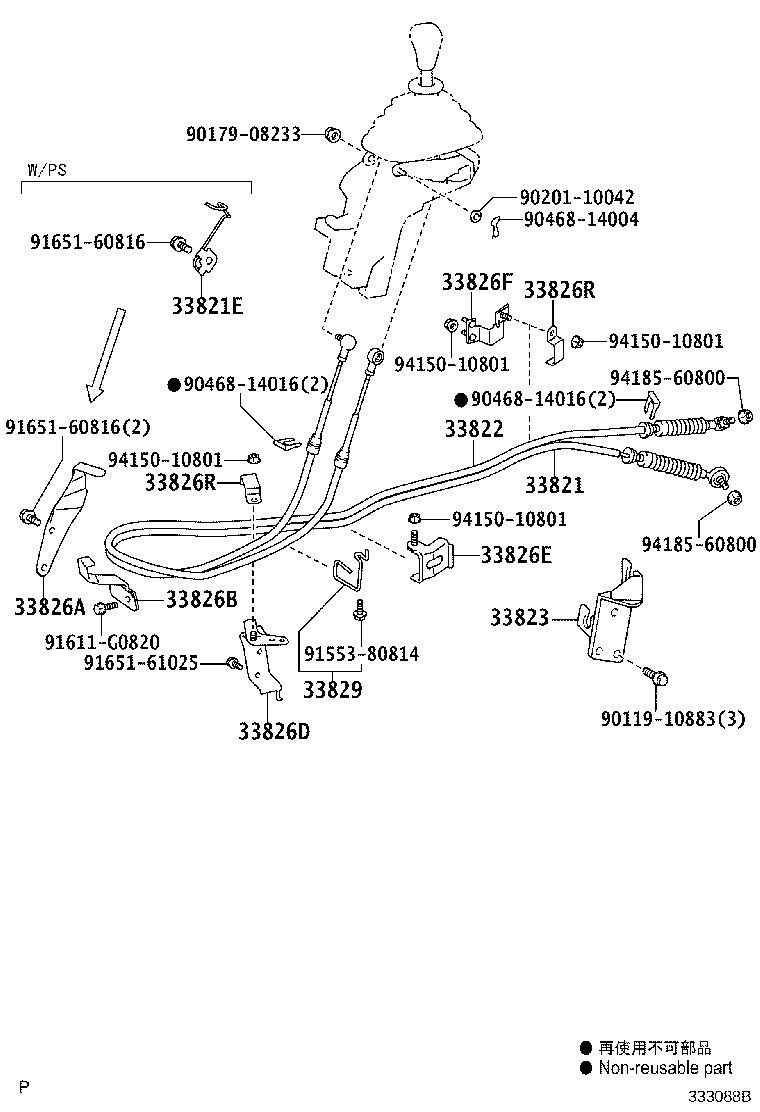

ILLUST NO. 2 OF 2(0610- )RHD..GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37683 |
XZU300,330,340 |
1 | ||
| 33820-37893 |
BU303,343,WU300,340..RHD..(GEN,SA) |
1 | ||
| 33820-37684 |
XZU300,330,340 |
1 | ||
| 33820-37894 |
WU300,340..SA |
1 | ||
| 33820-37F70 |
WU300,340..SA |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33829-37260 |
WU300,340..SA |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33820-3V013 |
WU300,340..SA |
1 | ||
| 33820-3V043 |
XZU300,330,340 |
1 | ||
| 33830-37220 |
WU300,340..SA |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37750 |
WU300,340..SA |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37180 |
BU300,340 |
1 | ||
| 33826-37180 |
WU300,340..SA |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
WU300,340..SA |
1 | ||
| 33826-37210 |
WU300,340..SA |
1 | ||
| 33826-37210 |
BU300,340 |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33827-37241 |
WU300,340..SA |
1 | ||
| 33826-37270 |
WU300,340..SA |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37590 |
BU300,340 NO.2 |
1 | ||
| 33826-37251 |
BU300,340 NO.1 |
1 | ||
| 33826-37590 |
WU300,340..SA NO.2 |
1 | ||
| 33826-37251 |
WU300,340..SA |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33826-37420 |
XZU300,330,340 |
1 | ||
| 33826-37420 |
BU300,340 |
1 | ||
| 33827-37120 |
WU300,340..SA |
1 | ||
| 33826-37460 |
WU300,340..SA |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
WU300,340..SA |
2 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
WU300,340..SA |
2 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-37250 |
WU300,340..SA |
1 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91553-80814 | ||||
| 91611-G0820 | ||||
| 91651-60816 | ||||
| 91651-61025 | ||||
| 94150-10801 | ||||
| 94185-60800 | ||||
