WU340R-TKMMSN3 (2003)
Toyota Dyna
Production
Apr 2003
-
Dec 2008
Engine
W04D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0209-0712)W04D..WU300,340..GCC,IDN,SA

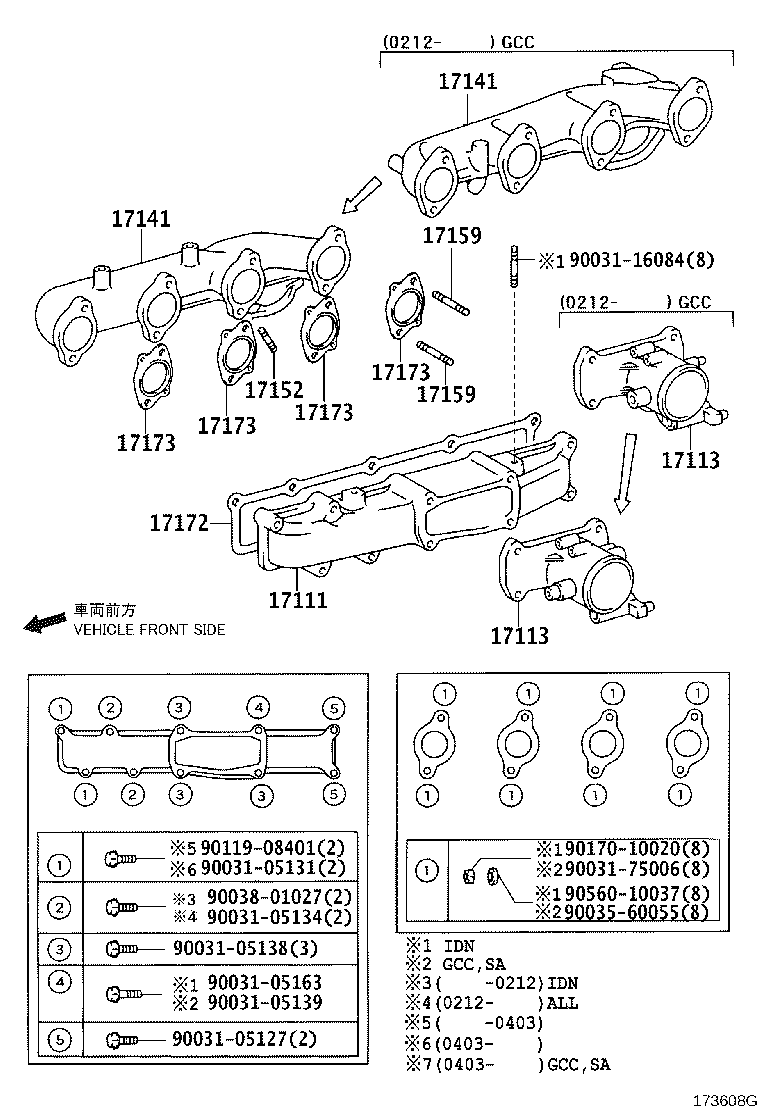

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-78062 |
W04D..WU300,340..SA |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-78062 |
W04D..WU300,340..SA |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90031-16091 |
W04D..WU300,340..SA |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
W04D..WU300,340..SA |
8 | ||
| 90116-10077 |
W04D..WU300,340..GCC,SA |
8 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
W04D..WU300,340..SA |
8 | ||
| 90116-10077 |
W04D..WU300,340..GCC,SA |
8 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
W04D..WU300,340..SA |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
W04D..WU300,340..SA |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
W04D..WU300,340..SA |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
W04D..WU300,340..SA |
4 | ||
| Common parts | ||||
| 90031-05127 | ||||
| 90031-05131 | ||||
| 90031-05134 | ||||
| 90031-05138 | ||||
| 90031-05139 | ||||
| 90031-05163 | ||||
| 90031-16084 | ||||
| 90031-75006 | ||||
| 90035-60055 | ||||
| 90038-01027 | ||||
| 90119-08401 | ||||
| 90170-10020 | ||||
| 90560-10037 | ||||
(0610- )W04D..WU300,340..GCC,GEN,SA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-78062 |
W04D..WU300,340..SA |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90031-16091 |
W04D..WU300,340..SA |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
W04D..WU300,340..SA |
8 | ||
| 90116-10077 |
W04D..WU300,340..GCC,SA |
8 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
W04D..WU300,340..SA |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
W04D..WU300,340..SA |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
W04D..WU300,340..SA |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
W04D..WU300,340..SA |
4 | ||
| Common parts | ||||
| 90031-05127 | ||||
| 90031-05131 | ||||
| 90031-05134 | ||||
| 90031-05138 | ||||
| 90031-05139 | ||||
| 90031-16084 | ||||
| 90031-75006 | ||||
| 90035-60055 | ||||
