WU340R-TKMMS (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )W04D..WU300,340..GCC,GEN ; (0802-)W04D..WU300,340..SA

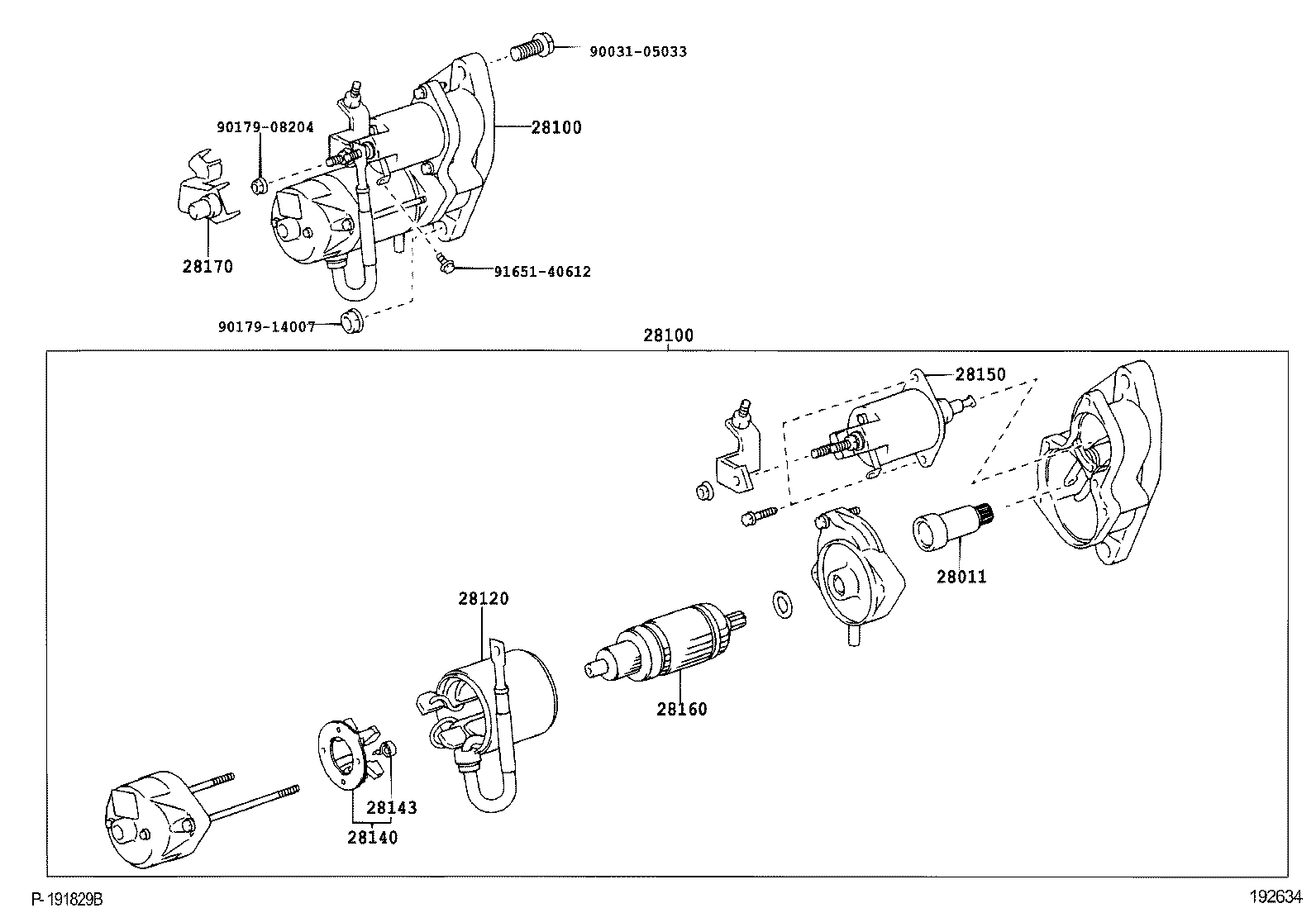

Click highlighted areas on diagram

24V 4.5KW

diagram 28011 28100 28100 28120 28140 28143 28150 28160 28170 9003105033 9017908204 9017914007 9165140612
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-78090

W04D..WU300,340..GCC,GEN

 1
28100 - STARTER ASSY
28100-78090

W04D..WU300,340..GCC,GEN

24V 4.5KW

 1
28100 - STARTER ASSY
28100-78090

W04D..WU300,340..GCC,GEN

24V 4.5KW

 1
28120 - YOKE ASSY, STARTER
28120-78090

W04D..WU300,340..GCC,GEN

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-78060

W04D..WU300,340..GCC,GEN

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-78090

W04D..WU300,340..GCC,GEN

 1
28160 - ARMATURE ASSY, STARTER
28160-78060

W04D..WU300,340..GCC,GEN

 1
28170 - COVER ASSY, STARTER
28170-78010

W04D..WU300,340..GCC,GEN

 1
Common parts
90031-05033
90179-08204
90179-14007
91651-40612
