WU340L-TKMQS3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0610- )GCC,GEN,SA,TAIW

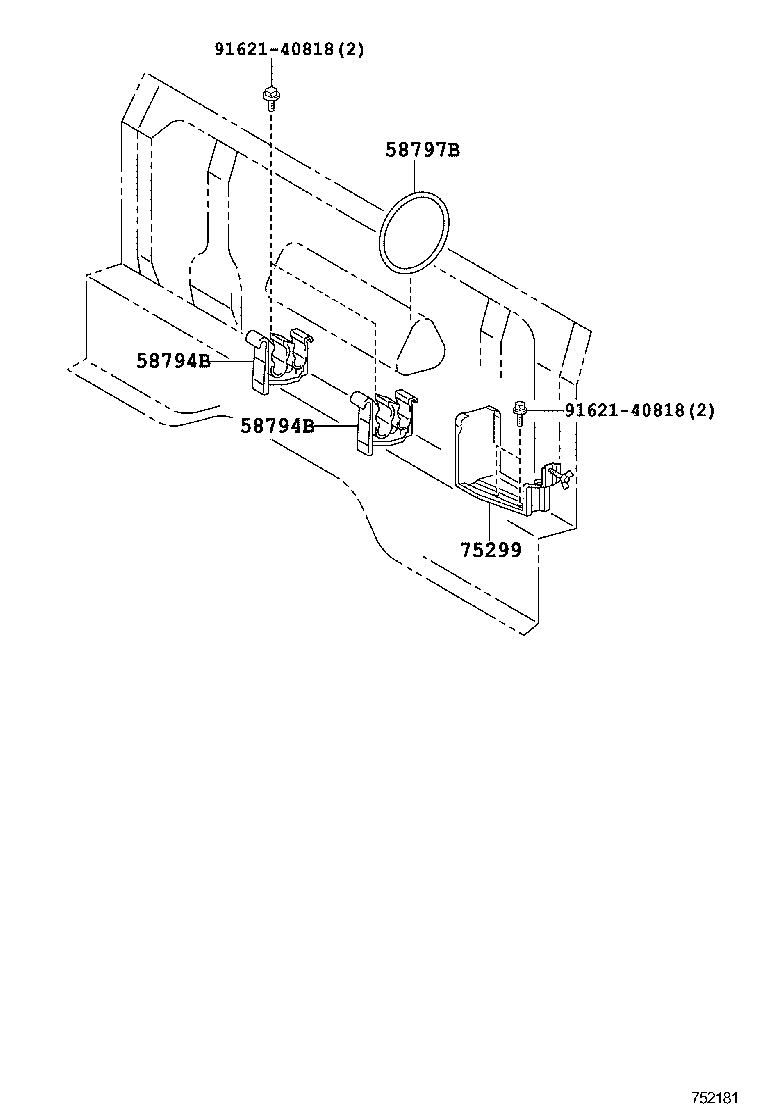

Click highlighted areas on diagram

JACK

diagram 58794B 58794B 58797B 75299 9162140818 9162140818
Part # Description Qty Price
58794B - SUPPORT, JACK HANDLE
58794-37010

WU30#,34#..GCC,GEN

 2
58794B - SUPPORT, JACK HANDLE
58794-37010

WU30#,34#..GCC,GEN

 2
58797B - BAND, JACK CLAMP
58797-37030

WU30#,34#..GCC,GEN

 1
75299 - BASE, JACK HOLDER
75209-37010

WU30#,34#..GCC,GEN

 1
75209-37011

WU30#,34#..GCC,GEN

 1
Common parts
91621-40818
