WU340L-TKMQS3 (2006)
Toyota Dyna
Production
Oct 2006
-
Jun 2011
Engine
W04D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )48T,55T,65T..GCC,GEN,TAIW ; (0802-)SA

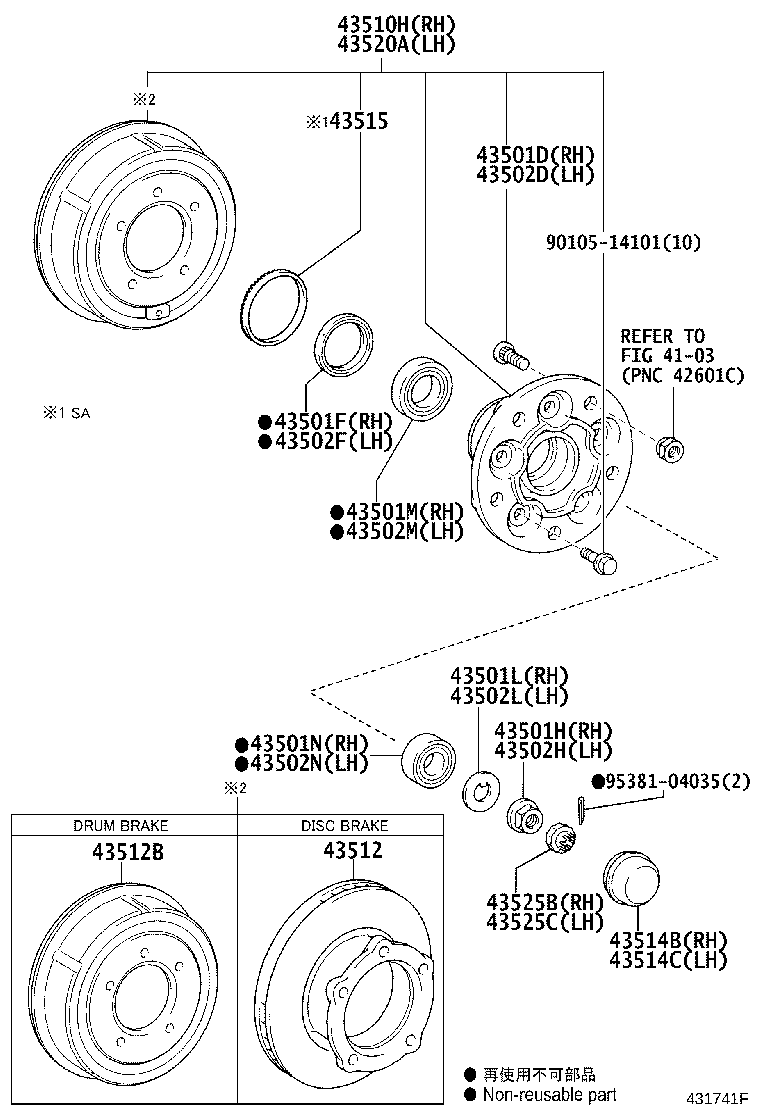

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
WU30#,34#..GCC,GEN |
1 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68003 |
WU30#,34#..GCC,GEN |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-28001 |
WU30#,34#..GCC,GEN |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-29001 |
WU30#,34#..GCC,GEN |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-50069 |
WU30#,34#..GCC,GEN |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90366-35105 |
WU30#,34#..GCC,GEN |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
WU30#,34#..GCC,GEN |
1 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68003 |
WU30#,34#..GCC,GEN |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90178-28001 |
WU30#,34#..GCC,GEN |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-29001 |
WU30#,34#..GCC,GEN |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90366-50069 |
WU30#,34#..GCC,GEN |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90366-35105 |
WU30#,34#..GCC,GEN |
1 | ||
| 43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH | ||||
| 43510-39265 |
WU30#,34#..GCC,GEN |
1 | ||
| 43510-39275 |
WU30#,34#..WT..(GCC,GEN) W(DISC BRAKE) |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-37090 |
WU30#,34#..WT..(GCC,GEN) |
2 | ||
| 43512B - DRUM, BRAKE | ||||
| 43512-37110 |
WU30#,34#..GCC,GEN |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-37030 |
WU30#,34#..GCC,GEN |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37030 |
WU30#,34#..GCC,GEN |
1 | ||
| 43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH | ||||
| 43520-39245 |
WU30#,34#..GCC,GEN |
1 | ||
| 43520-39255 |
WU30#,34#..WT..(GCC,GEN) W(DISC BRAKE) |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-37010 |
WU30#,34#..GCC,GEN |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-37010 |
WU30#,34#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 95381-04035 | ||||
| Linked diagrams | ||||
| 4103 | ||||
