WU340L-TKMQS (2006)
Toyota Dyna

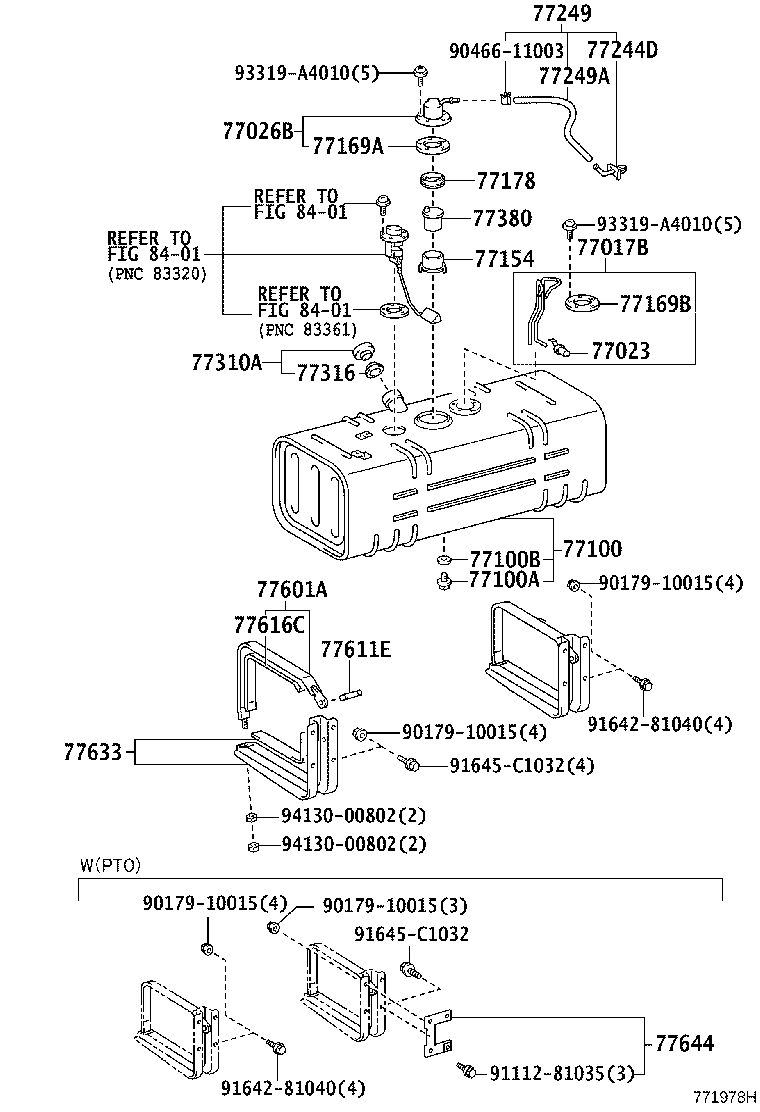

ILLUST NO. 1 OF 2(0610- )GCC,GEN,SA,TAIW
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37010 |
WU30#,34#..GCC,GEN |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
WU30#,34#..GCC,GEN |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
WU30#,34#..GCC,GEN |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-37500 |
WU34#..GCC,GEN |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
WU30#,34#..GCC,GEN |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
WU30#,34#..GCC,GEN |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
WU30#,34#..GCC,GEN |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
WU30#,34#..GCC,GEN |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
WU30#,34#..GCC,GEN |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
WU30#,34#..GCC,GEN |
1 | ||
| 77244D - TUBE, FUEL EVAPORATION BREATHER, NO.1 | ||||
| 77244-37010 |
WU30#,34#..GCC,GEN |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37190 |
WU30#,34#..GCC,GEN |
1 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 95333-06040 |
WU30#,34#..GCC,GEN |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-60100 |
WU30#,34#..GCC,GEN |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
WU30#,34#..GCC,GEN |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
WU30#,34#..GCC,GEN |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37030 |
WU30#,34#..GCC,GEN |
2 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77629-36010 |
WU30#,34#..GCC,GEN |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-37100 |
WU30#,34#..GCC,GEN |
2 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 90466-11003 | ||||
| 91112-81035 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 8401 | ||||

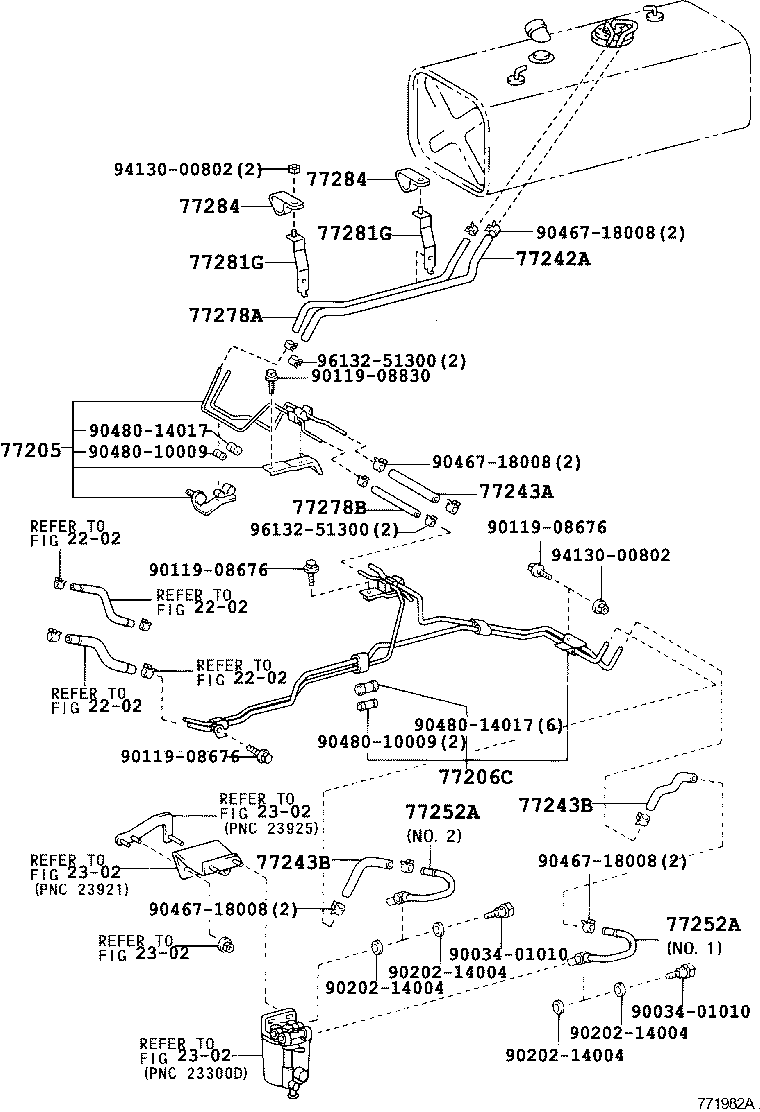

ILLUST NO. 2 OF 2(0610- )WU34#..GCC,GEN,SA
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37A80 |
WU34#..GCC,GEN |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37B90 |
WU30#,34#..GCC,GEN |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12100 |
WU34#..GCC,GEN *H,L=1000,ID=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12016 |
WU30#,34#..GCC,GEN *H,L=160,ID=12 |
1 | ||
| 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12024 |
WU30#,34#..GCC,GEN *H,L=240,ID=12 |
2 | ||
| 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12024 |
WU30#,34#..GCC,GEN *H,L=240,ID=12 |
2 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-37750 |
WU30#,34#..GCC,GEN NO.1 |
1 | ||
| 77252-37760 |
WU30#,34#..GCC,GEN NO.2 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-37750 |
WU30#,34#..GCC,GEN NO.1 |
1 | ||
| 77252-37760 |
WU30#,34#..GCC,GEN NO.2 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08100 |
WU34#..GCC,GEN *H,L=1000,ID=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
WU30#,34#..GCC,GEN *H,L=160,ID=7.6 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-37430 |
WU34#..GCC,GEN |
2 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-37430 |
WU34#..GCC,GEN |
2 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77281-37530 |
WU34#..GCC,GEN |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77281-37530 |
WU34#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90034-01010 | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90202-14004 | ||||
| 90467-18008 | ||||
| 90480-10009 | ||||
| 90480-14017 | ||||
| 94130-00802 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
