WU340L-TKMQS (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )W04D..WU300,340..GCC,GEN,SA

Click highlighted areas on diagram

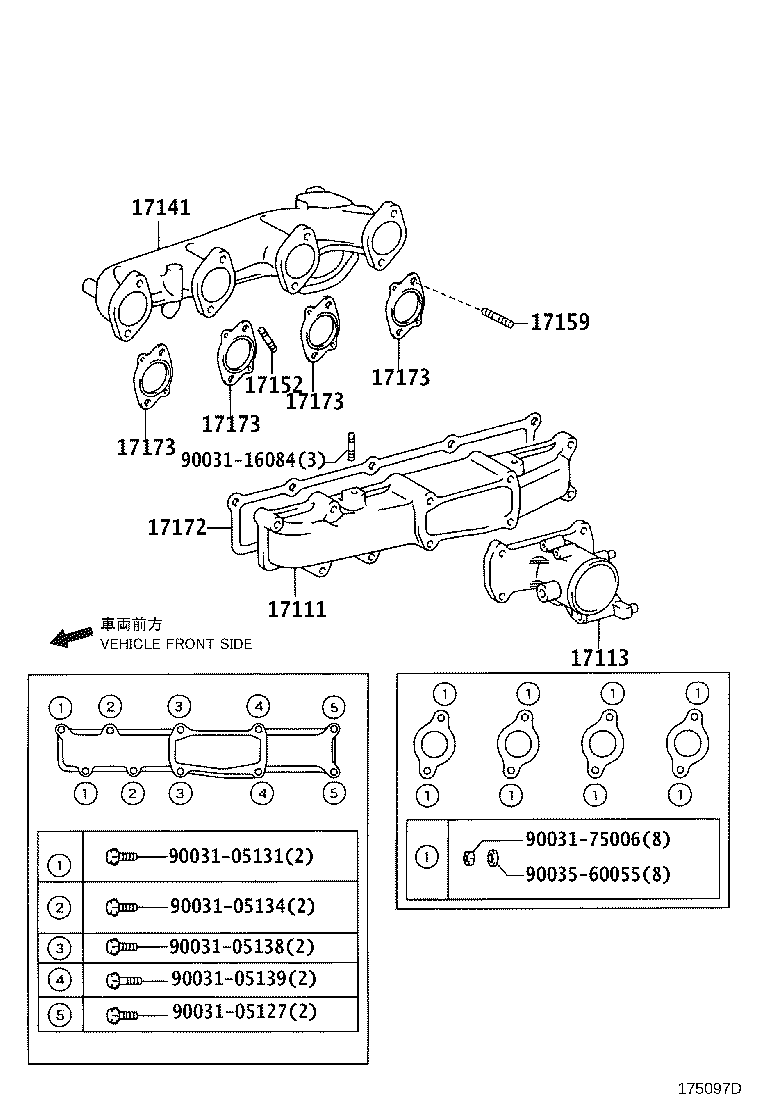

diagram 17111 17113 17141 17152 17159 17172 17173 17173 17173 17173 9003105127 9003105131 9003105134 9003105138 9003105139 9003116084 9003175006 9003560055
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-78011

W04D..WU300,340..GCC,GEN,SA

 1
17113 - PIPE, INTAKE
17113-78060

W04D..WU300,340..GCC,GEN,SA

 1
17141 - MANIFOLD, EXHAUST
17141-78062

W04D..WU300,340..GCC,GEN,SA

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90031-16091

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90031-16069

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 8
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-78040

W04D..WU300,340..GCC,GEN,SA

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78040

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78040

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78040

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78040

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 4
Common parts
90031-05127
90031-05131
90031-05134
90031-05138
90031-05139
90031-16084
90031-75006
90035-60055
