WU340L-TKMQS (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )W04D..WU300,340..GCC,GEN ; (0610-)W04D..WU302,342..DCRTH,DCRTJ ; (08

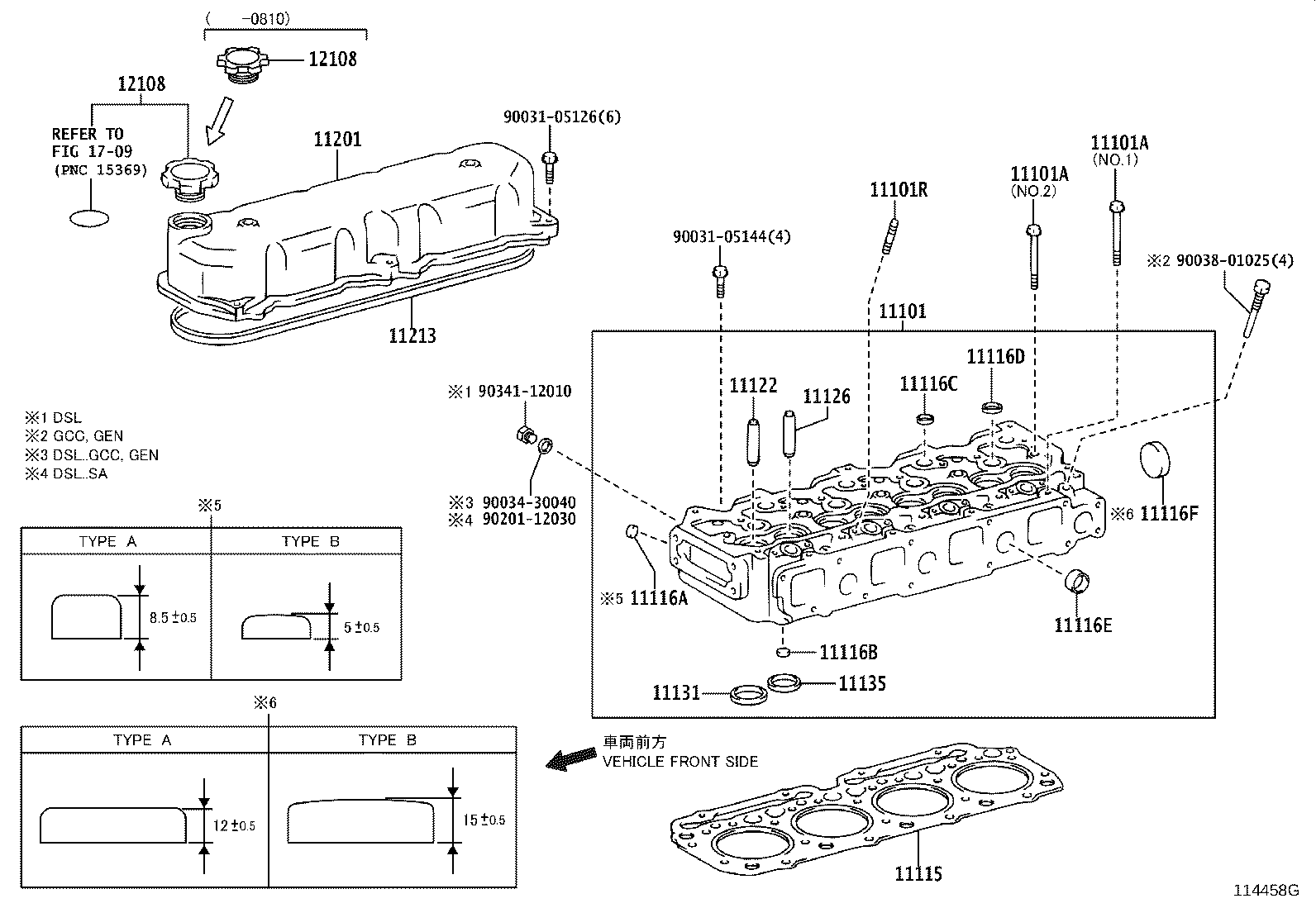

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101R 11115 11116A 11116B 11116C 11116D 11116E 11116F 11122 11126 11131 11135 11201 11213 12108 12108 1709 9003105126 9003105144 9003430040 9003801025 9020112030 9034112010
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11110-78181

W04D..WU300,340

 1
11110-78180

W04D..WU300,340..GCC,GEN,SA

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90031-01199

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

NO.1

 13
90031-01200

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

NO.2

 5
11101A - BOLT(FOR CYLINDER HEAD SET)
90031-01199

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

NO.1

 13
90031-01200

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

NO.2

 5
11101R - BOLT, STUD(FOR FUEL PIPE)
90116-08173

W04D..WU300,340..GCC,GEN,SA

 8
11115 - GASKET, CYLINDER HEAD
11115-78080

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 1
11116A - PLUG, TIGHT, NO.1
90331-14005

W04D..WU300,340..GCC,GEN,SA

TYPE A:REFER ILLUST.

 4
90033-31028

W04D..WU30#,34#..GCC,GEN

TYPE B:REFER ILLUST.

 4
11116B - PLUG, TIGHT, NO.2
90331-22001

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 4
11116C - PLUG, TIGHT, NO.3
90331-24001

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 4
11116D - PLUG, TIGHT, NO.4
90331-26001

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 4
11116E - PLUG, TIGHT, NO.5
90331-30001

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 4
11116F - PLUG, TIGHT, NO.6
90331-50002

W04D..WU300,340..GCC,GEN,SA

TYPE A:REFER ILLUST.

 1
90033-31026

W04D..WU30#,34#..GCC,GEN

TYPE B:REFER ILLUST.

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-89102

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-89102

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

STD

 4
11131 - SEAT, INTAKE VALVE
11131-78050

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

STD

 4
11135 - SEAT, EXHAUST VALVE
11135-78020

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

STD

 4
11135-78060

W04D..WU30#,34#..GCC,GEN

STD

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11211-78010

W04D..WU30#,34#..GCC,GEN,SA

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-78010

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-78010

W04D..WU30#,34#..DCRTH,DCRTJ,DSL

 1
12108-78010

W04D..WU302,342;W04D..WU300,340..GCC,GEN,SA

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-78010

W04D..WU30#,34#..DCRTH,DCRTJ,DSL

 1
12108-78010

W04D..WU302,342;W04D..WU300,340..GCC,GEN,SA

 1
Common parts
90031-05126
90031-05144
90034-30040
90038-01025
90201-12030
90341-12010
Linked diagrams
1709
