8716 - HEATING & AIR CONDITIONING - WATER PIPING

WU340L-TKMMSV3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011

Engine W04D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0212-0610)GCC

Click highlighted areas on diagram

Part #	Description	Period	Qty

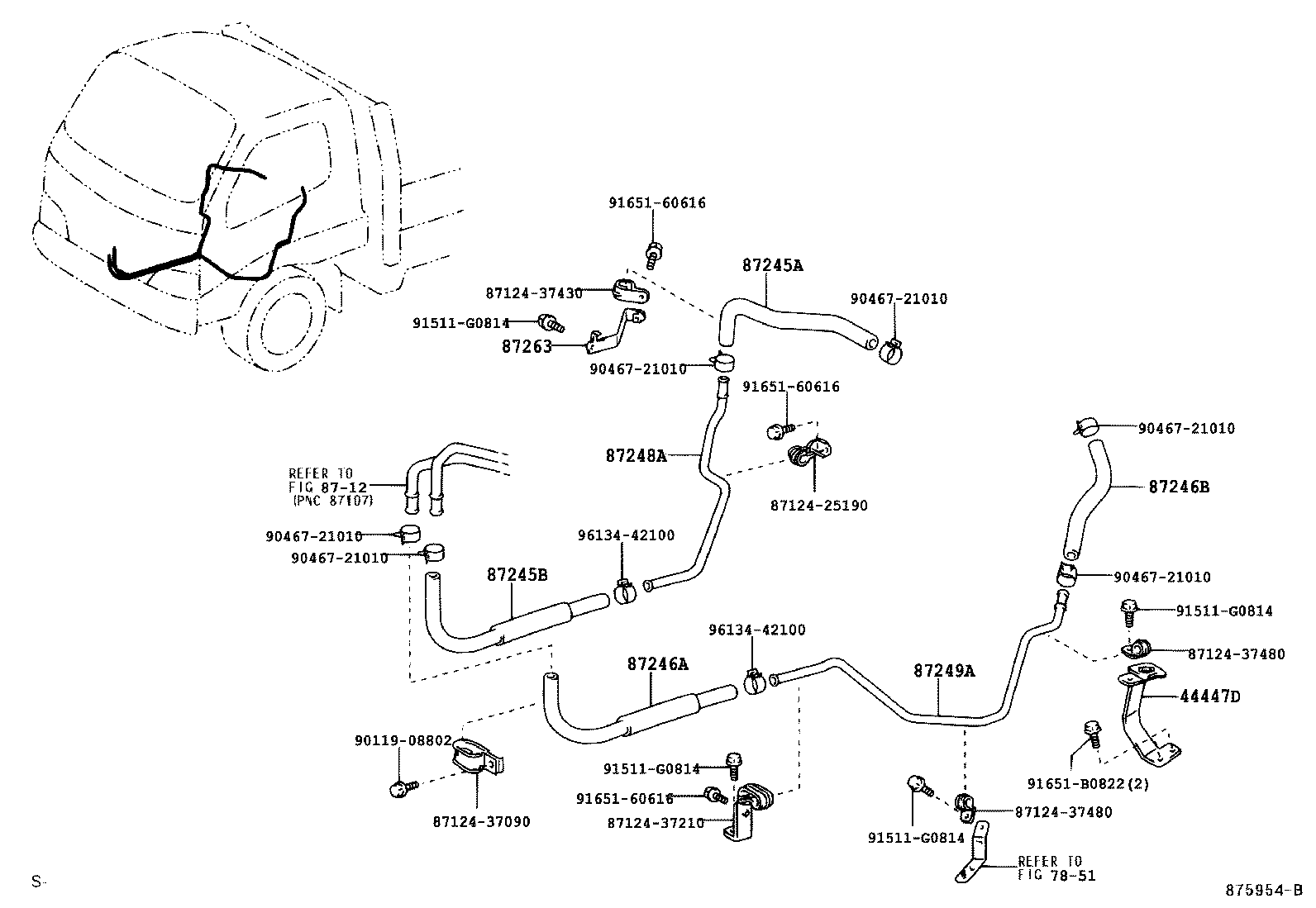

44447D - BRACKET, HOSE SUPPORT, NO.1
44447-37060	BU303,343,WU300,340..LHD	12/2002 - 05/2003	1
44447-37061	BU303,343,WU300,340..LHD	05/2003 - 10/2006	1
87245A - HOSE, HEATER WATER, INLET A
87245-3V480	WU300,340..GCC	12/2002 - 10/2006	1
99556-30500	WU30#,34#,XZU307,327,337,347..LHD *H,L=490	10/2006 - 12/2008	1
87245-37E30	WU30#,34#,XZU307,327,337,347..LHD	12/2008 - 06/2011	1
87245B - HOSE, HEATER WATER, INLET B
87245-3V120	BU303,343,WU300,340,XZU300,320,330,340..LHD L=490	12/2002 - 10/2006	1
87245-37C60	WU30#,34#..GCC,GEN,SA	10/2006 - 06/2011	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3V120	BU303,343,WU300,340,XZU300,320,330,340..LHD L=490	12/2002 - 10/2006	1
99556-30500	WU30#,34#,XZU307,327,337,347..LHD *H,L=490	10/2006 - 12/2008	1
87245-37E20	WU30#,34#,XZU307,327,337,347..LHD	12/2008 - 06/2011	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37650	WU30#,34#..GCC,GEN,SA	10/2006 - 06/2011	1
87246-37280	WU300,340..GCC	12/2002 - 10/2006	1
87248A - PIPE, HEATER WATER INLET, A
87248-37281	BU303,343,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
87248-37B50	WU30#,34#,XZU307,327,337,347..LHD	12/2008 - 06/2011	1
87248-37810	WU30#,34#,XZU307,327,337,347..LHD	10/2006 - 12/2008	1
87248-37510	WU300,340..GCC	12/2002 - 10/2006	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37520	WU300,340..GCC	12/2002 - 10/2006	1
87248-37B00	WU30#,34#..LHD	10/2006 - 12/2008	1
87248-37B80	WU30#,34#..LHD	12/2008 - 06/2011	1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-37100	WU300,340..GCC	12/2002 - 10/2006	1
Common parts
87124-25190
87124-37090
87124-37210
87124-37430
87124-37480
90119-08802
90467-21010
91511-G0814
91651-60616
91651-B0822
96134-42100
Linked diagrams
7851
8712

(0212-0610)BU303,343,XZU300,320,330,340..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44447D - BRACKET, HOSE SUPPORT, NO.1
44447-37060	BU303,343,WU300,340..LHD	12/2002 - 05/2003	1
44447-37061	BU303,343,WU300,340..LHD	05/2003 - 10/2006	1
87245A - HOSE, HEATER WATER, INLET A
87245-3V480	WU300,340..GCC	12/2002 - 10/2006	1
99556-30500	WU30#,34#,XZU307,327,337,347..LHD *H,L=490	10/2006 - 12/2008	1
87245-37E30	WU30#,34#,XZU307,327,337,347..LHD	12/2008 - 06/2011	1
87245B - HOSE, HEATER WATER, INLET B
87245-3V120	BU303,343,WU300,340,XZU300,320,330,340..LHD L=490	12/2002 - 10/2006	1
87245-37C60	WU30#,34#..GCC,GEN,SA	10/2006 - 06/2011	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3V120	BU303,343,WU300,340,XZU300,320,330,340..LHD L=490	12/2002 - 10/2006	1
99556-30500	WU30#,34#,XZU307,327,337,347..LHD *H,L=490	10/2006 - 12/2008	1
87245-37E20	WU30#,34#,XZU307,327,337,347..LHD	12/2008 - 06/2011	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37650	WU30#,34#..GCC,GEN,SA	10/2006 - 06/2011	1
87246-37280	WU300,340..GCC	12/2002 - 10/2006	1
87248A - PIPE, HEATER WATER INLET, A
87248-37281	BU303,343,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
87248-37B50	WU30#,34#,XZU307,327,337,347..LHD	12/2008 - 06/2011	1
87248-37810	WU30#,34#,XZU307,327,337,347..LHD	10/2006 - 12/2008	1
87248-37510	WU300,340..GCC	12/2002 - 10/2006	1
Common parts
55762-37070
87124-37090
87124-37210
87124-37290
90119-08802
90467-21010
91511-G0814
91642-H1020
91651-60616
91651-B0822
Linked diagrams
8712

(0610- )WU30#,34#..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty

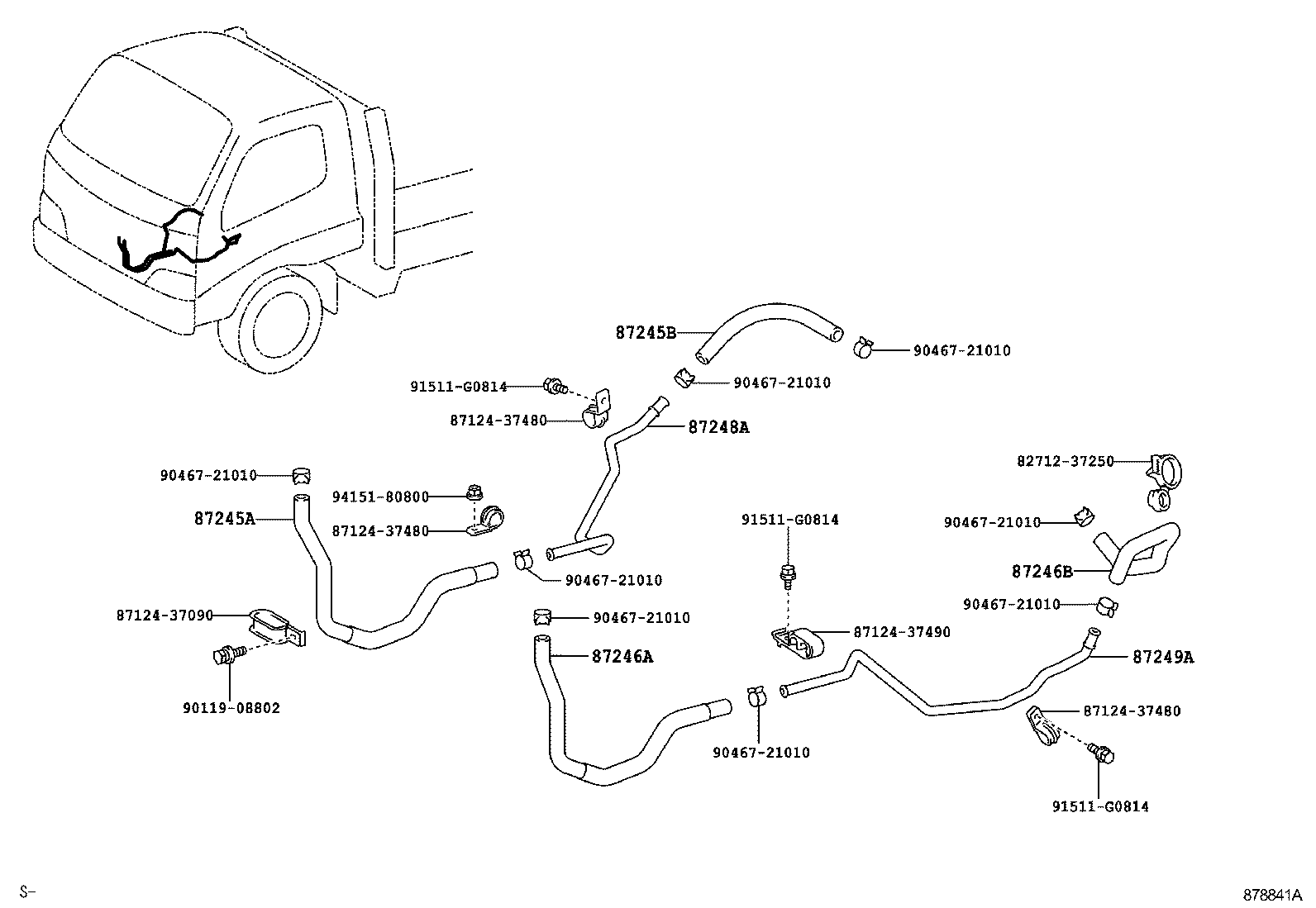

87245A - HOSE, HEATER WATER, INLET A
87245-3V480	WU300,340..GCC	12/2002 - 10/2006	1
99556-30500	WU30#,34#,XZU307,327,337,347..LHD *H,L=490	10/2006 - 12/2008	1
87245-37E30	WU30#,34#,XZU307,327,337,347..LHD	12/2008 - 06/2011	1
87245B - HOSE, HEATER WATER, INLET B
87245-3V120	BU303,343,WU300,340,XZU300,320,330,340..LHD L=490	12/2002 - 10/2006	1
87245-37C60	WU30#,34#..GCC,GEN,SA	10/2006 - 06/2011	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3V120	BU303,343,WU300,340,XZU300,320,330,340..LHD L=490	12/2002 - 10/2006	1
99556-30500	WU30#,34#,XZU307,327,337,347..LHD *H,L=490	10/2006 - 12/2008	1
87245-37E20	WU30#,34#,XZU307,327,337,347..LHD	12/2008 - 06/2011	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37650	WU30#,34#..GCC,GEN,SA	10/2006 - 06/2011	1
87246-37280	WU300,340..GCC	12/2002 - 10/2006	1
87248A - PIPE, HEATER WATER INLET, A
87248-37281	BU303,343,XZU300,320,330,340..LHD	12/2002 - 10/2006	1
87248-37B50	WU30#,34#,XZU307,327,337,347..LHD	12/2008 - 06/2011	1
87248-37810	WU30#,34#,XZU307,327,337,347..LHD	10/2006 - 12/2008	1
87248-37510	WU300,340..GCC	12/2002 - 10/2006	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37520	WU300,340..GCC	12/2002 - 10/2006	1
87248-37B00	WU30#,34#..LHD	10/2006 - 12/2008	1
87248-37B80	WU30#,34#..LHD	12/2008 - 06/2011	1
Common parts
82712-37250
87124-37090
87124-37480
87124-37490
90119-08802
90467-21010
91511-G0814
94151-80800
