Toyota Dyna WU340 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Manufacturers Home
Toyota
GR
DYNA
WU340L-TKMMSV3 (2002)
3302 - CLUTCH HOUSING & TRANSMISSION CASE (MTM)

WU340L-TKMMSV3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011

Engine W04D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0209-0610)WU300,340 ; (0610-0612)WU300,340..RHD..IV3 ; (0612-0712)SA

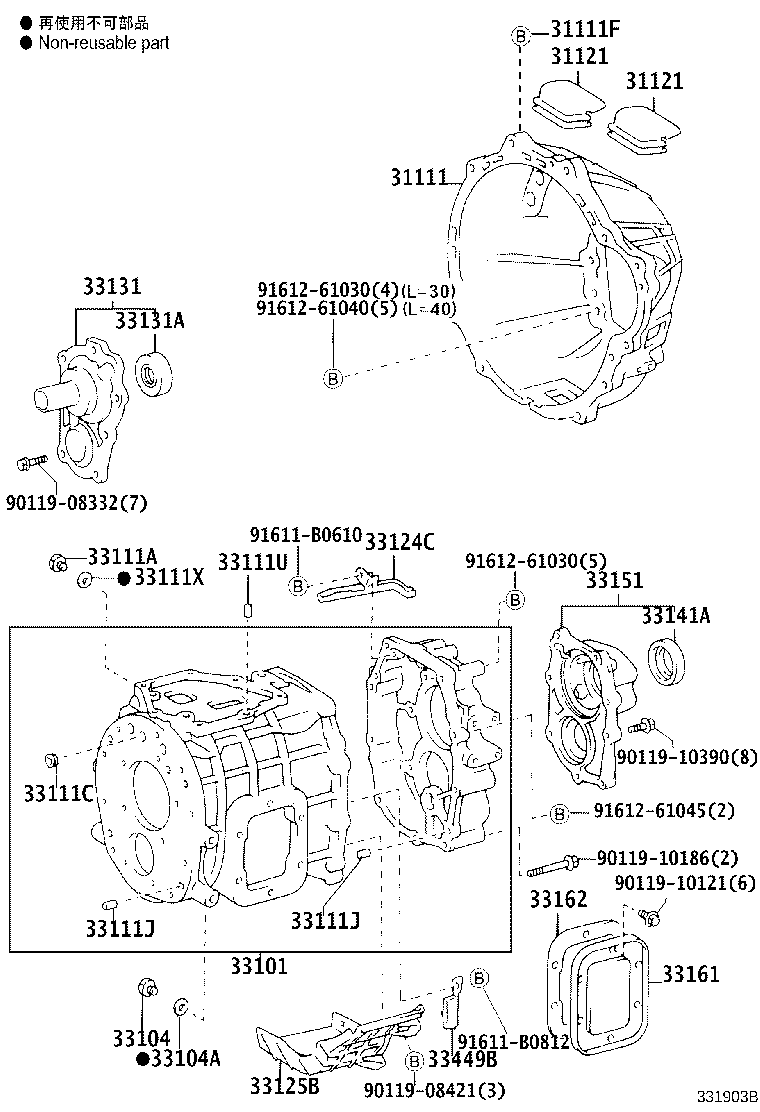

Click highlighted areas on diagram

M153

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-37050	XZU300,320,330,340	12/2002 - 10/2006	1
31111-37090	WU300,340..GCC	09/2002 - 10/2006	1
31111-37090	WU300,340..GCC,GEN	10/2006 - 06/2011	1
31111-37050	BU300,340	12/2002 - 12/2003	1
31111F - BOLT(FOR CLUTCH HOUSING & ENGINE SETTING)
90119-10898	WU300,340,XZU305,345..ARL,GCC	09/2002 - 10/2006	12
90119-10898	WU30#,34#..GCC,GEN	10/2006 - 06/2011	12
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	WU300,340..GCC	05/2003 - 10/2006	2
31121-28041	BU300,340	09/2002 - 12/2003	2
31121-28041	WU300,340..GCC,GEN	10/2006 - 06/2011	2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	WU300,340..GCC	05/2003 - 10/2006	2
31121-28041	BU300,340	09/2002 - 12/2003	2
31121-28041	WU300,340..GCC,GEN	10/2006 - 06/2011	2
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-36084	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33101-36084	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	BU300,340	09/2002 - 12/2003	1
90341-18006	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	1
90341-18006	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	BU300,340	09/2002 - 12/2003	1
90430-18008	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
90430-18008	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	BU300,340	09/2002 - 12/2003	1
90341-18006	WU300,340..GCC,GEN	10/2006 - 06/2011	1
90341-18006	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-11600	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	3
96411-11600	WU300,340..GCC,GEN	10/2006 - 06/2011	3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BU303,343,WU300,340..GCC,GEN L=16,OD=12	09/2002 - 10/2006	4
90250-12002	WU300,340..GCC,GEN L=16,OD=12	10/2006 - 06/2011	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BU303,343,WU300,340..GCC,GEN L=16,OD=12	09/2002 - 10/2006	4
90250-12002	WU300,340..GCC,GEN L=16,OD=12	10/2006 - 06/2011	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-13017	BU303,343,WU300,340..GCC,GEN L=12,OD=13	09/2002 - 10/2006	2
90253-11001	BU303,343,WU300,340..GCC,GEN L=11,OD=11	09/2002 - 10/2006	1
90253-13017	WU300,340..GCC,GEN L=12,OD=13	10/2006 - 06/2011	2
90253-11001	WU300,340..GCC,GEN L=11,OD=11	10/2006 - 06/2011	1
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
90430-18008	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-37010	XZU300,320,330,340	12/2002 - 10/2006	1
33124-37010	BU300,340	12/2002 - 12/2003	1
33124-36030	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33124-36030	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-37020	XZU300,320,330,340	12/2002 - 10/2006	1
33125-36020	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33125-37020	BU300,340	12/2002 - 12/2003	1
33125-36020	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-37010	WU300,340..GCC	09/2002 - 10/2006	1
33131-60070	BU300,340	12/2002 - 12/2003	1
33131-60070	XZU300,320,330,340	08/2003 - 10/2006	1
33018-37010	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-35023	BU300,340	09/2002 - 12/2003	1
90311-35023	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
90311-35023	XZU300,320,330,340	08/2003 - 10/2006	1
90311-35023	WU300,340,XZU305,345..ARL,GCC	09/2002 - 10/2006	1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
90311-48011	BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN	09/2002 - 10/2006	1
90311-48011	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-37011	XZU300,320,330,340	08/2003 - 10/2006	1
33151-37011	BU300,340	12/2002 - 12/2003	1
33017-36031	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33017-36031	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
33161-36010	BU300,340	09/2002 - 12/2003	1
33161-36010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020	BU300,340	09/2002 - 12/2003	1
33162-36020	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
33162-36020	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
33449B - MAGNET, TRANSMISSION
33449-36010	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33449-35010	BU300,340	12/2002 - 12/2003	1
33449-35010	XZU300,320,330,340	12/2002 - 10/2006	1
33449-36010	WU300,340..GCC,GEN	10/2006 - 06/2011	1
Common parts
90119-08332
90119-08421
90119-10121
90119-10186
90119-10390
91611-B0610
91611-B0812
91612-61030
91612-61040
91612-61045

(0212-0610)BU300,340,XZU300,320,330,340

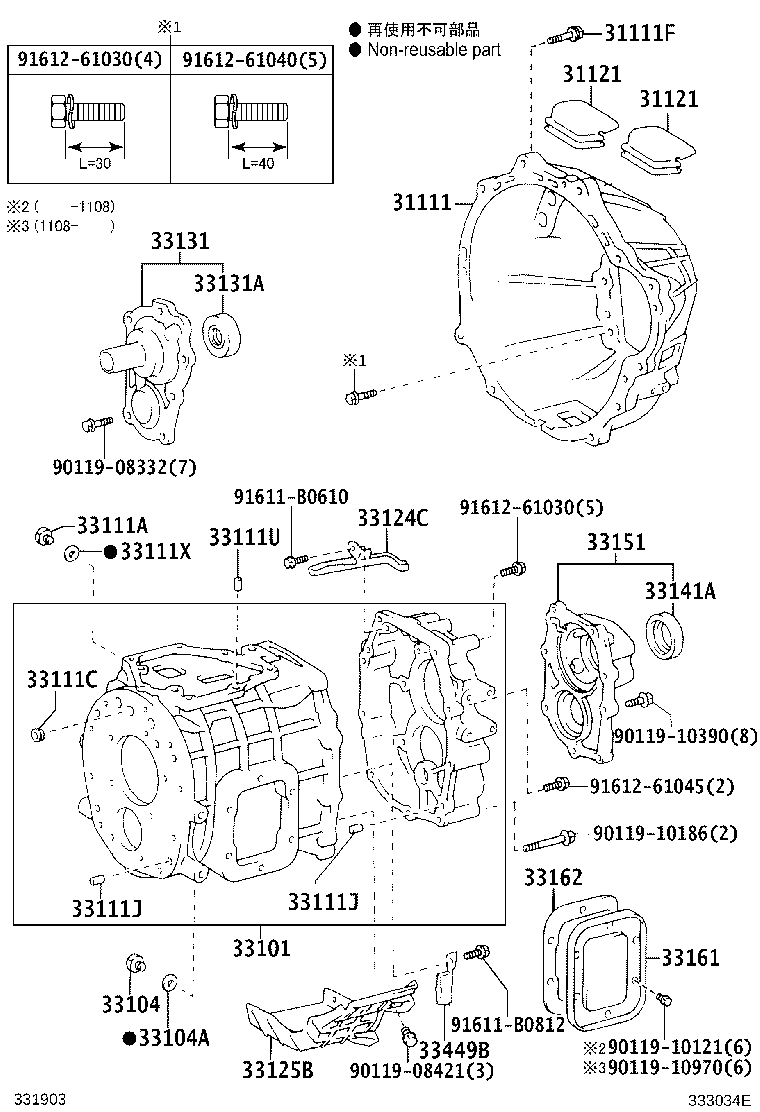

Click highlighted areas on diagram

H350

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-37050	XZU300,320,330,340	12/2002 - 10/2006	1
31111-37090	WU300,340..GCC	09/2002 - 10/2006	1
31111-37090	WU300,340..GCC,GEN	10/2006 - 06/2011	1
31111-37050	BU300,340	12/2002 - 12/2003	1
31112 - HOUSING, CLUTCH, FRONT
31112-37040	BU300,340	12/2002 - 12/2003	1
31112-37040	XZU300,320,330,340	12/2002 - 10/2006	1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	WU300,340..GCC	05/2003 - 10/2006	2
31121-28041	BU300,340	09/2002 - 12/2003	2
31121-28041	WU300,340..GCC,GEN	10/2006 - 06/2011	2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	WU300,340..GCC	05/2003 - 10/2006	2
31121-28041	BU300,340	09/2002 - 12/2003	2
31121-28041	WU300,340..GCC,GEN	10/2006 - 06/2011	2
31123 - COVER, CLUTCH HOUSING, NO.2
31121-36040	BU300,340	09/2002 - 12/2003	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	BU300,340	12/2002 - 12/2003	1
90430-18008	XZU30#,320,330,340,345	12/2002 - 10/2006	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	BU300,340	09/2002 - 12/2003	1
90341-18006	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	1
90341-18006	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	BU300,340	09/2002 - 12/2003	1
90430-18008	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
90430-18008	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
33111 - CASE, MANUAL TRANSMISSION
33111-37041	XZU300,320,330,340	12/2002 - 10/2006	1
33111-37041	BU300,340	12/2002 - 12/2003	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	BU300,340	09/2002 - 12/2003	1
90341-18006	WU300,340..GCC,GEN	10/2006 - 06/2011	1
90341-18006	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	1
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
90250-12002	XZU300,320,330,340	12/2002 - 10/2006	6
90250-12002	BU300,340	12/2002 - 12/2003	6
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
90250-12002	XZU300,320,330,340	12/2002 - 10/2006	6
90250-12002	BU300,340	12/2002 - 12/2003	6
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
90250-12002	XZU300,320,330,340	12/2002 - 10/2006	6
90250-12002	BU300,340	12/2002 - 12/2003	6
33112E - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)
90341-12008	BU300,340	12/2002 - 12/2003	1
90341-12008	XZU300,320,330,340	12/2002 - 10/2006	1
33112G - CASE, TRANSMISSION, REAR
33112-37010	XZU300,320,330,340	12/2002 - 10/2006	1
33112-37010	BU300,340	12/2002 - 12/2003	1
33115 - PLATE, TRANSMISSION OIL FILTER
33115-37010	BU300,340	12/2002 - 12/2003	1
33115-37010	XZU300,320,330,340	12/2002 - 10/2006	1
33118 - PLATE, STIFFENER, RH(MTM)
33118-37040	BU300,340	12/2002 - 12/2003	1
33118-37040	XZU300,320,330,340	12/2002 - 10/2006	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-37020	XZU300,320,330,340	12/2002 - 10/2006	1
33119-37020	BU300,340	12/2002 - 12/2003	1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-37010	XZU300,320,330,340	12/2002 - 10/2006	1
33124-37010	BU300,340	12/2002 - 12/2003	1
33124-36030	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33124-36030	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60814	XZU300,320,330,340	12/2002 - 10/2006	2
91611-60814	BU300,340	12/2002 - 12/2003	2
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-37020	XZU300,320,330,340	12/2002 - 10/2006	1
33125-36020	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33125-37020	BU300,340	12/2002 - 12/2003	1
33125-36020	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-37010	WU300,340..GCC	09/2002 - 10/2006	1
33131-60070	BU300,340	12/2002 - 12/2003	1
33131-60070	XZU300,320,330,340	08/2003 - 10/2006	1
33018-37010	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-35023	BU300,340	09/2002 - 12/2003	1
90311-35023	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
90311-35023	XZU300,320,330,340	08/2003 - 10/2006	1
90311-35023	WU300,340,XZU305,345..ARL,GCC	09/2002 - 10/2006	1
33136 - PLATE, TRANSMISSION INTERMEDIATE
33136-37011	BU300,340	12/2002 - 12/2003	1
33136-37011	XZU300,320,330,340	12/2002 - 10/2006	1
33139E - COVER, OIL PUMP
33139-36010	XZU300,320,330,340	12/2002 - 10/2006	1
33139-36010	BU300,340	12/2002 - 12/2003	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-37011	XZU300,320,330,340	08/2003 - 10/2006	1
33151-37011	BU300,340	12/2002 - 12/2003	1
33017-36031	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33017-36031	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33151K - SEAL, TYPE T OIL
90311-48011	XZU300,320,330,340	08/2003 - 10/2006	1
90311-48011	BU300,340	12/2002 - 12/2003	1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
33161-36010	BU300,340	09/2002 - 12/2003	1
33161-36010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020	BU300,340	09/2002 - 12/2003	1
33162-36020	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
33162-36020	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
33408B - STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL(FOR REAR CAS
33408-37010	BU300,340	12/2002 - 12/2003	1
33408-37010	XZU300,320,330,340	12/2002 - 10/2006	1
33408C - RING, O (FOR MANUAL TRANSMISSION OIL STRAINER)
96721-19009	XZU300,320,330,340	12/2002 - 10/2006	1
96721-19009	BU300,340	12/2002 - 12/2003	1
33449B - MAGNET, TRANSMISSION
33449-36010	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33449-35010	BU300,340	12/2002 - 12/2003	1
33449-35010	XZU300,320,330,340	12/2002 - 10/2006	1
33449-36010	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33471A - SHAFT, OIL PUMP DRIVE (FOR COUNTER GEAR)
33471-36010	XZU300,320,330,340	12/2002 - 10/2006	1
33471-36010	BU300,340	12/2002 - 12/2003	1
36185D - ROTOR, TRANSFER OIL PUMP DRIVE(FOR COUNTER GEAR REAR)
36185-60030	BU300,340	12/2002 - 12/2003	1
36185-60030	XZU300,320,330,340	12/2002 - 10/2006	1
36186D - ROTOR, TRANSFER OIL PUMP DRIVEN (FOR COUNTER GEAR REAR)
36186-60010	BU300,340	12/2002 - 12/2003	1
36186-60010	XZU300,320,330,340	12/2002 - 10/2006	1
Common parts
90119-08333
90119-10019
90119-10121
90119-10188
90119-10201
90149-60053
90250-10025
90250-12002
90341-16013
90360-10003
90501-10127
91611-60814
91611-G0820
91612-61030
91612-61035
91612-61045
91619-61235
91619-61250
Linked diagrams
3305

(0610- )DCRTH,DCRTP..IDN ; (0610- )WU300,340..GCC,GEN ; (0802- )SA

Click highlighted areas on diagram

M153

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-37050	XZU300,320,330,340	12/2002 - 10/2006	1
31111-37090	WU300,340..GCC	09/2002 - 10/2006	1
31111-37090	WU300,340..GCC,GEN	10/2006 - 06/2011	1
31111-37050	BU300,340	12/2002 - 12/2003	1
31111F - BOLT(FOR CLUTCH HOUSING & ENGINE SETTING)
90119-10898	WU300,340,XZU305,345..ARL,GCC	09/2002 - 10/2006	12
90119-10898	WU30#,34#..GCC,GEN	10/2006 - 06/2011	12
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	WU300,340..GCC	05/2003 - 10/2006	2
31121-28041	BU300,340	09/2002 - 12/2003	2
31121-28041	WU300,340..GCC,GEN	10/2006 - 06/2011	2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	WU300,340..GCC	05/2003 - 10/2006	2
31121-28041	BU300,340	09/2002 - 12/2003	2
31121-28041	WU300,340..GCC,GEN	10/2006 - 06/2011	2
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-36084	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33101-36084	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	BU300,340	09/2002 - 12/2003	1
90341-18006	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	1
90341-18006	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	BU300,340	09/2002 - 12/2003	1
90430-18008	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
90430-18008	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	BU300,340	09/2002 - 12/2003	1
90341-18006	WU300,340..GCC,GEN	10/2006 - 06/2011	1
90341-18006	BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW	09/2002 - 10/2006	1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-11600	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	3
96411-11600	WU300,340..GCC,GEN	10/2006 - 06/2011	3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BU303,343,WU300,340..GCC,GEN L=16,OD=12	09/2002 - 10/2006	4
90250-12002	WU300,340..GCC,GEN L=16,OD=12	10/2006 - 06/2011	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BU303,343,WU300,340..GCC,GEN L=16,OD=12	09/2002 - 10/2006	4
90250-12002	WU300,340..GCC,GEN L=16,OD=12	10/2006 - 06/2011	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-13017	BU303,343,WU300,340..GCC,GEN L=12,OD=13	09/2002 - 10/2006	2
90253-11001	BU303,343,WU300,340..GCC,GEN L=11,OD=11	09/2002 - 10/2006	1
90253-13017	WU300,340..GCC,GEN L=12,OD=13	10/2006 - 06/2011	2
90253-11001	WU300,340..GCC,GEN L=11,OD=11	10/2006 - 06/2011	1
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
90430-18008	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-37010	XZU300,320,330,340	12/2002 - 10/2006	1
33124-37010	BU300,340	12/2002 - 12/2003	1
33124-36030	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33124-36030	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-37020	XZU300,320,330,340	12/2002 - 10/2006	1
33125-36020	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33125-37020	BU300,340	12/2002 - 12/2003	1
33125-36020	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-37010	WU300,340..GCC	09/2002 - 10/2006	1
33131-60070	BU300,340	12/2002 - 12/2003	1
33131-60070	XZU300,320,330,340	08/2003 - 10/2006	1
33018-37010	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-35023	XZU300,320,330,340	08/2003 - 10/2006	1
90311-35023	BU300,340	09/2002 - 12/2003	1
90311-35023	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
90311-35023	WU300,340,XZU305,345..ARL,GCC	09/2002 - 10/2006	1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
90311-48011	BU303,343,WU300,340,XZU305,345..ARL,GCC,GEN	09/2002 - 10/2006	1
90311-48011	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-37011	XZU300,320,330,340	08/2003 - 10/2006	1
33151-37011	BU300,340	12/2002 - 12/2003	1
33017-36031	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33017-36031	WU300,340..GCC,GEN	10/2006 - 06/2011	1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36010	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
33161-36010	BU300,340	09/2002 - 12/2003	1
33161-36010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020	BU300,340	09/2002 - 12/2003	1
33162-36020	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
33162-36020	BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW	09/2002 - 10/2006	1
33449B - MAGNET, TRANSMISSION
33449-36010	BU303,343,WU300,340..GCC,GEN	09/2002 - 10/2006	1
33449-35010	BU300,340	12/2002 - 12/2003	1
33449-35010	XZU300,320,330,340	12/2002 - 10/2006	1
33449-36010	WU300,340..GCC,GEN	10/2006 - 06/2011	1
Common parts
90119-08332
90119-08421
90119-10121
90119-10186
90119-10390
90119-10970
91611-B0610
91611-B0812
91612-61030
91612-61040
91612-61045

WU340L-TKMMSV3 (2002)

(0209-0610)WU300,340 ; (0610-0612)WU300,340..RHD..IV3 ; (0612-0712)SA

(0212-0610)BU300,340,XZU300,320,330,340

(0610- )DCRTH,DCRTP..IDN ; (0610- )WU300,340..GCC,GEN ; (0802- )SA

Part Price Details
