WU340L-TKMMSV3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )W04D..WU30#,342..GEN ; (0610- )W04D..WU340..GCC,GEN

Click highlighted areas on diagram

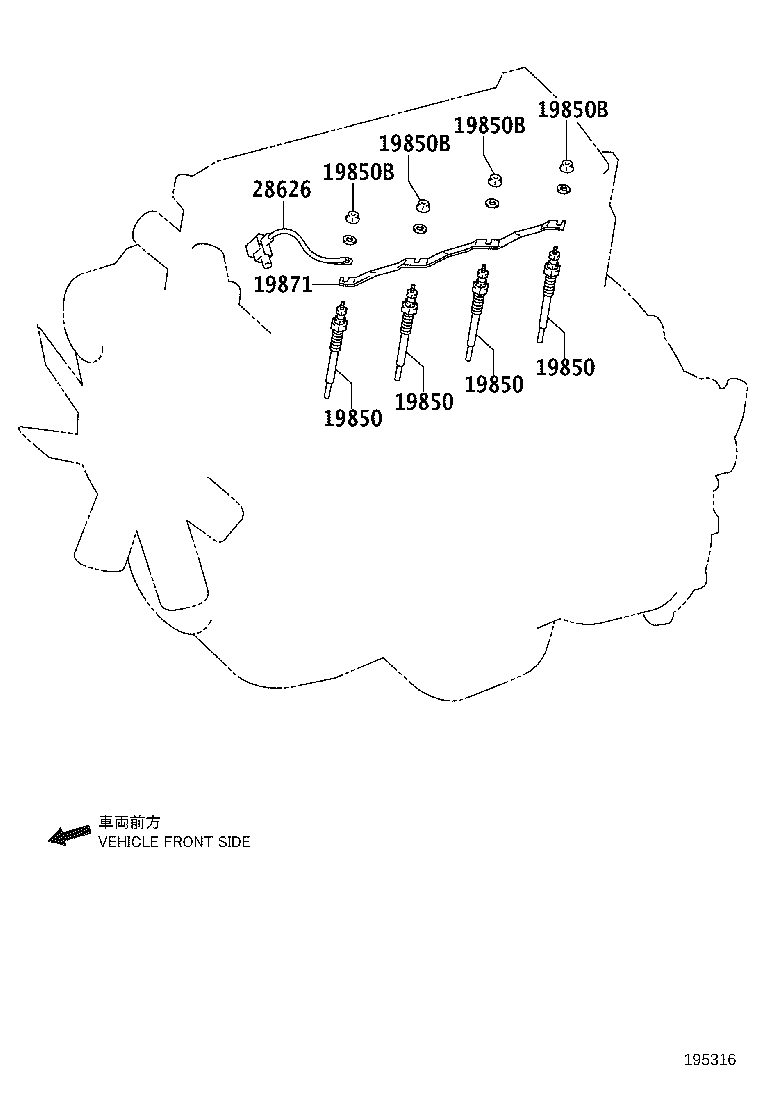

diagram 19850 19850 19850 19850 19850B 19850B 19850B 19850B 19871 28626
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-78031

W04D..WU30#,342..GEN;W04D..WU340..GCC,GEN

*BV-GV=24V-23V

 4
19850 - PLUG ASSY, GLOW
19850-78031

W04D..WU30#,342..GEN;W04D..WU340..GCC,GEN

*BV-GV=24V-23V

 4
19850 - PLUG ASSY, GLOW
19850-78031

W04D..WU30#,342..GEN;W04D..WU340..GCC,GEN

*BV-GV=24V-23V

 4
19850 - PLUG ASSY, GLOW
19850-78031

W04D..WU30#,342..GEN;W04D..WU340..GCC,GEN

*BV-GV=24V-23V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

W04D..WU30#,342..GEN;W04D..WU340..GCC,GEN

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

W04D..WU30#,342..GEN;W04D..WU340..GCC,GEN

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

W04D..WU30#,342..GEN;W04D..WU340..GCC,GEN

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

W04D..WU30#,342..GEN;W04D..WU340..GCC,GEN

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-78021

W04D..WU30#,342..GEN;W04D..WU340..GCC,GEN

 1
28626 - WIRE, GLOW PLUG
28626-78041

W04D..WU30#,342..GEN;W04D..WU340..GCC,GEN

 1
