WU340L-TKMMS (2006)
Toyota Dyna
(0610- )W04D..WU30#,34#..GCC,GEN,SA ; (0612-0906)W04D..WU302,342..IDN

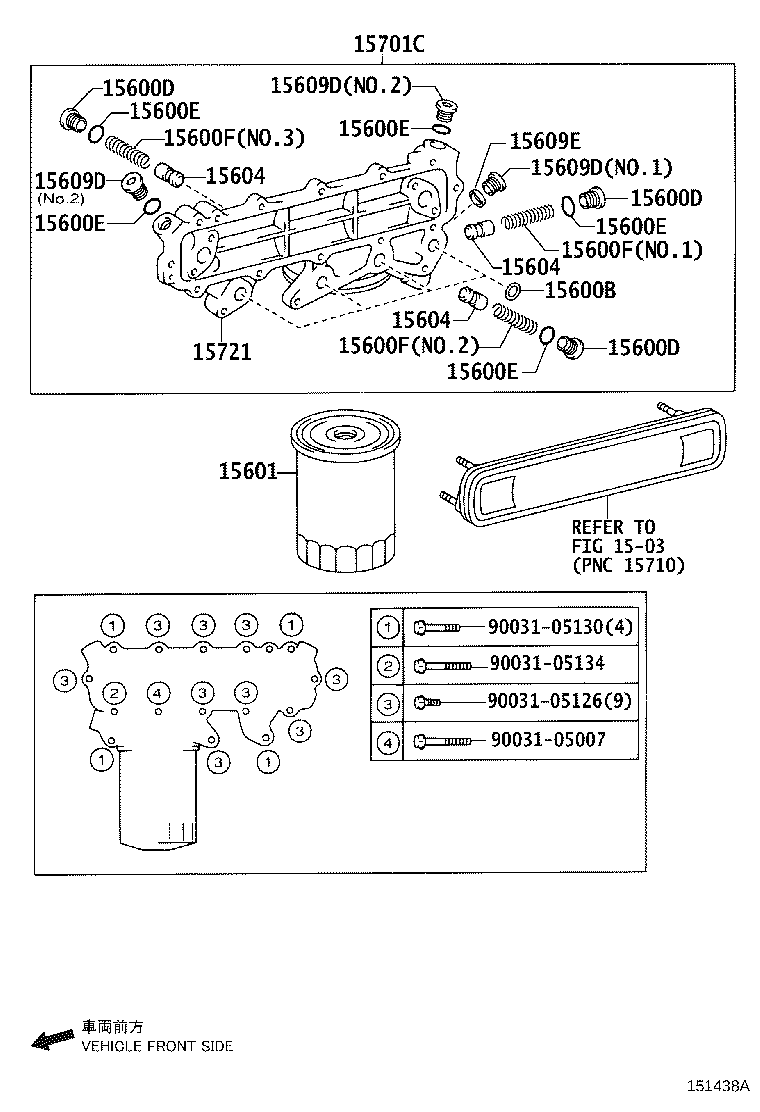

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600B - RING, O, NO.1(FOR OIL FILTER) | ||||
| 90301-19005 |
W04D..WU302,342;W04D..WU300,340..GCC,GEN,SA |
4 | ||
| 90033-01101 |
W04D..WU30#,34#..DCRTH,DCRTJ,DSL |
4 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89107 |
W04D..WU30#,34#..GCC,GEN,SA |
3 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89107 |
W04D..WU30#,34#..GCC,GEN,SA |
3 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89107 |
W04D..WU30#,34#..GCC,GEN,SA |
3 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90033-01053 |
W04D..WU30#,34#..GCC,GEN,SA |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90033-01053 |
W04D..WU30#,34#..GCC,GEN,SA |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90033-01053 |
W04D..WU30#,34#..GCC,GEN,SA |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90033-01053 |
W04D..WU30#,34#..GCC,GEN,SA |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90033-01053 |
W04D..WU30#,34#..GCC,GEN,SA |
5 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 15532-89105 |
W04D..WU300,340..GCC,GEN,SA NO.2 |
1 | ||
| 15532-89101 |
W04D..WU30#,34#..GCC,GEN,SA NO.1 |
1 | ||
| 15661-78010 |
W04D..WU30#,34#..GCC,GEN,SA NO.3 |
1 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 15532-89105 |
W04D..WU300,340..GCC,GEN,SA NO.2 |
1 | ||
| 15532-89101 |
W04D..WU30#,34#..GCC,GEN,SA NO.1 |
1 | ||
| 15661-78010 |
W04D..WU30#,34#..GCC,GEN,SA NO.3 |
1 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 15532-89105 |
W04D..WU300,340..GCC,GEN,SA NO.2 |
1 | ||
| 15532-89101 |
W04D..WU30#,34#..GCC,GEN,SA NO.1 |
1 | ||
| 15661-78010 |
W04D..WU30#,34#..GCC,GEN,SA NO.3 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15613-89106 |
W04D..WU300,340..GCC,GEN,SA |
1 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| 15690-89101 |
W04D..WU30#,34#..GCC,GEN,SA |
3 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| 15690-89101 |
W04D..WU30#,34#..GCC,GEN,SA |
3 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| 15690-89101 |
W04D..WU30#,34#..GCC,GEN,SA |
3 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 15529-89109 |
W04D..WU30#,34#..GCC,GEN,SA NO.2 |
2 | ||
| 15529-89108 |
W04D..WU30#,34#..GCC,GEN,SA NO.1 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 15529-89109 |
W04D..WU30#,34#..GCC,GEN,SA NO.2 |
2 | ||
| 15529-89108 |
W04D..WU30#,34#..GCC,GEN,SA NO.1 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 15529-89109 |
W04D..WU30#,34#..GCC,GEN,SA NO.2 |
2 | ||
| 15529-89108 |
W04D..WU30#,34#..GCC,GEN,SA NO.1 |
1 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90033-01067 |
W04D..WU30#,34#..GCC,GEN,SA |
1 | ||
| 15701C - COVER SUB-ASSY, OIL COOLER | ||||
| 15720-89105 |
W04D..WU300,340..GCC,GEN,SA |
1 | ||
| 15721 - COVER, OIL COOLER | ||||
| 15701-89107 |
W04D..WU300,340..GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 90031-05007 | ||||
| 90031-05126 | ||||
| 90031-05130 | ||||
| 90031-05134 | ||||
| Linked diagrams | ||||
| 1503 | ||||
