WU302R-TKMLHD3 (2009)

Toyota Dyna

Production Dec 2009 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0912- )DCRTP,DCRTR

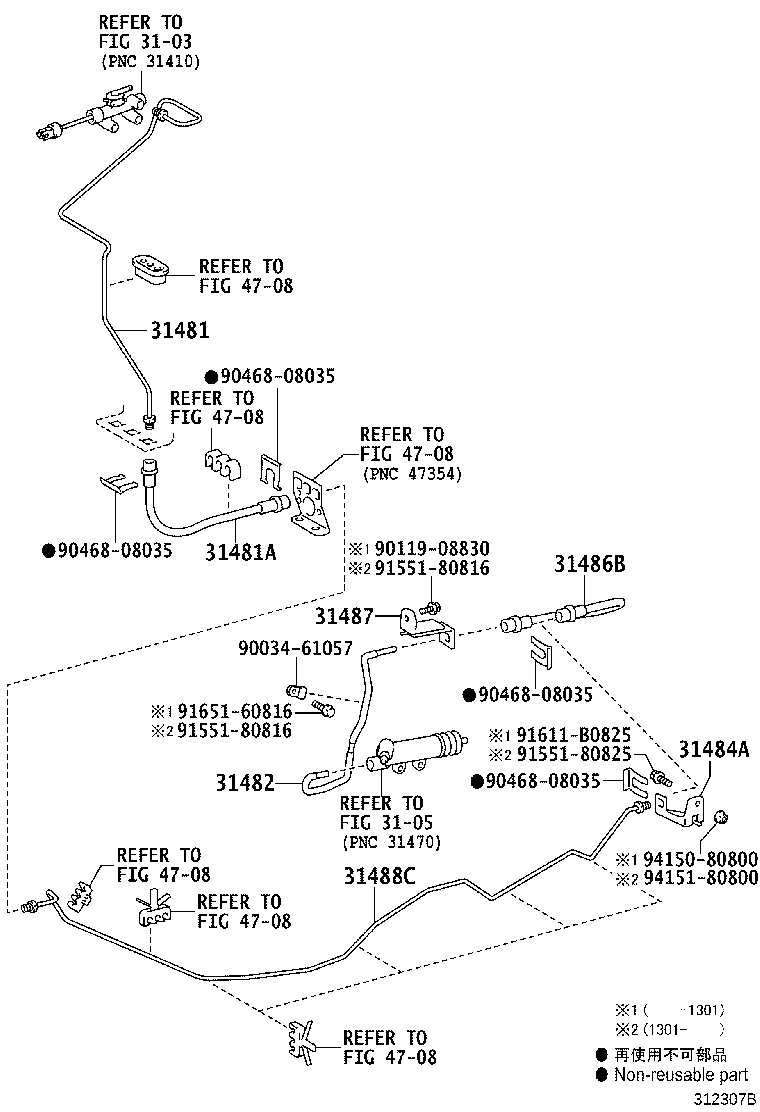

Click highlighted areas on diagram

diagram 3103 3105 31481 31481A 31482 31484A 31486B 31487 31488C 4708 4708 4708 4708 4708 4708 9003461057 9011908830 9046808035 9046808035 9046808035 9046808035 9155180816 9155180816 9155180825 91611B0825 9165160816 9415080800 9415180800
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0W070

WU302,342..DCRTP

 1
31481-0W060

WU302,342..DCRTP..IV3

 1
31481A - HOSE, CLUTCH, NO.1
90931-01143

WU302,342..DCRTP,DCRTR

 1
31486-37110

WU302,342,352

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-0W040

WU302,342,352..DCRTP

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-0W010

WU302,342,352..DCRTP,DCRTR

 1
31486B - HOSE, MASTER CYLINDER TO RELEASE CYLINDER
31486-37060

WU302,342,352..DCRTP,DCRTR

 1
31487 - PLATE, RELEASE TUBE SET
31487-0W010

WU302,342,352..DCRTP,DCRTR

 1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31488-0W040

WU302,342,352..DCRTP,DCRTR

 1
Common parts
90034-61057
90119-08830
90468-08035
91551-80816
91551-80825
91611-B0825
91651-60816
94150-80800
94151-80800
