WU302R-TKMLHD3 (2009)

Toyota Dyna

Production Dec 2009 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0912-1407)W04D..WU302,342..DCRTP,DCRTR

Click highlighted areas on diagram

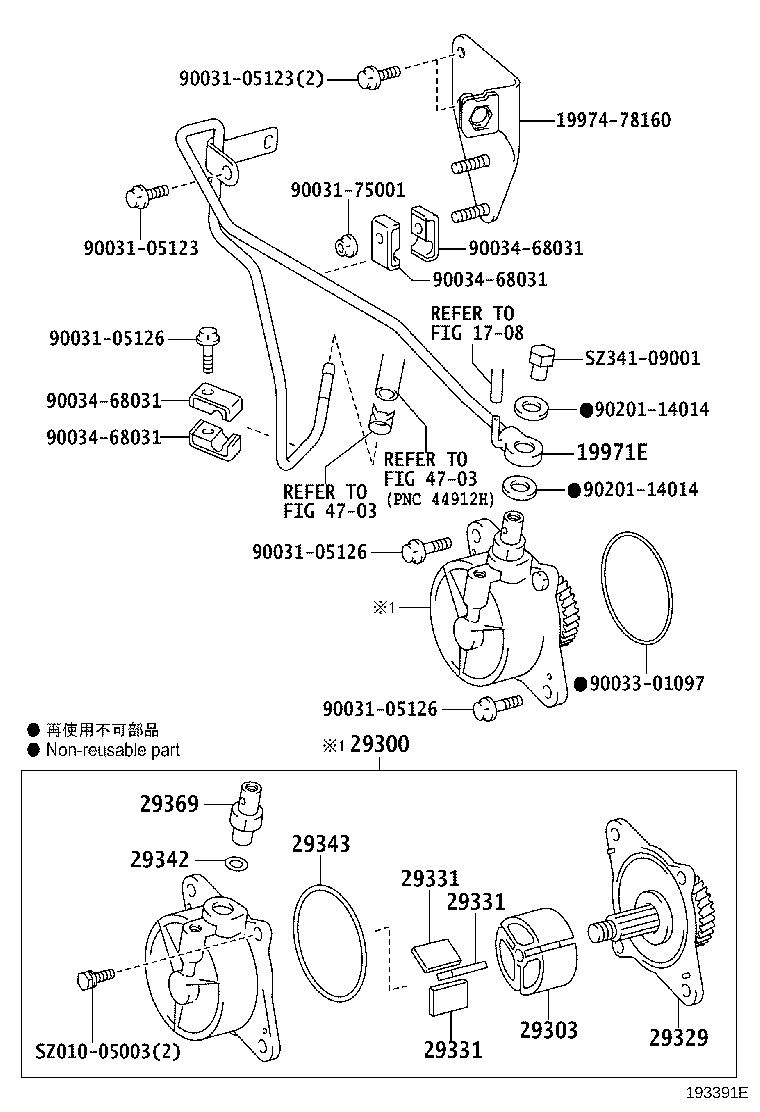

diagram 1708 19971E 1997478160 29300 29303 29329 29331 29331 29331 29342 29343 29369 4703 4703 9003105123 9003105123 9003105126 9003105126 9003105126 9003175001 9003301097 9003468031 9003468031 9003468031 9003468031 9020114014 9020114014 SZ01005003 SZ34109001
Part # Description Qty Price
19971E - PIPE, VACUUM
87207-EW010

W04D..WU302,342,352

 1
87207-37C91

W04D..WU302,342..DCRTP,DCRTR

 1
29300 - PUMP ASSY, VACUUM
29300-78080

W04D..WU302,342..DCRTP,DCRTR

 1
29300-E0120

W04D..WU302,342,352..DCRTP

 1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29303-EV010

W04D..WU302,342,352..DCRTP

 1
29329 - CAP, VACUUM PUMP VANE
29329-EV010

W04D..WU302,342..DCRTP,DCRTR

 1
29329-EV020

W04D..WU302,342,352..DCRTP

 1
29331 - BLADE, VACUUM PUMP, A
29331-EV010

W04D..WU302,342,352..DCRTP

 3
29331 - BLADE, VACUUM PUMP, A
29331-EV010

W04D..WU302,342,352..DCRTP

 3
29331 - BLADE, VACUUM PUMP, A
29331-EV010

W04D..WU302,342,352..DCRTP

 3
29342 - PACKING, VACUUM PUMP
29342-EV010

W04D..WU302,342,352..DCRTP

 1
29343 - RING, O VACUUM PUMP, NO.1
29343-EV010

W04D..WU302,342..DCRTP,DCRTR

 1
29343-EV010

W04D..WU302,342..DCRTP..IV3

 1
29369 - VALVE SUB-ASSY, CHECK
29369-EV050

W04D..WU302,342..DCRTP,DCRTR

 1
29369-EV050

W04D..WU302,342,352..DCRTP

 1
Common parts
19974-78160
90031-05123
90031-05126
90031-75001
90033-01097
90034-68031
90201-14014
SZ010-05003
SZ341-09001
Linked diagrams
1708
4703

(1407- )

Click highlighted areas on diagram

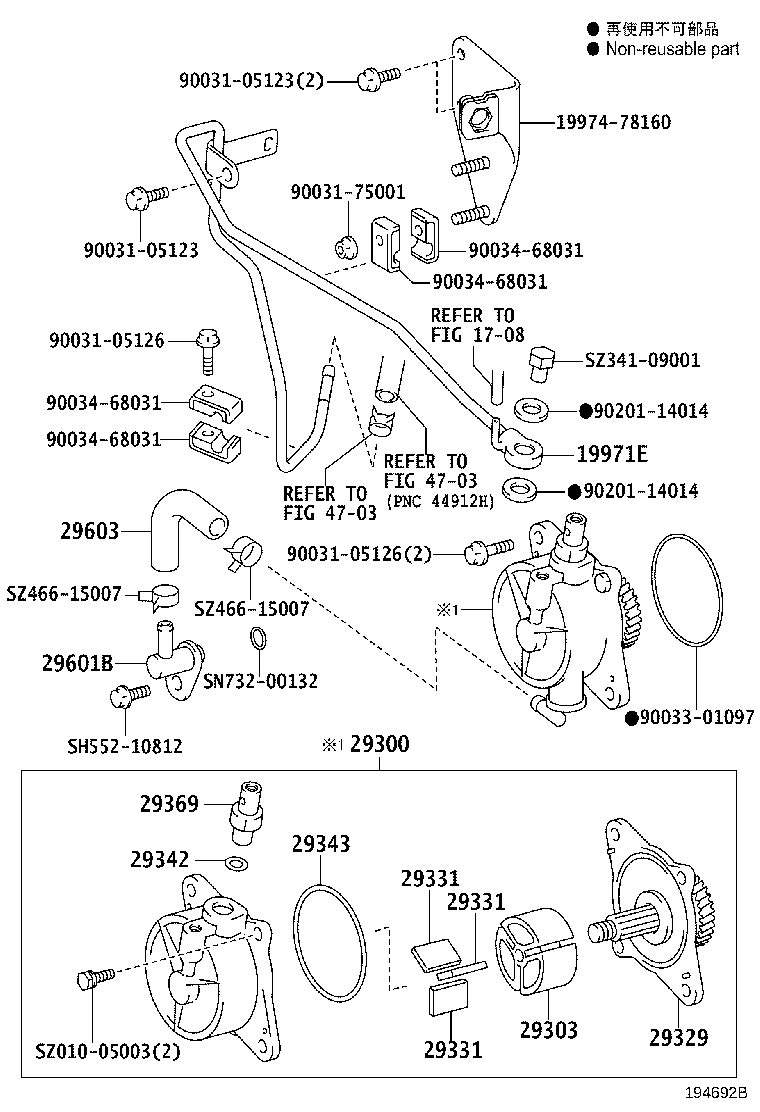

diagram 1708 19971E 1997478160 29300 29303 29329 29331 29331 29331 29342 29343 29369 29601B 29603 4703 4703 9003105123 9003105123 9003105126 9003105126 9003175001 9003301097 9003468031 9003468031 9003468031 9003468031 9020114014 9020114014 SH55210812 SN73200132 SZ01005003 SZ34109001 SZ46615007 SZ46615007
Part # Description Qty Price
19971E - PIPE, VACUUM
87207-EW010

W04D..WU302,342,352

 1
87207-37C91

W04D..WU302,342..DCRTP,DCRTR

 1
29300 - PUMP ASSY, VACUUM
29300-78080

W04D..WU302,342..DCRTP,DCRTR

 1
29300-E0120

W04D..WU302,342,352..DCRTP

 1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29303-EV010

W04D..WU302,342,352..DCRTP

 1
29329 - CAP, VACUUM PUMP VANE
29329-EV010

W04D..WU302,342..DCRTP,DCRTR

 1
29329-EV020

W04D..WU302,342,352..DCRTP

 1
29331 - BLADE, VACUUM PUMP, A
29331-EV010

W04D..WU302,342,352..DCRTP

 3
29331 - BLADE, VACUUM PUMP, A
29331-EV010

W04D..WU302,342,352..DCRTP

 3
29331 - BLADE, VACUUM PUMP, A
29331-EV010

W04D..WU302,342,352..DCRTP

 3
29342 - PACKING, VACUUM PUMP
29342-EV010

W04D..WU302,342,352..DCRTP

 1
29343 - RING, O VACUUM PUMP, NO.1
29343-EV010

W04D..WU302,342..DCRTP,DCRTR

 1
29343-EV010

W04D..WU302,342..DCRTP..IV3

 1
29369 - VALVE SUB-ASSY, CHECK
29369-EV050

W04D..WU302,342..DCRTP,DCRTR

 1
29369-EV050

W04D..WU302,342,352..DCRTP

 1
29601B - PIPE SUB-ASSY, OIL(FOR VACUUM PUMP)
87207-E0230

W04D..WU302,342,352

 1
29603 - PIPE, VACUUM PUMP OIL OUTLET
29603-E0390

W04D..WU302,342,352

 1
Common parts
19974-78160
90031-05123
90031-05126
90031-75001
90033-01097
90034-68031
90201-14014
SH552-10812
SN732-00132
SZ010-05003
SZ341-09001
SZ466-15007
Linked diagrams
1708
4703
