WU302R-TKMLAD3 (2006)

Toyota Dyna

Production Dec 2006 - May 2010
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0612- )W04D..WU302,342..DCRTH,DCRTJ..IDN

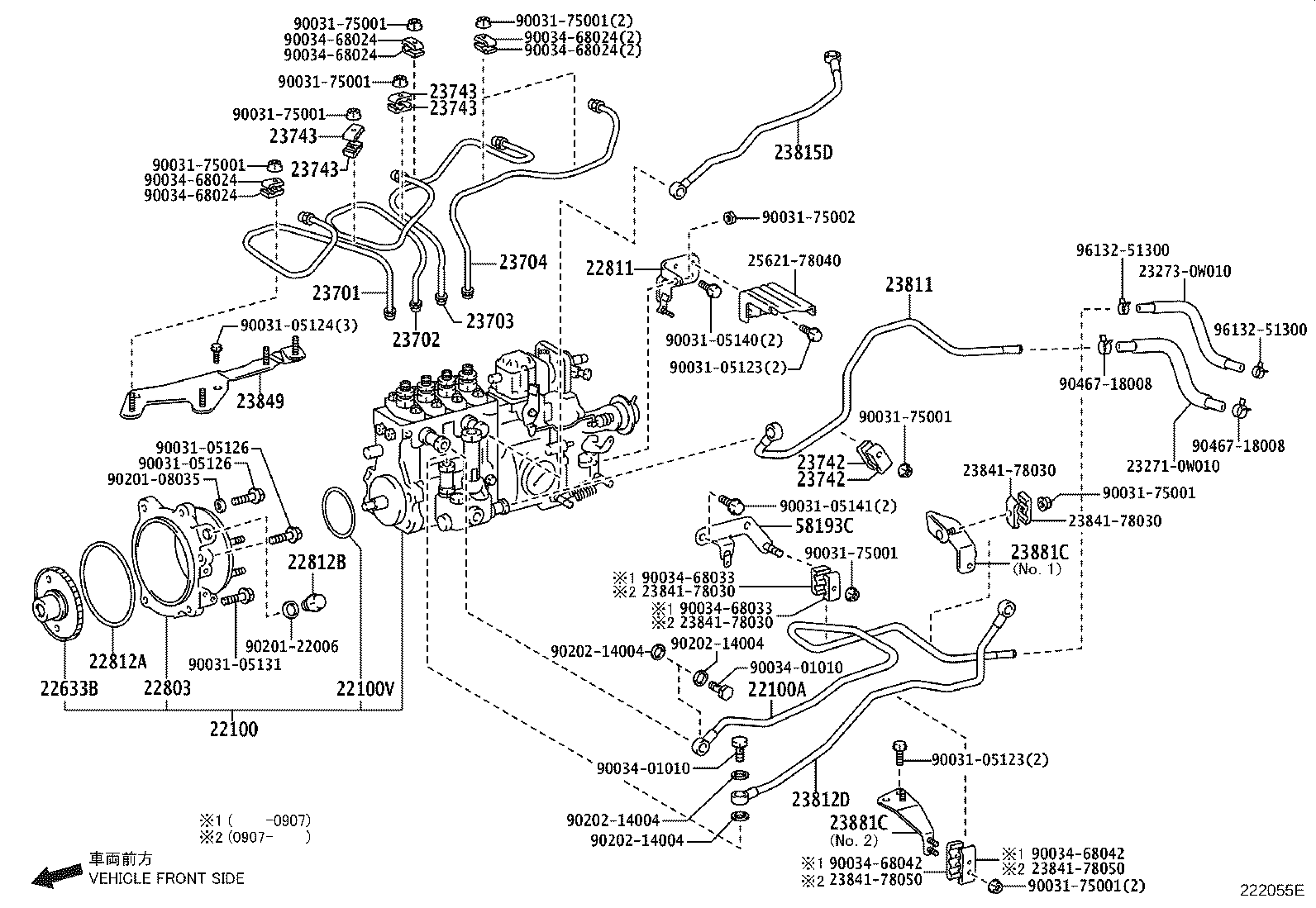

Click highlighted areas on diagram

diagram 22100 22100A 22100V 22633B 22803 22811 22812A 22812B 232710W010 232730W010 23701 23702 23703 23704 23742 23742 23743 23743 23743 23743 23811 23812D 23815D 2384178030 2384178030 2384178030 2384178030 2384178050 2384178050 23849 23881C 23881C 2562178040 58193C 9003105123 9003105123 9003105124 9003105126 9003105126 9003105131 9003105140 9003105141 9003175001 9003175001 9003175001 9003175001 9003175001 9003175001 9003175001 9003175001 9003175001 9003175002 9003401010 9003401010 9003468024 9003468024 9003468024 9003468024 9003468024 9003468024 9003468033 9003468033 9003468042 9003468042 9020108035 9020122006 9020214004 9020214004 9020214004 9020214004 9046718008 9046718008 9613251300 9613251300
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22010-78481

W04D..WU302,342..DCRTH..T3

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23814-78130

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
22633B - FLANGE, COUPLING
22633-78400

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-78120

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23841-78040

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 2
23742 - CLAMP, INJECTION PIPE, NO.2
23841-78040

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-78180

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
23812D - PIPE, FUEL, NO.2
23812-78100

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
23815D - PIPE, FUEL, NO.3
23815-78030

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
23849 - SUPPORT, FUEL
23849-78141

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
23881C - BRACKET, FUEL HOSE
23881-78040

W04D..WU302,342..DCRTH..T3

NO.1

 1
23881-78070

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

NO.2

 1
23881C - BRACKET, FUEL HOSE
23881-78040

W04D..WU302,342..DCRTH..T3

NO.1

 1
23881-78070

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

NO.2

 1
58193C - BRACKET, FUEL PIPE
23809-78060

WU302,342..(DCRTH,DCRTJ)..IDN

 1
Common parts
23271-0W010
23273-0W010
23841-78030
23841-78050
25621-78040
90031-05123
90031-05124
90031-05126
90031-05131
90031-05140
90031-05141
90031-75001
90031-75002
90034-01010
90034-68024
90034-68033
90034-68042
90201-08035
90201-22006
90202-14004
90467-18008
96132-51300

(0912- )W04D..WU302,342,352..IDN

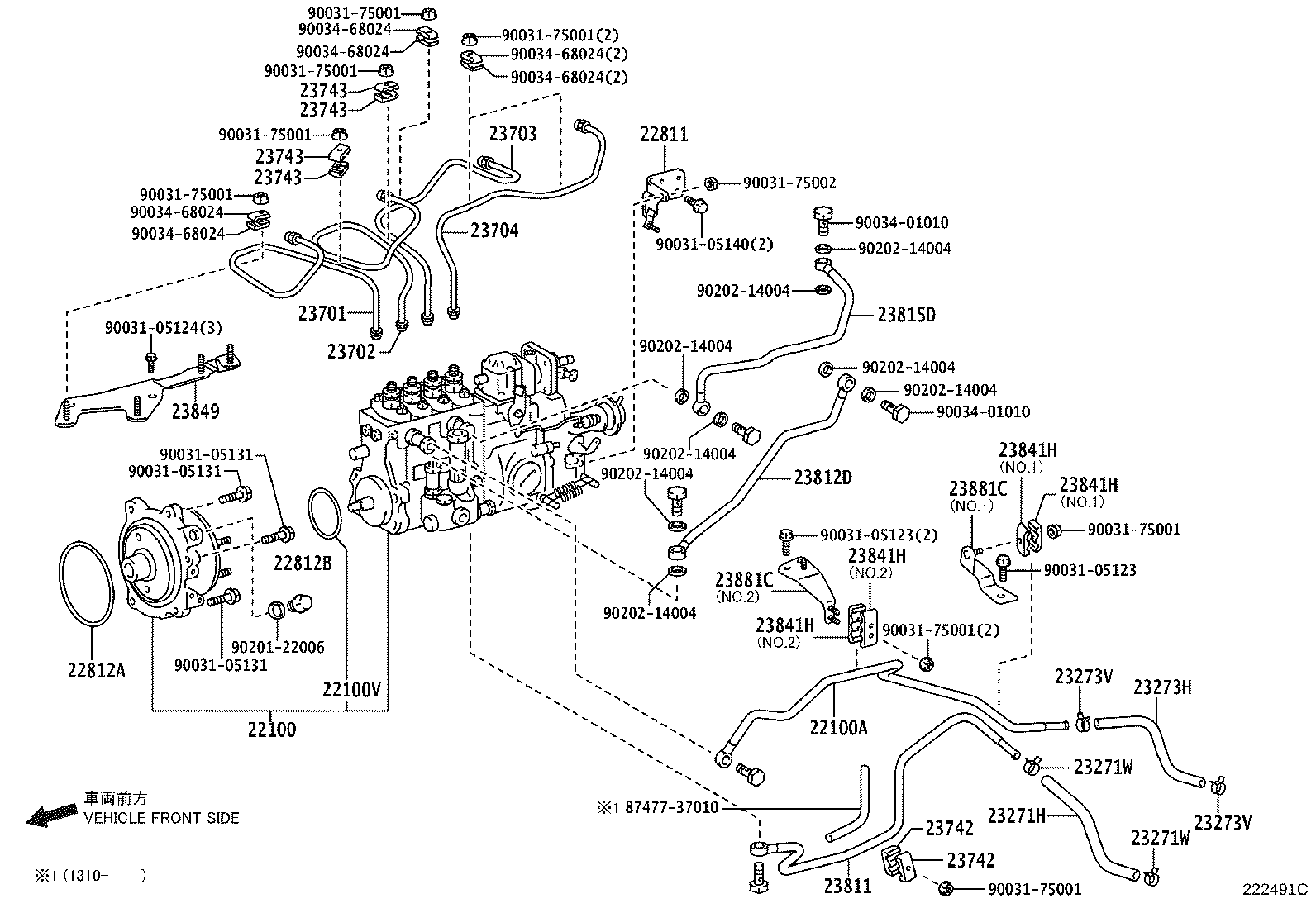

Click highlighted areas on diagram

diagram 22100 22100A 22100V 22811 22812A 22812B 23271H 23271W 23271W 23273H 23273V 23273V 23701 23702 23703 23704 23742 23742 23743 23743 23743 23743 23811 23812D 23815D 23841H 23841H 23841H 23841H 23849 23881C 23881C 8747737010 9003105123 9003105123 9003105124 9003105131 9003105131 9003105131 9003105140 9003175001 9003175001 9003175001 9003175001 9003175001 9003175001 9003175001 9003175001 9003175002 9003401010 9003401010 9003468024 9003468024 9003468024 9003468024 9003468024 9003468024 9020122006 9020214004 9020214004 9020214004 9020214004 9020214004 9020214004 9020214004 9020214004
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22010-78481

W04D..WU302,342..DCRTH..T3

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23814-78130

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-78120

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23841-78040

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 2
23742 - CLAMP, INJECTION PIPE, NO.2
23841-78040

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-78180

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
23812D - PIPE, FUEL, NO.2
23812-78100

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
23815D - PIPE, FUEL, NO.3
23815-78030

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
23849 - SUPPORT, FUEL
23849-78141

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

 1
23881C - BRACKET, FUEL HOSE
23881-78040

W04D..WU302,342..DCRTH..T3

NO.1

 1
23881-78070

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

NO.2

 1
23881C - BRACKET, FUEL HOSE
23881-78040

W04D..WU302,342..DCRTH..T3

NO.1

 1
23881-78070

W04D..WU302,342..(DCRTH,DCRTJ)..IDN

NO.2

 1
Common parts
87477-37010
90031-05123
90031-05124
90031-05131
90031-05140
90031-75001
90031-75002
90034-01010
90034-68024
90201-22006
90202-14004
