Toyota Dyna WU302 STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
GR
DYNA
WU302L-TBMMB3 (2006)
4501 - STEERING COLUMN & SHAFT

WU302L-TBMMB3 (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011

Engine W04D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0610- )DCRTH,DCRTJ ; (0610- )WU300,340..GCC,GEN

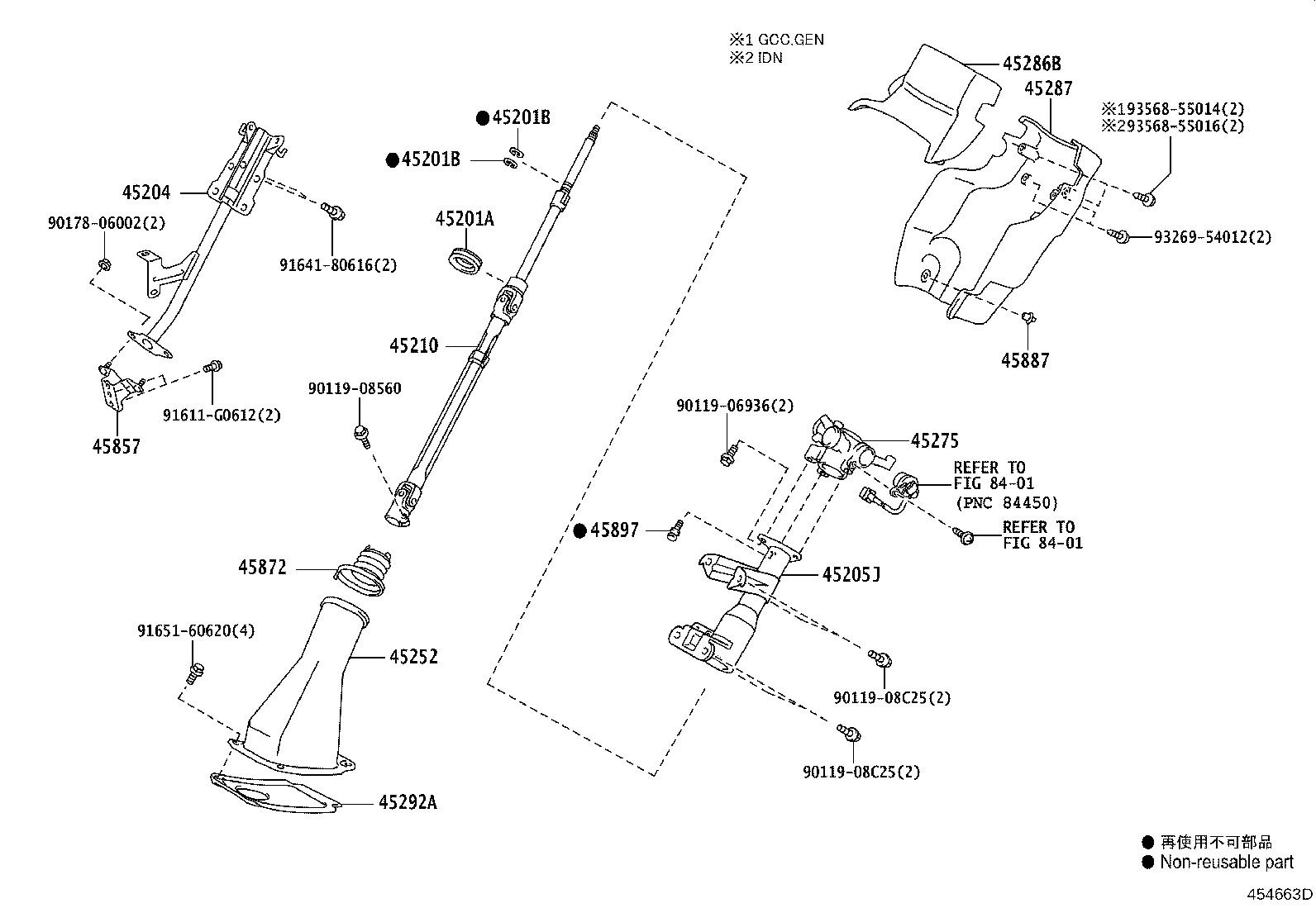

Click highlighted areas on diagram

Part #	Description	Period	Qty
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-37020	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	WU30#,34#..GCC,GEN T=1.20	10/2006 - 06/2011	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	WU30#,34#..GCC,GEN T=1.20	10/2006 - 06/2011	2
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-37140	WU30#,34#..LHD	10/2006 - 06/2011	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-37090	WU30#,34#..GCC,GEN W(TILT & TELESCOPIC STEERING)	10/2006 - 06/2011	1
45205-37100	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45210 - SHAFT ASSY, STEERING MAIN
45210-37240	WU30#,34#..GCC,GEN	10/2006 - 12/2007	1
45210-37300	WU30#,34#..GCC,GEN W(TILT & TELESCOPIC STEERING)	10/2006 - 06/2011	1
45210-37241	WU30#,34#..GCC,GEN	01/2008 - 06/2011	1
45252 - TUBE, STEERING COLUMN, LOWER
45252-37040B0	WU30#,34#..LHD MD.CHARCOAL,TRIM1#	10/2006 - 09/2009	1
45252-37041B0	WU30#,34#..LHD MD.CHARCOAL,TRIM1#	10/2009 - 06/2011	1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-36230	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45286B - COVER, STEERING COLUMN, UPR
45286-37090B0	WU30#,34#..LHD W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#	10/2006 - 09/2009	1
45286-25170B0	WU30#,34#..LHD MD.CHARCOAL,TRIM1#	10/2006 - 09/2009	1
45286-37091B0	WU30#,34#..LHD W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#	10/2009 - 06/2011	1
45286-25171B0	WU30#,34#..LHD MD.CHARCOAL,TRIM1#	10/2009 - 06/2011	1
45287 - COVER, STEERING COLUMN, LWR
45287-25060B0	WU30#,34#..LHD MD.CHARCOAL,TRIM1#	10/2006 - 09/2009	1
45287-37090B0	WU30#,34#..LHD W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#	10/2006 - 09/2009	1
45287-37091B0	WU30#,34#..LHD W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#	10/2009 - 06/2011	1
45287-25061B0	WU30#,34#..LHD MD.CHARCOAL,TRIM1#	10/2009 - 06/2011	1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-37010	WU30#,34#..LHD	10/2006 - 06/2011	1
45857 - BRACKET, TILT STEERING COLUMN TUBE, NO.1
45857-37040	WU30#,34#..LHD	10/2006 - 06/2011	1
45872 - COVER, STEERING COLUMN TUBE
45872-37010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45887 - CLIP, STEERING TELESCOPIC LEVER
90467-07041B8	WU30#,34#..GCC,GEN MD.CHARCOAL,TRIM1#	10/2006 - 06/2011	1
45897 - BOLT, STEERING LOCK SET
45897-25010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
Common parts
90119-06936
90119-08560
90119-08C25
90178-06002
91611-G0612
91641-80616
91651-60620
93269-54012
93568-55014
93568-55016
Linked diagrams
8401

(0610- )GCC,GEN,TAIW ; (0802- )RHD..DCRTP,DCRTR,DSL..IV3,IV8

Click highlighted areas on diagram

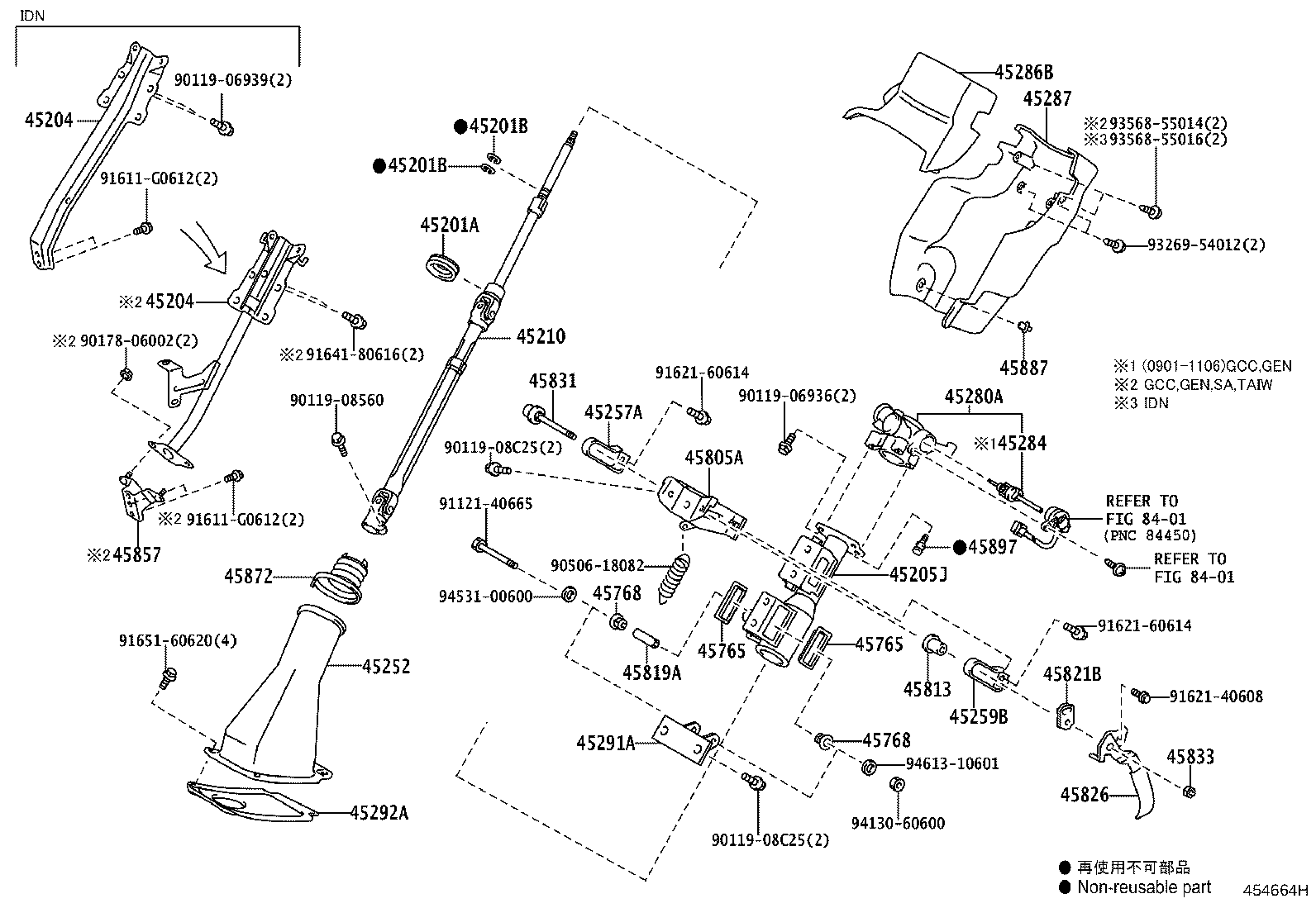

TILT & TELESCOPIC STEERING

Part #	Description	Period	Qty
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-37020	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	WU30#,34#..GCC,GEN T=1.20	10/2006 - 06/2011	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269	WU30#,34#..GCC,GEN T=1.20	10/2006 - 06/2011	2
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-37140	WU30#,34#..LHD	10/2006 - 06/2011	1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-37140	WU30#,34#..LHD	10/2006 - 06/2011	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-37090	WU30#,34#..GCC,GEN W(TILT & TELESCOPIC STEERING)	10/2006 - 06/2011	1
45205-37100	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45210 - SHAFT ASSY, STEERING MAIN
45210-37240	WU30#,34#..GCC,GEN	10/2006 - 12/2007	1
45210-37300	WU30#,34#..GCC,GEN W(TILT & TELESCOPIC STEERING)	10/2006 - 06/2011	1
45210-37241	WU30#,34#..GCC,GEN	01/2008 - 06/2011	1
45252 - TUBE, STEERING COLUMN, LOWER
45252-37040B0	WU30#,34#..LHD MD.CHARCOAL,TRIM1#	10/2006 - 09/2009	1
45252-37041B0	WU30#,34#..LHD MD.CHARCOAL,TRIM1#	10/2009 - 06/2011	1
45257A - PLATE, STEERING COLUMN ENERGY ABSORBING
45257-37010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45259B - PLATE, STEERING COLUMN ENERGY ABSORBING, NO.2
45259-37010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-37100	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45284 - SHAFT, STEERING LOCK CAM
45284-37010	WU30#,34#..GCC,GEN	01/2009 - 06/2011	1
45286B - COVER, STEERING COLUMN, UPR
45286-37090B0	WU30#,34#..LHD W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#	10/2006 - 09/2009	1
45286-25170B0	WU30#,34#..LHD MD.CHARCOAL,TRIM1#	10/2006 - 09/2009	1
45286-37091B0	WU30#,34#..LHD W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#	10/2009 - 06/2011	1
45286-25171B0	WU30#,34#..LHD MD.CHARCOAL,TRIM1#	10/2009 - 06/2011	1
45287 - COVER, STEERING COLUMN, LWR
45287-25060B0	WU30#,34#..LHD MD.CHARCOAL,TRIM1#	10/2006 - 09/2009	1
45287-37090B0	WU30#,34#..LHD W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#	10/2006 - 09/2009	1
45287-37091B0	WU30#,34#..LHD W(TILT & TELESCOPIC STEERING),MD.CHARCOAL,TRIM1#	10/2009 - 06/2011	1
45287-25061B0	WU30#,34#..LHD MD.CHARCOAL,TRIM1#	10/2009 - 06/2011	1
45291A - SUPPORT, STEERING COLUMN TUBE
45803-37010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-37010	WU30#,34#..LHD	10/2006 - 06/2011	1
45765 - GUIDE, TELESCOPIC STEERING
45765-37010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	2
45765 - GUIDE, TELESCOPIC STEERING
45765-37010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	2
45768 - BUSH, TELESCOPIC STEERING
45768-37010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	2
45768 - BUSH, TELESCOPIC STEERING
45768-37010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	2
45805A - SUPPORT SUB-ASSY, TILT STEERING
45805-37010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-37010	WU30#,34#..GCC,GEN OD=30	10/2006 - 06/2011	1
45819A - COLLAR(FOR TILT LEVER RETAINER)
90387-06037	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45821B - REINFORCE, TILT STEERING SUPPORT, NO.1
45821-12010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45826 - LEVER, STEERING TILT
45826-37010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-37010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-37010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45857 - BRACKET, TILT STEERING COLUMN TUBE, NO.1
45857-37040	WU30#,34#..LHD	10/2006 - 06/2011	1
45872 - COVER, STEERING COLUMN TUBE
45872-37010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
45887 - CLIP, STEERING TELESCOPIC LEVER
90467-07041B8	WU30#,34#..GCC,GEN MD.CHARCOAL,TRIM1#	10/2006 - 06/2011	1
45897 - BOLT, STEERING LOCK SET
45897-25010	WU30#,34#..GCC,GEN	10/2006 - 06/2011	1
Common parts
90119-06936
90119-06939
90119-08560
90119-08C25
90178-06002
90506-18082
91121-40665
91611-G0612
91621-40608
91621-60614
91641-80616
91651-60620
93269-54012
93568-55014
93568-55016
94130-60600
94531-00600
94613-10601
Linked diagrams
8401

WU302L-TBMMB3 (2006)

(0610- )DCRTH,DCRTJ ; (0610- )WU300,340..GCC,GEN

(0610- )GCC,GEN,TAIW ; (0802- )RHD..DCRTP,DCRTR,DSL..IV3,IV8

Part Price Details
