WU302L-TBMMB3 (2006)
Toyota Dyna
(0610- )75T..DCRTP,DCRTR..IV3 ; (0610- )WU342..55T,65T..DCRTJ ; (0610- )WU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-40001 |
WU340..65T..GEN;WU302,342..DCRTJ..GEN |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-10067 |
WU340..65T..GEN;WU302,342..DCRTJ..GEN |
16 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-37110 |
WU340..65T..GEN;WU302,342..DCRTJ..GEN |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02071 |
WU30#,34#..GCC,GEN |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-78001 |
WU30#,34#..GCC,GEN |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-37110 |
WU340..65T..GEN;WU302,342..DCRTJ..GEN |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-78001 |
WU30#,34#..GCC,GEN |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02072 |
WU30#,34#..GCC,GEN |
5 | ||
| 42321A - GASKET, REAR AXLE SHAFT, RH | ||||
| 42321-37020 |
WU30#,34#..GCC,GEN |
1 | ||
| 42321B - GASKET, REAR AXLE SHAFT, LH | ||||
| 42321-37020 |
WU30#,34#..GCC,GEN |
1 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
WU340..65T..GEN;WU302,342..DCRTJ..GEN |
16 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-10191 |
WU340..65T..GEN;WU302,342..DCRTJ..GEN |
8 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10055 |
WU30#,34#..GCC,GEN |
2 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90366-60012 |
WU30#,34#..GCC,GEN |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-10191 |
WU340..65T..GEN;WU302,342..DCRTJ..GEN |
8 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10055 |
WU30#,34#..GCC,GEN |
2 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90366-60012 |
WU30#,34#..GCC,GEN |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-37080 |
WU30#,34#..GCC,GEN |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90366-55054 |
WU30#,34#..GCC,GEN |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
WU30#,34#..GCC,GEN |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-39106 |
WU340..65T..GEN;WU302,342..DCRTJ..GEN |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37020 |
WU30#,34#..GCC,GEN |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
WU30#,34#..GCC,GEN |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39106 |
WU340..65T..GEN;WU302,342..DCRTJ..GEN |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-37020 |
WU30#,34#..WT..(GCC,GEN) |
5 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-37020 |
WU30#,34#..WT..(GCC,GEN) |
5 | ||
| Common parts | ||||
| 90105-14101 | ||||

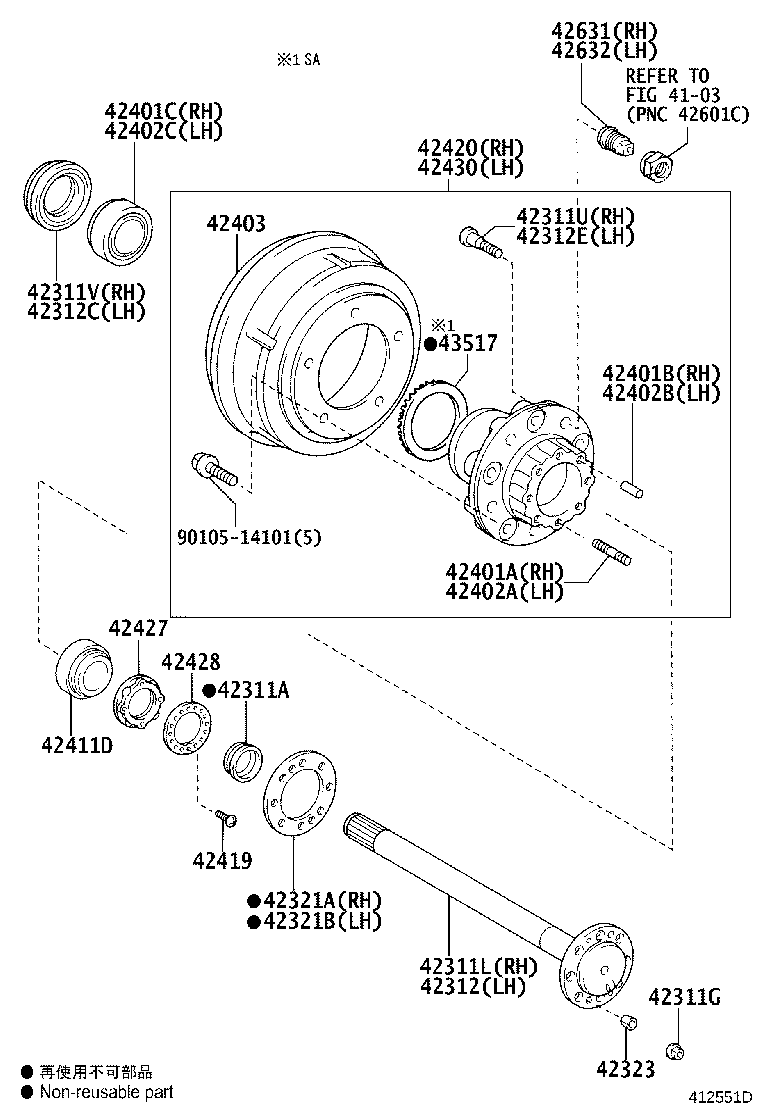

| Linked diagrams | ||||
| 4103 | ||||
