WU302L-TBMMB (2006)
Toyota Dyna
ILLUST NO. 3 OF 3(0209-0612)WU340..RHD..IV3 ; (0209-0612)BU30#,34#,WU300,XZU305,342,345..RHD ; (0612
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39416 |
WU30#,34#..GCC,GEN |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
WU30#,34#..GCC,GEN |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
WU30#,34#..GCC,GEN |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39256 |
WU30#,34#..GCC,GEN |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39216 |
WU30#,34#..LHD |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
WU30#,34#..GCC,GEN |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
WU30#,34#..GCC,GEN |
2 | ||
| 45460A - ROD ASSY, TIE | ||||
| 45460-39516 |
WU30#,34#..GCC,GEN |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-37050 |
WU30#,34#..GCC,GEN |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45612-39225 |
WU30#,34#..LHD |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
WU30#,34#..GCC,GEN |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
WU30#,34#..GCC,GEN |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45611-39105 |
WU30#,34#..LHD |
1 | ||
| Common parts | ||||
| 90170-22005 | ||||
| 90170-22006 | ||||
| 90252-04005 | ||||

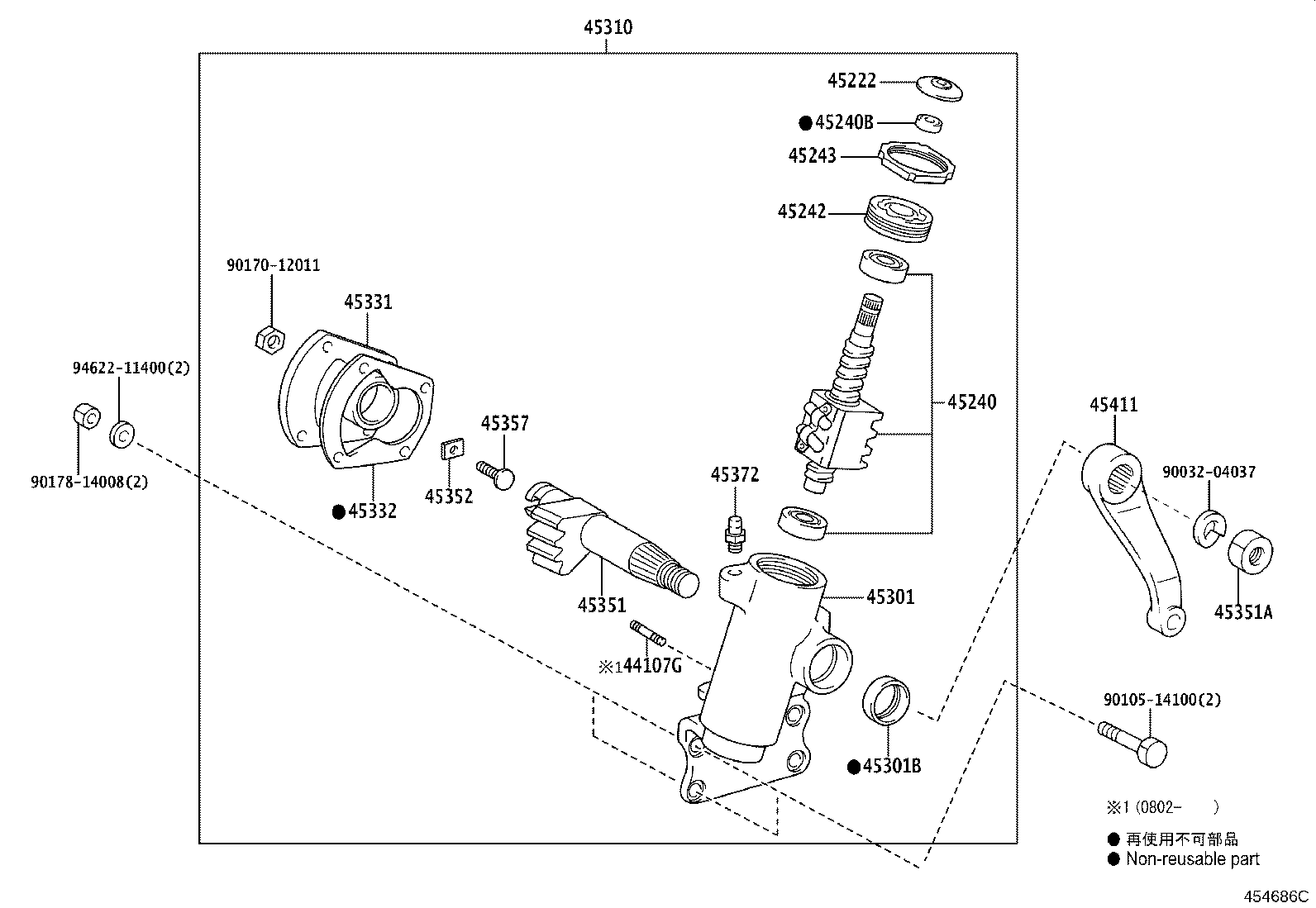

ILLUST NO. 1 OF 2(0610- )WU30#,34#..LHD
MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90116-14020 |
WU30#,34#..GCC,GEN |
2 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-26010 |
WU30#,34#..GCC,GEN |
1 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45240-37030 |
WU30#,34#..LHD |
1 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18010 |
WU30#,34#..GCC,GEN |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-25010 |
WU30#,34#..GCC,GEN |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-60020 |
WU30#,34#..GCC,GEN |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-37050 |
WU30#,34#..LHD |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-38033 |
WU300,340..GCC,GEN;WU302,342..DCRTH,DCRTJ W(MANUAL STEERING) |
1 | ||
| 45333-37010 |
WU30#,34#..LHD W(POWER STEERING) |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-37050 |
WU30#,34#..LHD |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-36060 |
WU30#,34#..GCC,GEN |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-36040 |
WU30#,34#..GCC,GEN |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36051 |
WU30#,34#..GCC,GEN |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-27002 |
WU30#,34#..GCC,GEN |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45354-37010 |
WU30#,34#..GCC,GEN T=2.05 |
1 | ||
| 45352-37010 |
WU30#,34#..GCC,GEN T=1.95 |
1 | ||
| 45353-37010 |
WU30#,34#..GCC,GEN T=2.00 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
WU302,342;WU300,340..GCC,GEN |
1 | ||
| 45357-37020 |
WU30#,34#..GCC,GEN |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
WU30#,34#..GCC,GEN |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37280 |
WU30#,34#,XZU307,327,337..LHD..(48T,55T,65T) W(POWER STEERING) |
1 | ||
| 45411-37210 |
WU30#,34#..LHD |
1 | ||
| 45411-37281 |
WU30#,34#..LHD W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90032-04037 | ||||
| 90105-14100 | ||||
| 90170-12011 | ||||
| 90178-14008 | ||||
| 94622-11400 | ||||
ILLUST NO. 1 OF 2(0610-1009)LHD
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37231 |
WU30#,34#..LHD |
1 | ||
| 44110-37230 |
WU30#,34#..LHD |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37280 |
WU30#,34#,XZU307,327,337..LHD..(48T,55T,65T) W(POWER STEERING) |
1 | ||
| 45411-37210 |
WU30#,34#..LHD |
1 | ||
| 45411-37281 |
WU30#,34#..LHD W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90032-04037 | ||||
| 90101-14021 | ||||
| 90105-T0391 | ||||
| 90116-14020 | ||||
| 90116-14022 | ||||
| 90170-27002 | ||||
| 90178-14008 | ||||
| 91554-L1475 | ||||
| 94622-11400 | ||||
ILLUST NO. 2 OF 2(0610- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39416 |
WU30#,34#..GCC,GEN |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
WU30#,34#..GCC,GEN |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
WU30#,34#..GCC,GEN |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39256 |
WU30#,34#..GCC,GEN |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39216 |
WU30#,34#..LHD |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
WU30#,34#..GCC,GEN |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
WU30#,34#..GCC,GEN |
2 | ||
| 45460A - ROD ASSY, TIE | ||||
| 45460-39516 |
WU30#,34#..GCC,GEN |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-37050 |
WU30#,34#..GCC,GEN |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45612-39225 |
WU30#,34#..LHD |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
WU30#,34#..GCC,GEN |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90178-26002 |
WU30#,34#..GCC,GEN |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45611-39105 |
WU30#,34#..LHD |
1 | ||
| Common parts | ||||
| 90170-22005 | ||||
| 90170-22006 | ||||
| 90252-04005 | ||||

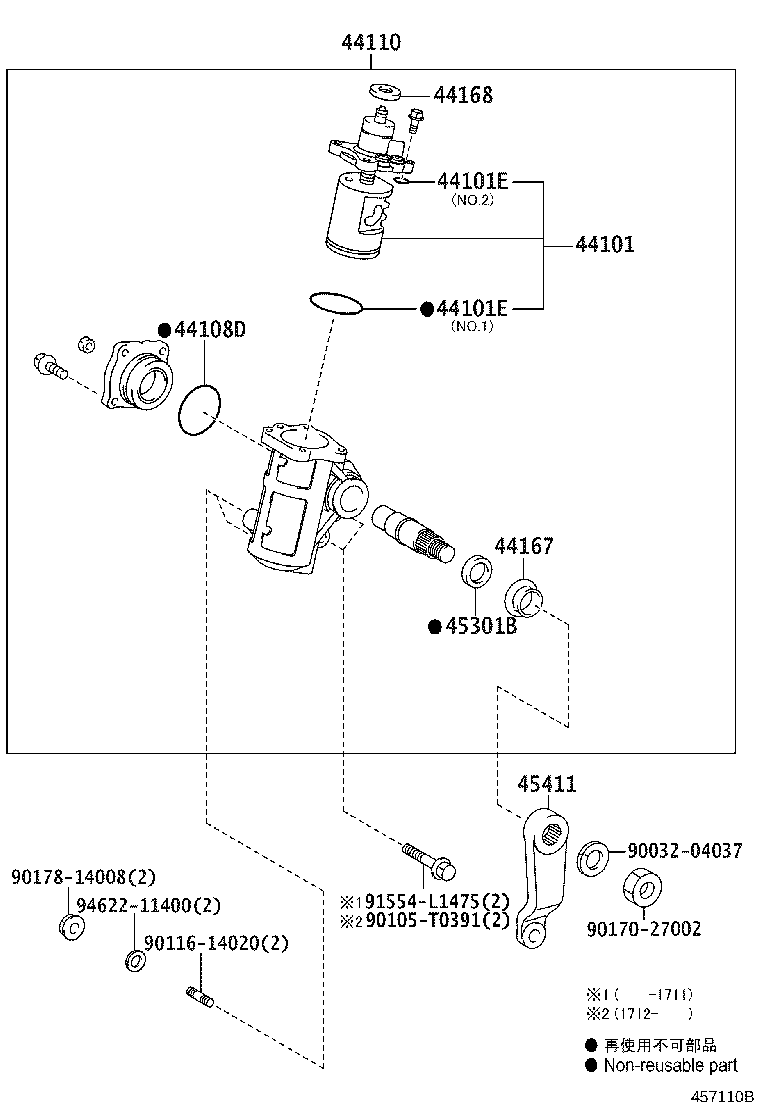

ILLUST NO. 1 OF 2(1009- )LHD
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101 - WORM SUB-ASSY, STEERING | ||||
| 44101-37020 |
WU30#,34#..LHD |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 44999-37020 |
WU30#,34#..LHD NO.1 |
1 | ||
| 44999-37040 |
WU30#,34#..LHD NO.2 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 44999-37020 |
WU30#,34#..LHD NO.1 |
1 | ||
| 44999-37040 |
WU30#,34#..LHD NO.2 |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 44999-37050 |
WU30#,34#..LHD |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37231 |
WU30#,34#..LHD |
1 | ||
| 44110-37230 |
WU30#,34#..LHD |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 45222-37050 |
WU30#,34#..LHD |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 45222-37040 |
WU30#,34#..LHD |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-38033 |
WU300,340..GCC,GEN;WU302,342..DCRTH,DCRTJ W(MANUAL STEERING) |
1 | ||
| 45333-37010 |
WU30#,34#..LHD W(POWER STEERING) |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37280 |
WU30#,34#,XZU307,327,337..LHD..(48T,55T,65T) W(POWER STEERING) |
1 | ||
| 45411-37210 |
WU30#,34#..LHD |
1 | ||
| 45411-37281 |
WU30#,34#..LHD W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90032-04037 | ||||
| 90105-T0391 | ||||
| 90116-14020 | ||||
| 90170-27002 | ||||
| 90178-14008 | ||||
| 91554-L1475 | ||||
| 94622-11400 | ||||
