WU302L-TBMMB (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )W04D..WU302,342..GEN

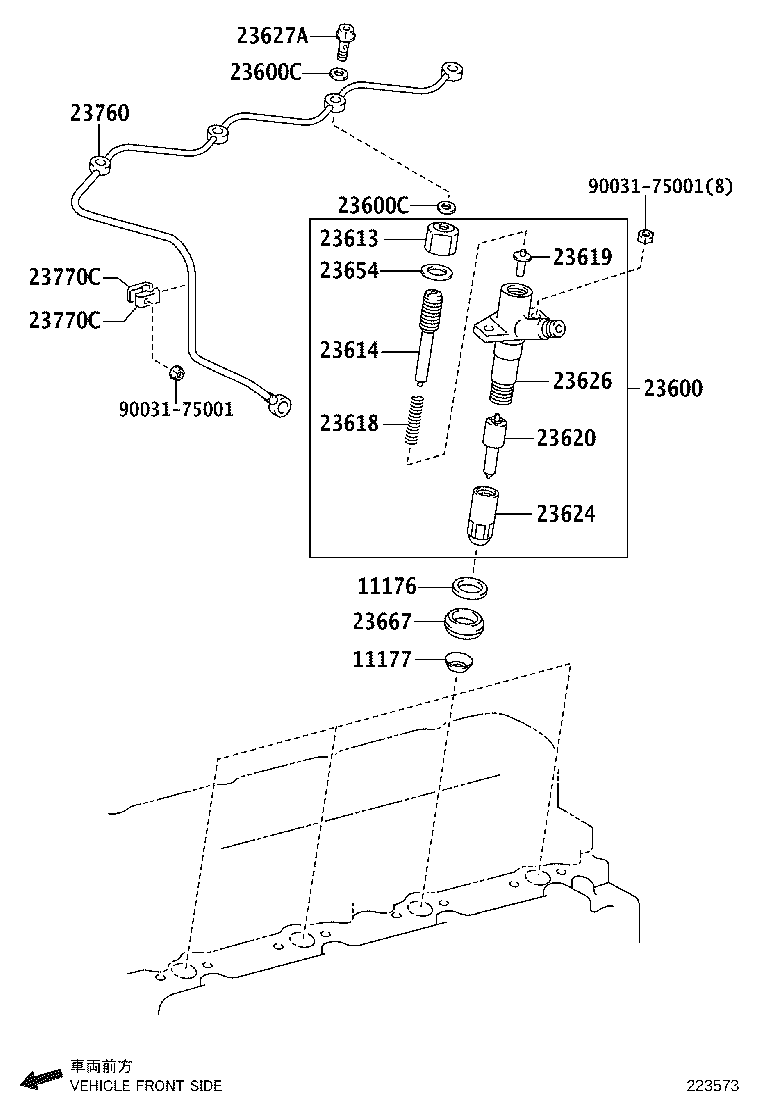

Click highlighted areas on diagram

diagram 11176 11177 23600 23600C 23600C 23613 23614 23618 23619 23620 23624 23626 23627A 23654 23667 23760 23770C 23770C 9003175001 9003175001
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
90564-21001

W04D..WU30#,34#..GCC,GEN,SA

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-78010

W04D..WU300,340..GCC,GEN,SA;W04D..WU302,342..DCRTH,DCRTJ

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-78080

W04D..WU302,342..DCRTH,DCRTJ

 4
23600C - GASKET(FOR HOLDER & NOZZLE SET)
23682-78010

W04D..WU302,342..DCRTH,DCRTJ

 8
23600C - GASKET(FOR HOLDER & NOZZLE SET)
23682-78010

W04D..WU302,342..DCRTH,DCRTJ

 8
23613 - NUT, NOZZLE HOLDER CAP
23613-78080

W04D..WU302,342..DCRTH,DCRTJ

 4
23614 - SCREW, NOZZLE HOLDER ADJUSTING
23614-78080

W04D..WU302,342..DCRTH,DCRTJ

 4
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-78080

W04D..WU302,342..DCRTH,DCRTJ

 4
23619 - PIN, NOZZLE HOLDER PRESSURE
23619-78080

W04D..WU302,342..DCRTH,DCRTJ

 4
23620 - NOZZLE ASSY
23620-78080

W04D..WU302,342..DCRTH,DCRTJ

 4
23624 - NUT, NOZZLE RETAINING
23624-78080

W04D..WU302,342..DCRTH,DCRTJ

 4
23626 - BODY SUB-ASSY, NOZZLE
23626-78080

W04D..WU302,342..DCRTH,DCRTJ

 4
23627A - SCREW, FOLLOW(FOR NOZZLE)
23656-89101

W04D..WU302,342

 4
90034-01017

W04D..WU302,342..DCRTH,DCRTJ

 4
23654 - WASHER(FOR RING PACKING)
23654-67010

W04D..WU302,342..DCRTH,DCRTJ

 4
23667 - RING, PACKING, NO.2(FOR NOZZLE)
17214-78010

W04D..WU302,342..GEN

 4
90033-01071

W04D..WU302,342

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23761-78070

W04D..WU302,342..DCRTH,DCRTJ

 1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
90034-68024

W04D..WU302,342..DCRTH,DCRTJ

 2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
90034-68024

W04D..WU302,342..DCRTH,DCRTJ

 2
Common parts
90031-75001
