WU302L-TBMMB (2006)
Toyota Dyna

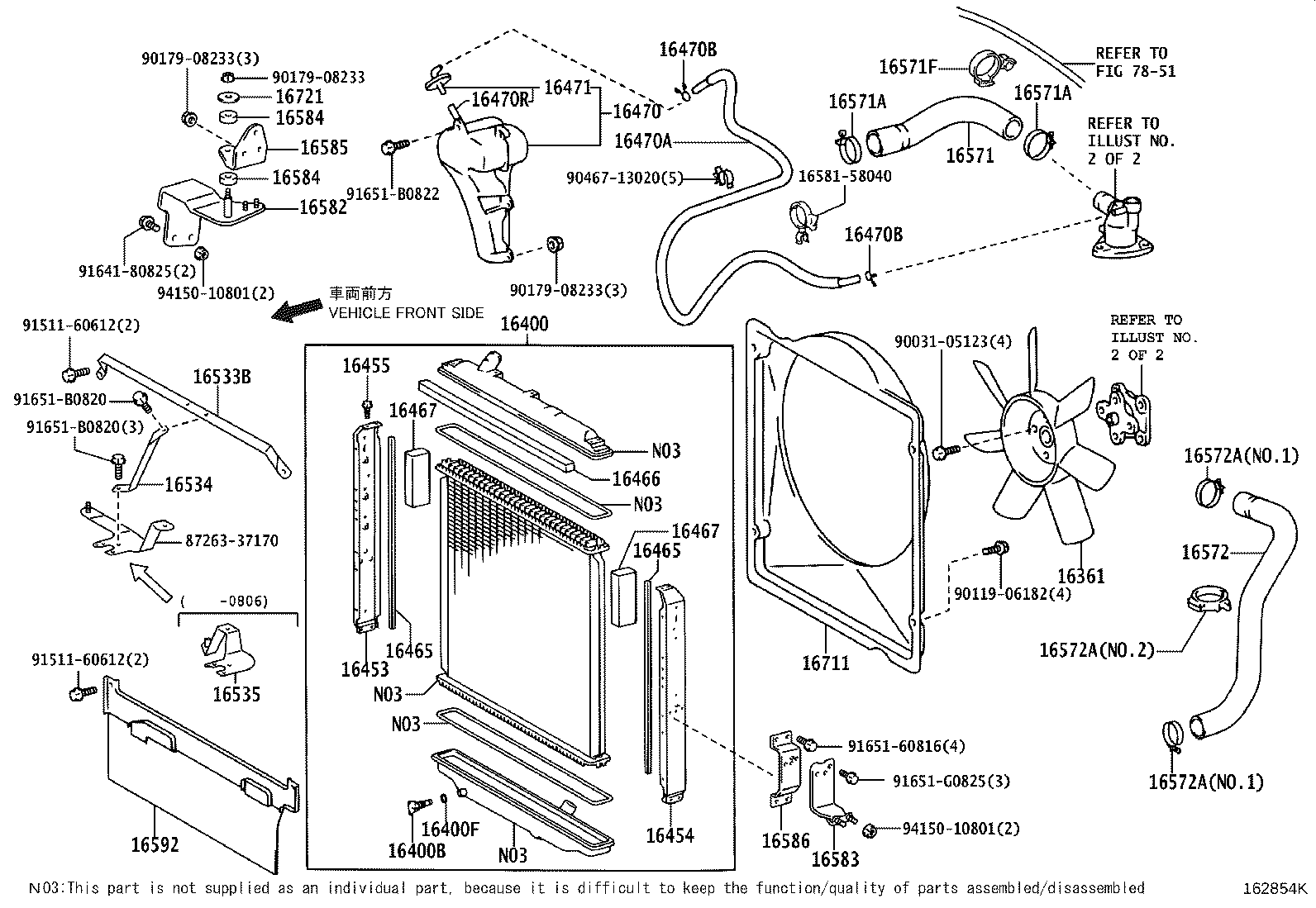

ILLUST NO. 1 OF 2(0610- )W04D..WU302,342..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78110 |
W04D..WU302,342..GEN |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78501 |
W04D..WU302,342..DCRTJ..GEN |
1 | ||
| 16400-78500 |
W04D..WU302,342..DCRTJ..GEN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78520 |
W04D..WU30#,34#..LHD |
1 | ||
| 16453-78521 |
W04D..WU30#,34#..LHD |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78520 |
W04D..WU30#,34#..LHD |
1 | ||
| 16454-78521 |
W04D..WU30#,34#..LHD |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
W04D..WU30#,34#..GCC,GEN |
8 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
W04D..WU30#,34#..GCC,GEN |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
W04D..WU30#,34#..GCC,GEN |
2 | ||
| 16466 - SEAL, RADIATOR | ||||
| 16466-78160 |
W04D..WU302,342..DCRTJ..GEN |
1 | ||
| 16467 - SIDE SEAL | ||||
| 16467-78520 |
W04D..WU302,342..DCRTJ..GEN |
2 | ||
| 16467 - SIDE SEAL | ||||
| 16467-78520 |
W04D..WU302,342..DCRTJ..GEN |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78400 |
W04D..WU30#,34#..GCC,GEN L=1660 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
W04D..WU30#,34#..GCC,GEN |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
W04D..WU30#,34#..GCC,GEN |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
W04D..WU30#,34#..GCC,GEN L=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78090 |
W04D..WU30#,34#..LHD |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78060 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-78080 |
W04D..WU30#,34#..LHD |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-58151 |
W04D..WU30#,34#..LHD |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78140 |
W04D..WU30#,34#..GCC,GEN,SA |
2 | ||
| 16581-78190 |
W04D..WU30#,34#..GCC,GEN |
2 | ||
| 16581-78191 |
W04D..WU30#,34#..GCC,GEN |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78140 |
W04D..WU30#,34#..GCC,GEN,SA |
2 | ||
| 16581-78190 |
W04D..WU30#,34#..GCC,GEN |
2 | ||
| 16581-78191 |
W04D..WU30#,34#..GCC,GEN |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 90464-00731 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78240 |
W04D..WU302,342..GEN |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78140 |
W04D..WU30#,34#..GCC,GEN,SA NO.1 |
2 | ||
| 16581-78191 |
W04D..WU30#,34#..GCC,GEN NO.1 |
2 | ||
| 16581-78100 |
W04D..WU30#,34#..GCC,GEN NO.2 |
1 | ||
| 16581-78190 |
W04D..WU30#,34#..GCC,GEN NO.1 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78140 |
W04D..WU30#,34#..GCC,GEN,SA NO.1 |
2 | ||
| 16581-78191 |
W04D..WU30#,34#..GCC,GEN NO.1 |
2 | ||
| 16581-78100 |
W04D..WU30#,34#..GCC,GEN NO.2 |
1 | ||
| 16581-78190 |
W04D..WU30#,34#..GCC,GEN NO.1 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78140 |
W04D..WU30#,34#..GCC,GEN,SA NO.1 |
2 | ||
| 16581-78191 |
W04D..WU30#,34#..GCC,GEN NO.1 |
2 | ||
| 16581-78100 |
W04D..WU30#,34#..GCC,GEN NO.2 |
1 | ||
| 16581-78190 |
W04D..WU30#,34#..GCC,GEN NO.1 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78090 |
W04D..WU30#,34#..LHD |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78061 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
W04D..WU30#,34#..LHD |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
W04D..WU30#,34#..LHD |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-58020 |
W04D..WU30#,34#..LHD |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-78060 |
W04D..WU30#,34#..LHD |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-78010 |
W04D..WU302,342..DCRTJ..GEN |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78190 |
W04D..WU302,342..GEN |
1 | ||
| 16711-78300 |
W04D..WU302,342..GEN |
1 | ||
| 16721 - PLATE, HOLDER | ||||
| 16721-78010 |
W04D..WU30#,34#..LHD |
1 | ||
| Common parts | ||||
| 16581-58040 | ||||
| 87263-37170 | ||||
| 90031-05123 | ||||
| 90119-06182 | ||||
| 90179-08233 | ||||
| 90467-13020 | ||||
| 91511-60612 | ||||
| 91641-80825 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 91651-G0825 | ||||
| 94150-10801 | ||||
| Linked diagrams | ||||
| 7851 | ||||

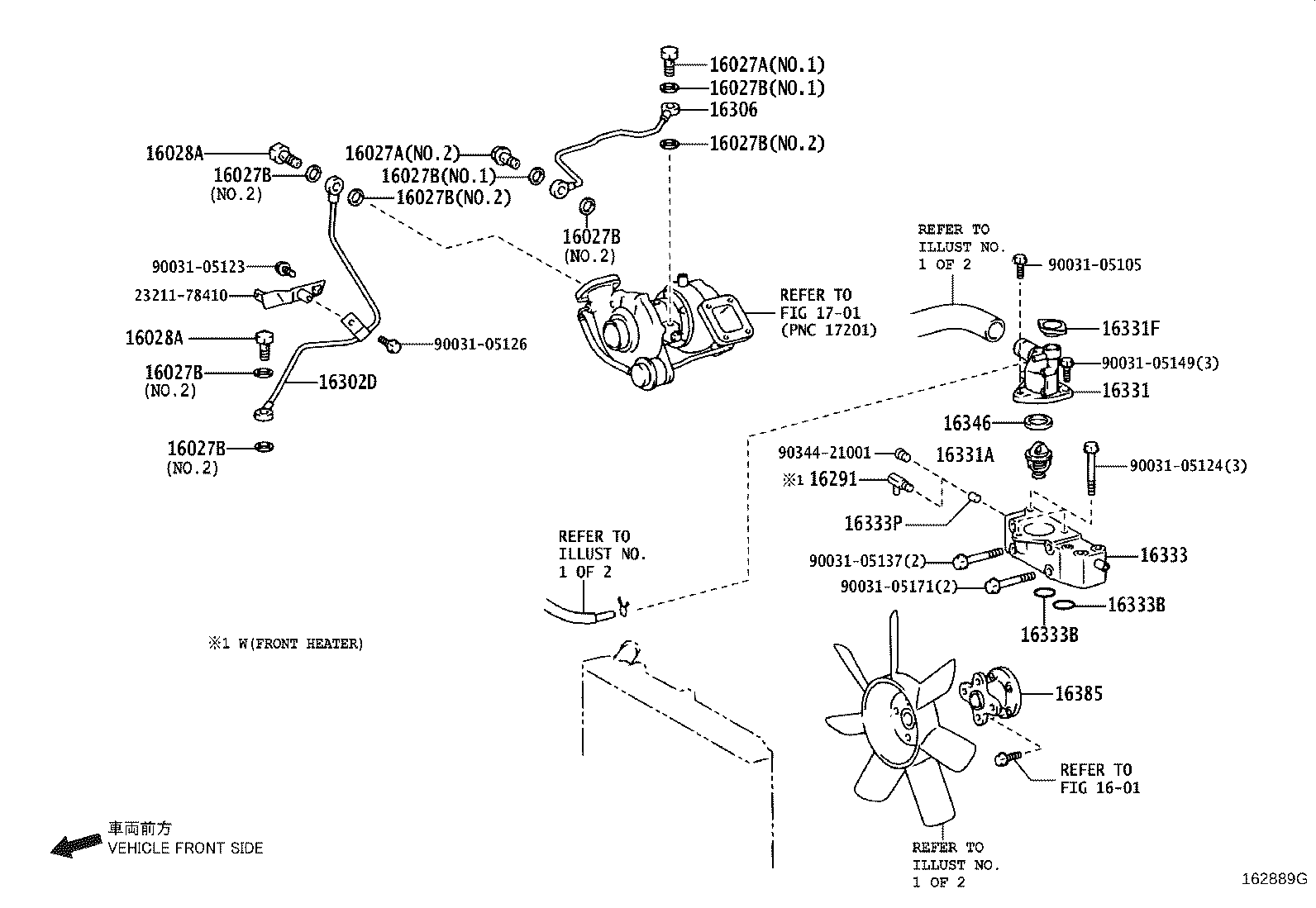

ILLUST NO. 2 OF 2(0610- )W04D..WU302,342..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01018 |
W04D..WU302,342..GEN NO.2 |
1 | ||
| 90034-01010 |
W04D..WU302,342..GEN NO.1 |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01018 |
W04D..WU302,342..GEN NO.2 |
1 | ||
| 90034-01010 |
W04D..WU302,342..GEN NO.1 |
1 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90034-30040 |
W04D..WU302,342..GEN NO.1 |
2 | ||
| 90202-14004 |
W04D..WU302,342..GEN NO.2 |
6 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90034-30040 |
W04D..WU302,342..GEN NO.1 |
2 | ||
| 90202-14004 |
W04D..WU302,342..GEN NO.2 |
6 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90034-30040 |
W04D..WU302,342..GEN NO.1 |
2 | ||
| 90202-14004 |
W04D..WU302,342..GEN NO.2 |
6 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90034-30040 |
W04D..WU302,342..GEN NO.1 |
2 | ||
| 90202-14004 |
W04D..WU302,342..GEN NO.2 |
6 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90034-30040 |
W04D..WU302,342..GEN NO.1 |
2 | ||
| 90202-14004 |
W04D..WU302,342..GEN NO.2 |
6 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90034-30040 |
W04D..WU302,342..GEN NO.1 |
2 | ||
| 90202-14004 |
W04D..WU302,342..GEN NO.2 |
6 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90034-30040 |
W04D..WU302,342..GEN NO.1 |
2 | ||
| 90202-14004 |
W04D..WU302,342..GEN NO.2 |
6 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90034-30040 |
W04D..WU302,342..GEN NO.1 |
2 | ||
| 90202-14004 |
W04D..WU302,342..GEN NO.2 |
6 | ||
| 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) | ||||
| 90034-01010 |
W04D..WU302,342..GEN |
2 | ||
| 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) | ||||
| 90034-01010 |
W04D..WU302,342..GEN |
2 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 87251-30190 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16302D - PIPE SUB-ASSY, WATER INLET | ||||
| 16302-78050 |
W04D..WU302,342..GEN |
1 | ||
| 16306 - PIPE SUB-ASSY, WATER OUTLET | ||||
| 16306-78031 |
W04D..WU302,342..GEN |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-78060 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90038-33012 |
W04D..WU30#,34#..GCC,GEN *WAX 82-95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-78112 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16401-78110 |
W04D..WU302,342;W04D..WU300,340..GCC,GEN |
1 | ||
| 16401-78111 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-78040 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
W04D..WU30#,34#..GCC,GEN |
2 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
W04D..WU30#,34#..GCC,GEN |
2 | ||
| 16333P - UNION(FOR WATER OUTLET HOUSING) | ||||
| 90034-05021 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-78010 |
W04D..WU30#,34#..GCC,GEN |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16365-78130 |
W04D..WU302,342..GEN |
1 | ||
| Common parts | ||||
| 23211-78410 | ||||
| 90031-05105 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05126 | ||||
| 90031-05137 | ||||
| 90031-05149 | ||||
| 90031-05171 | ||||
| 90344-21001 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1701 | ||||
