RU75L-MDDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27357 27370 27371 27372 2737845020 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 29342A 9004179064 9009080509 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9010510041 9011908344 9017906158 9165140616 9331915008
Part # Description Qty Price
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90090-80509
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90105-10041
90119-08344
90179-06158
91651-40616
93319-15008

(8409-8412)

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27353 27356 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 29342A 9004179064 9009220604 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9010510041 9011908344 9017906158 9165140616 9331515010 9331515012 9331915008
Part # Description Qty Price
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90092-20604
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90105-10041
90119-08344
90179-06158
91651-40616
93315-15010
93315-15012
93319-15008

(8412- )

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27357 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 29342A 9004179064 9009220604 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9010510041 9011908344 9017906158 9165140616 9331515012
Part # Description Qty Price
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90092-20604
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90105-10041
90119-08344
90179-06158
91651-40616
93315-15012

(8409- )22R

Click highlighted areas on diagram

diagram 27020 27039 27212 27310 27310A 27310B 27330 27330A 27330B 27350B 27351 27359 27362 27371 27372 2737815030 2737815030 2738745022 2738745110 27410 27411 27412 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110083 9017010015 9017906158 9020110005 9020110005 9161161022 9165140616 9451101400 9451201000
Part # Description Qty Price

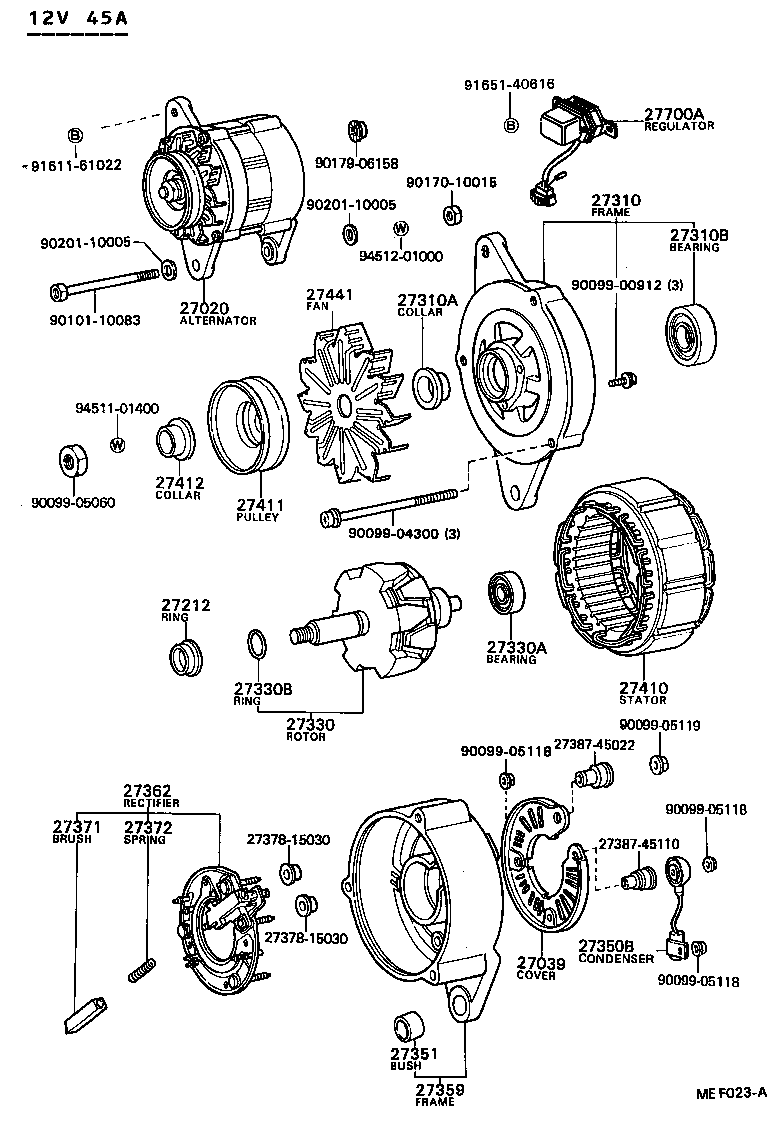

27020 - ALTERNATOR ASSY
27020-38120

22R..RU75,85

12V 45A,12V 45A

 1
27039 - COVER, ALTERNATOR REAR END
27039-18011

22R..RU75,85

12V 45A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-18010

22R..RU75,85

12V 45A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

22R..RU75,85

12V 45A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10126

22R..RU75,85

12V 45A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45020

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

22R,4Y..RU75,85,YU6#,71,81

12V 45A

 1
90099-10111

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-13050

22R..RU75,85

12V 45A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-38120

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27411 - PULLEY, ALTERNATOR
27411-31042

22R..RU75,85

12V 45A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

22R..RU75,85

12V 45A

 1
27441 - FAN, ALTERNATOR
27441-34030

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-56060

22R,3Y,4Y..RU75,85,YU6#,7#,8#

12V 45A

 1
Common parts
27378-15030
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10083
90170-10015
90179-06158
90201-10005
91611-61022
91651-40616
94511-01400
94512-01000
