RU75L-MDDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409-8508)22R

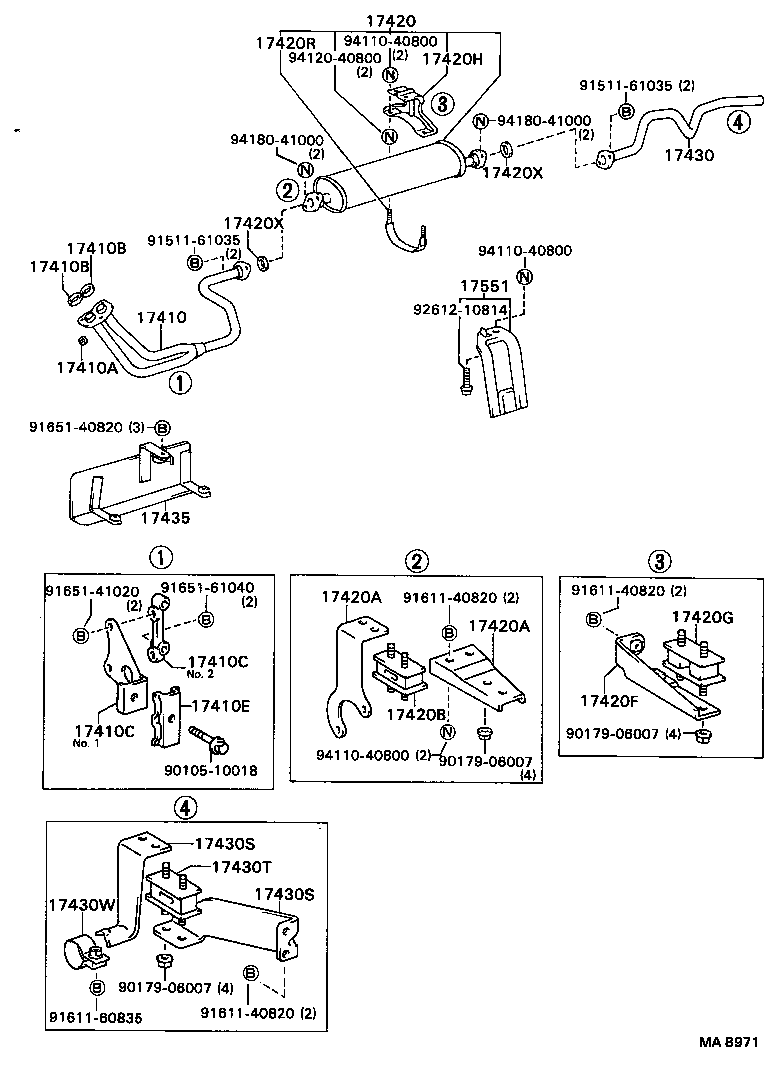

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410C 17410E 17420 17420 17420A 17420A 17420A 17420A 17420B 17420B 17420F 17420G 17420H 17420H 17420R 17420R 17420X 17420X 17420X 17430 17430 17430S 17430S 17430T 17430W 17435 17551 9010510018 9017906007 9017906007 9017906007 9017906007 9151161035 9151161035 9151161035 9161140820 9161140820 9161140820 9161140820 9161160835 9161160835 9165140820 9261210814 9411040800 9411040800 9411040800 9411040800 9412040800 9412040800 9418041000 9418041000 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-35020

22R..RU75,85

 1
17401-35050

22R..RU75,85

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

22R,1W,3Y,4Y..RU75,85,WU9#,YU6#,7#,8#

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

22R..RU75,85

 2
90917-06001

22R,3Y,4Y..RU75,85,YU6#,7#,8#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

22R..RU75,85

 2
90917-06001

22R,3Y,4Y..RU75,85,YU6#,7#,8#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-73050

22R,3Y,4Y..RU75,85,YU6#,70,80

 1
17579-73010

22R,3Y,4Y..RU75,85,YU6#,7#,8#

NO.2

 1
17571-73090

22R,3Y,4Y..RU75,85,YU6#,7#,8#

NO.1

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17589-27010

22R,3Y,4Y..RU75,85,YU6#,7#,8#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56131

22R..RU75

 1
17420-56130

22R..RU75

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56131

22R..RU75

 1
17420-56130

22R..RU75

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17572-58040

22R..RU75

BODY SIDE

 1
17561-58010

22R..RU75

PIPE SIDE

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17572-58040

22R..RU75

BODY SIDE

 1
17561-58010

22R..RU75

PIPE SIDE

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17572-58040

22R..RU75

BODY SIDE

 1
17561-58010

22R..RU75

PIPE SIDE

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17572-58040

22R..RU75

BODY SIDE

 1
17561-58010

22R..RU75

PIPE SIDE

 1
17420B - CUSHION, EXHAUST PIPE CENTER, FRONT
17567-61030

22R,1W,3Y,4Y..RU75,85,WU9#,YU8#..GEN,SA

 1
17420B - CUSHION, EXHAUST PIPE CENTER, FRONT
17567-61030

22R,1W,3Y,4Y..RU75,85,WU9#,YU8#..GEN,SA

 1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58060

22R,1W..RU75,85,WU9#..GEN,SA

 1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17567-58010

22R,1W..RU75,85,WU9#

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040

22R,1W..RU75,85,WU9#

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040

22R,1W..RU75,85,WU9#

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020

22R,1W..RU75,85,WU9#

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020

22R,1W..RU75,85,WU9#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

22R,1W..RU75,85,WU9#

CENTER PIPE TO TAIL PIPE

 1
90917-06012

22R,1W..RU75,85,WU9#

 2
90917-06012

22R..RU75,85

FRONT PIPE TO TAIL PIPE

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

22R,1W..RU75,85,WU9#

CENTER PIPE TO TAIL PIPE

 1
90917-06012

22R,1W..RU75,85,WU9#

 2
90917-06012

22R..RU75,85

FRONT PIPE TO TAIL PIPE

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

22R,1W..RU75,85,WU9#

CENTER PIPE TO TAIL PIPE

 1
90917-06012

22R,1W..RU75,85,WU9#

 2
90917-06012

22R..RU75,85

FRONT PIPE TO TAIL PIPE

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58021

22R..RU75

 1
17405-58020

22R..RU75

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58021

22R..RU75

 1
17405-58020

22R..RU75

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-56010

22R,3Y,4Y..RU75,YU6#,7#,8#

PIPE SIDE

 1
17574-58040

22R,1W..RU75,85,WU9#..GEN,SA

BODY SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-56010

22R,3Y,4Y..RU75,YU6#,7#,8#

PIPE SIDE

 1
17574-58040

22R,1W..RU75,85,WU9#..GEN,SA

BODY SIDE

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

22R,1W,3Y,4Y..RU75,85,WU9#,YU6#,7#,8#

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32005

22R,3Y,4Y..RU75,YU6#,7#,8#

 1
17435 - INSULATOR, EXHAUST PIPE HEAT
17435-35010

22R..RU75,85

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-58020

22R,1W..RU75,WU90

 1
Common parts
90105-10018
90179-06007
91511-61035
91611-40820
91611-60835
91651-40820
92612-10814
94110-40800
94120-40800
94180-41000

(8508- )22R..RU75

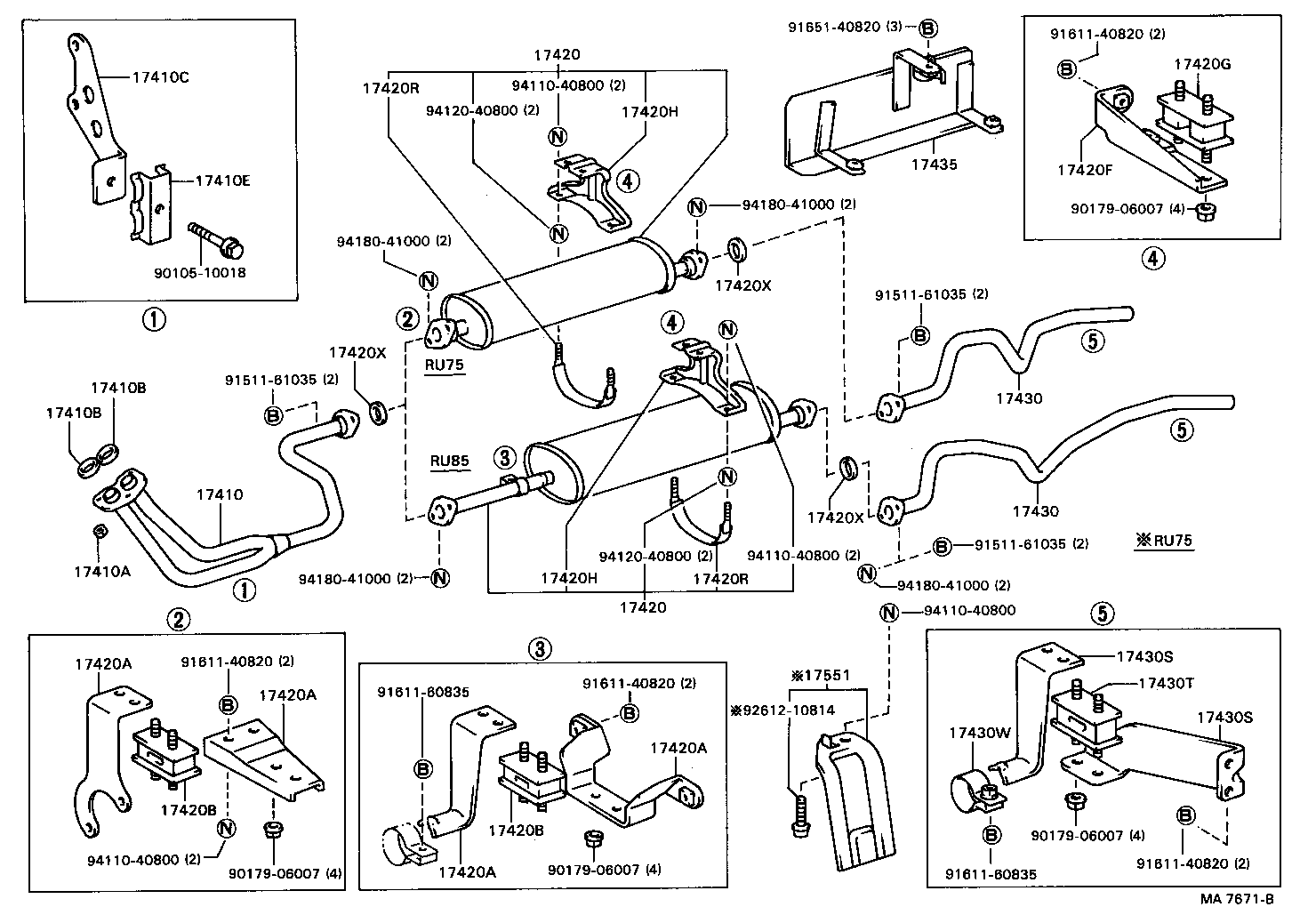

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410C 17410C 17410E 17420 17420A 17420A 17420B 17420F 17420G 17420H 17420R 17420X 17420X 17430 17430S 17430S 17430T 17430W 17435 17551 9010510018 9017906007 9017906007 9017906007 9151161035 9151161035 9161140820 9161140820 9161140820 9161160835 9165140820 9165141020 9165161040 9261210814 9411040800 9411040800 9411040800 9412040800 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-35020

22R..RU75,85

 1
17401-35050

22R..RU75,85

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

22R,1W,3Y,4Y..RU75,85,WU9#,YU6#,7#,8#

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

22R..RU75,85

 2
90917-06001

22R,3Y,4Y..RU75,85,YU6#,7#,8#

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

22R..RU75,85

 2
90917-06001

22R,3Y,4Y..RU75,85,YU6#,7#,8#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-73050

22R,3Y,4Y..RU75,85,YU6#,70,80

 1
17579-73010

22R,3Y,4Y..RU75,85,YU6#,7#,8#

NO.2

 1
17571-73090

22R,3Y,4Y..RU75,85,YU6#,7#,8#

NO.1

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-73050

22R,3Y,4Y..RU75,85,YU6#,70,80

 1
17579-73010

22R,3Y,4Y..RU75,85,YU6#,7#,8#

NO.2

 1
17571-73090

22R,3Y,4Y..RU75,85,YU6#,7#,8#

NO.1

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17589-27010

22R,3Y,4Y..RU75,85,YU6#,7#,8#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-56131

22R..RU75

 1
17420-56130

22R..RU75

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17572-58040

22R..RU75

BODY SIDE

 1
17561-58010

22R..RU75

PIPE SIDE

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17572-58040

22R..RU75

BODY SIDE

 1
17561-58010

22R..RU75

PIPE SIDE

 1
17420B - CUSHION, EXHAUST PIPE CENTER, FRONT
17567-61030

22R,1W,3Y,4Y..RU75,85,WU9#,YU8#..GEN,SA

 1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58060

22R,1W..RU75,85,WU9#..GEN,SA

 1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17567-58010

22R,1W..RU75,85,WU9#

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040

22R,1W..RU75,85,WU9#

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020

22R,1W..RU75,85,WU9#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

22R,1W..RU75,85,WU9#

CENTER PIPE TO TAIL PIPE

 1
90917-06012

22R,1W..RU75,85,WU9#

 2
90917-06012

22R..RU75,85

FRONT PIPE TO TAIL PIPE

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

22R,1W..RU75,85,WU9#

CENTER PIPE TO TAIL PIPE

 1
90917-06012

22R,1W..RU75,85,WU9#

 2
90917-06012

22R..RU75,85

FRONT PIPE TO TAIL PIPE

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58021

22R..RU75

 1
17405-58020

22R..RU75

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-56010

22R,3Y,4Y..RU75,YU6#,7#,8#

PIPE SIDE

 1
17574-58040

22R,1W..RU75,85,WU9#..GEN,SA

BODY SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-56010

22R,3Y,4Y..RU75,YU6#,7#,8#

PIPE SIDE

 1
17574-58040

22R,1W..RU75,85,WU9#..GEN,SA

BODY SIDE

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

22R,1W,3Y,4Y..RU75,85,WU9#,YU6#,7#,8#

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32005

22R,3Y,4Y..RU75,YU6#,7#,8#

 1
17435 - INSULATOR, EXHAUST PIPE HEAT
17435-35010

22R..RU75,85

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-58020

22R,1W..RU75,WU90

 1
Common parts
90105-10018
90179-06007
91511-61035
91611-40820
91611-60835
91651-40820
91651-41020
91651-61040
92612-10814
94110-40800
94120-40800
94180-41000
