RU75L-MDDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17168 17172 17173 9011910346 9017908088 9038708056 9056012033 9056012033 9161160825 9165160816 9212260820 9411040800 9418461000 9461310800 9461310800
Part # Description Qty Price
Common parts
90119-10346
90179-08088
90387-08056
90560-12033
91611-60825
91651-60816
92122-60820
94110-40800
94184-61000
94613-10800

(8409- )22R

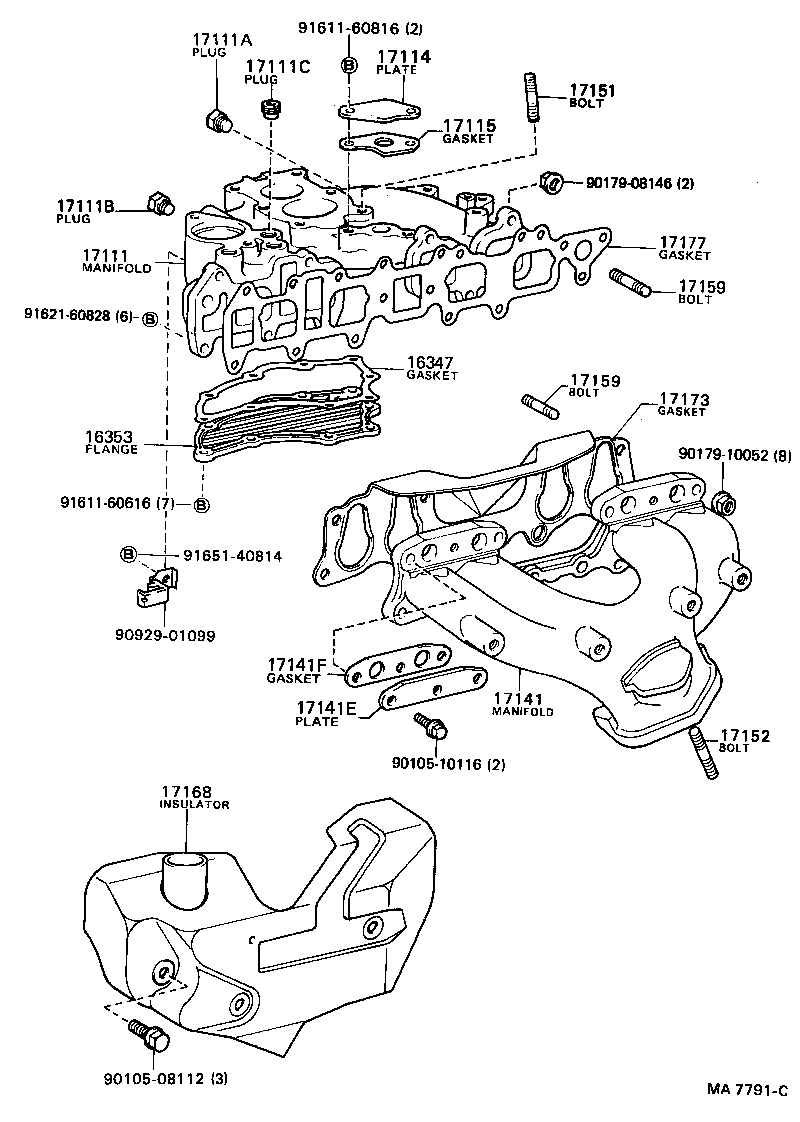

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17111B 17111C 17114 17115 17141 17141E 17141F 17151 17152 17159 17159 17168 17173 17177 9010508112 9010510116 9017908146 9017910052 9092901099 9161160616 9161160816 9162160828 9165140814
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35030

22R..RU75,85

 1
16353 - FLANGE, WATER BY-PASS
16353-35030

22R..RU75,85

 1
17111 - MANIFOLD, INTAKE
17111-35040

22R..RU75,85

 1
17111A - PLUG, NO.1
90345-51025

22R..RU75,85

 1
17111B - PLUG, NO.2
90345-53007

22R..RU75,85

 3
17111C - PLUG, NO.3
90340-16002

22R..RU75,85

 1
17114 - PLATE, INTAKE MANIFOLD HOLE COVER
25617-38010

22R..RU75,85

 1
17115 - GASKET, INTAKE MANIFOLD HOLE COVER
25628-38010

22R..RU75,85

 1
17141 - MANIFOLD, EXHAUST
17141-35100

22R..RU75,85

 1
17141-35130

22R..RU75,85

 1
17141E - PLATE, EXHAUST MANIFOLD
17148-35030

22R..RU75,85

 2
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
17378-35010

22R..RU75,85

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

22R..RU75,85

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

22R..RU75,85

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R..RU75,85

INTAKE MANIFOLD SIDE

 2
90116-10067

22R..RU75,85

EXHAUST MANIFOLD SIDE,UPR

 4
90116-10064

22R..RU75,85

EXHAUST MANIFOLD SIDE,LWR

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

22R..RU75,85

INTAKE MANIFOLD SIDE

 2
90116-10067

22R..RU75,85

EXHAUST MANIFOLD SIDE,UPR

 4
90116-10064

22R..RU75,85

EXHAUST MANIFOLD SIDE,LWR

 4
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35090

22R..RU75,85

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35060

22R..RU75,85

 1
17173-35090

22R..RU75,85

 1
17173-35060

22R..RU75,85

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35040

22R..RU75,85

 1
Common parts
90105-08112
90105-10116
90179-08146
90179-10052
90929-01099
91611-60616
91611-60816
91621-60828
91651-40814
