RU25RD-QRTUQ (1978)

Toyota Dyna

Production Mar 1978 - Aug 1980
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7803-7806)BU25,RU25 ; (7806-8408)BU25 ; (8304-8408)RU25

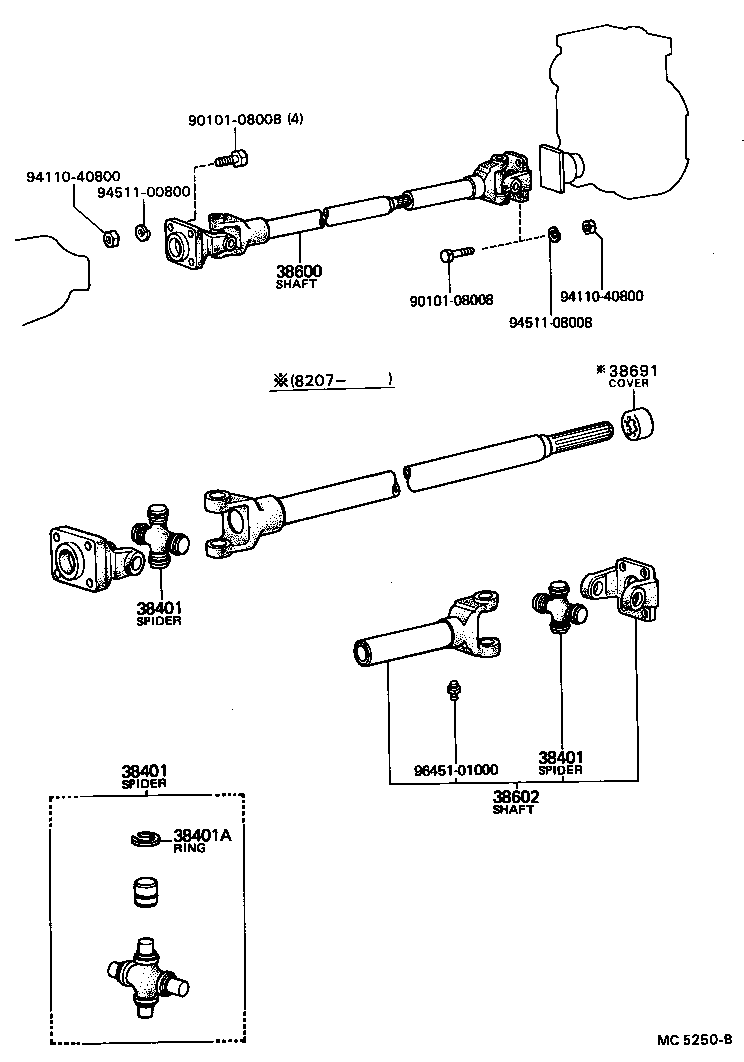

Click highlighted areas on diagram

RU25=S.ARABIA SPEC

diagram 38401 38401 38401 38401A 38600 38602 38691 9010108008 9010108008 9411040800 9411040800 9451100800 9451108008 9645101000
Part # Description Qty Price
38401 - SPIDER, UNIVERSAL JOINT (FOR OIL PUMP)
38605-93101

BU25,RU25

 2
38401 - SPIDER, UNIVERSAL JOINT (FOR OIL PUMP)
38605-93101

BU25,RU25

 2
38401 - SPIDER, UNIVERSAL JOINT (FOR OIL PUMP)
38605-93101

BU25,RU25

 2
38401A - RING, UNIVERSAL JOINT NEEDLE
90521-22001

BU25,RU25

 8
38600 - SHAFT ASSY, OIL PUMP DRIVE
38600-93120

BU25,RU25

 1
Common parts
90101-08008
94110-40800
94511-00800
94511-08008
96451-01000
