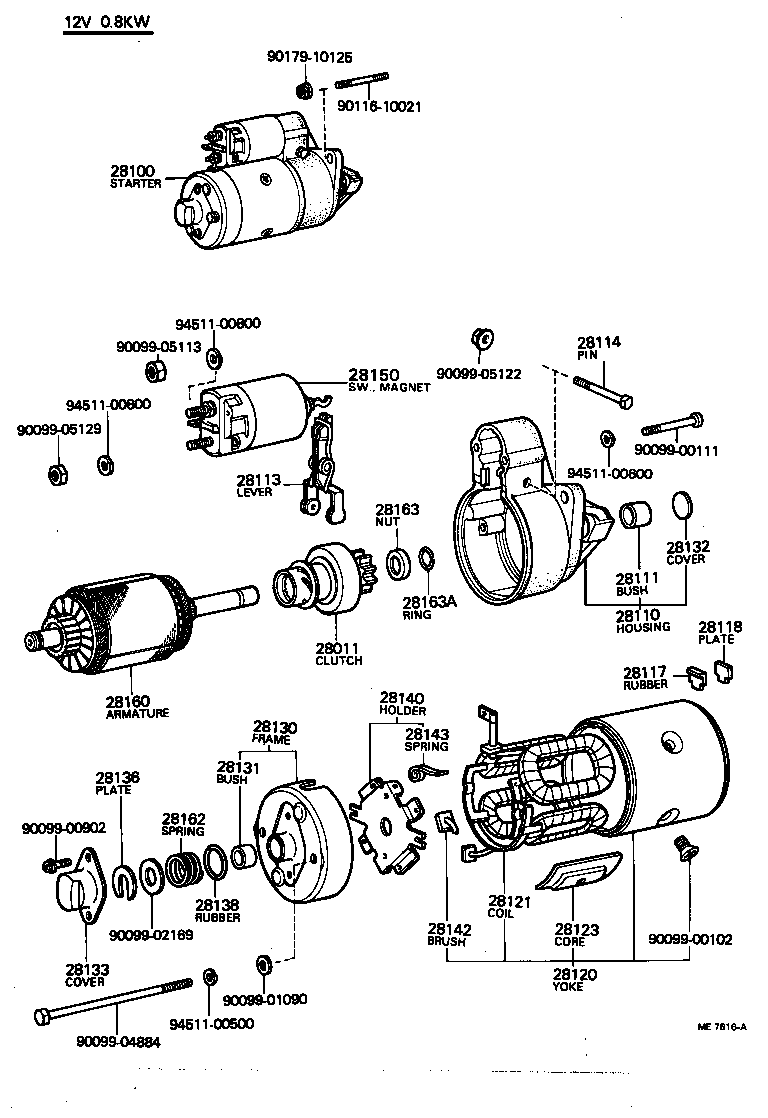

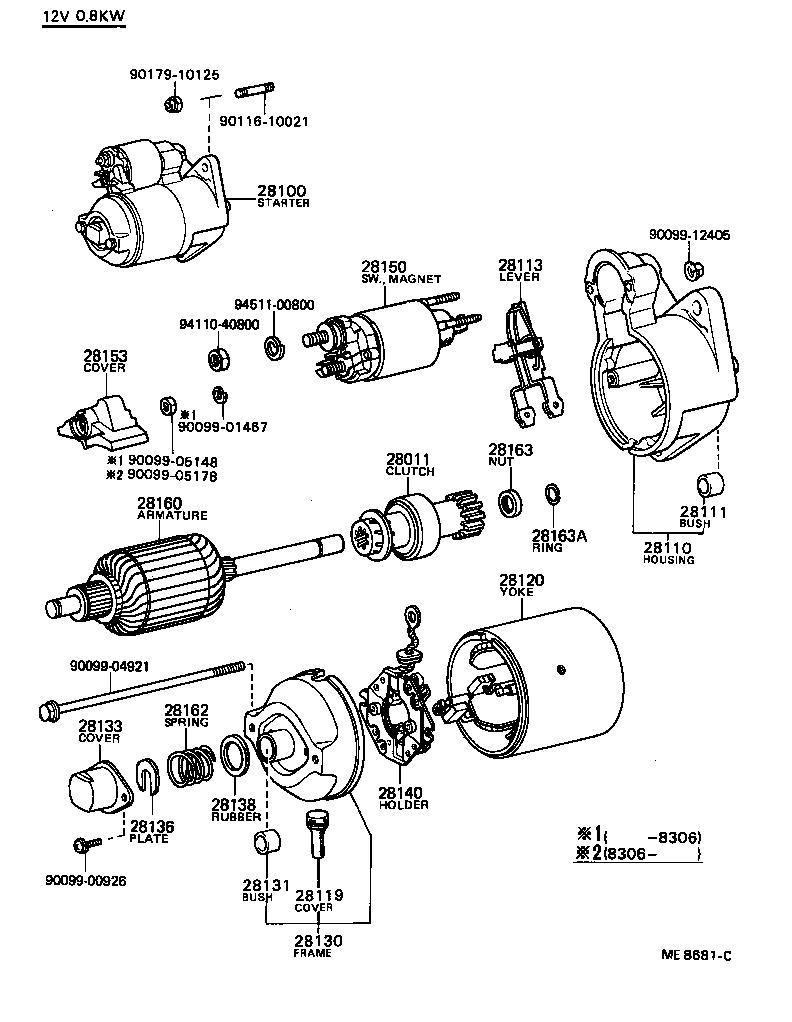

RU20R-QRBT3 (1977)
Toyota Dyna
(7708-8104)H ; (8204-8408)2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28011-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28011-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-36070 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28100-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW W/EDIC |
1 | ||
| 28100-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW,12V 0.8KW |
1 | ||
| 28100-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100-40060 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100-37011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40045 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28110-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28110-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28115-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-41013 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28118-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28199-77090 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28120-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28120-36040 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28120-40062 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28120-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-40060 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28130-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28130-21011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28130-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77090 |
B,H,2B,3B,2J..BU20,25,3#,HU30,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28140-41012 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28140-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28140-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-33020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28150-34070 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28150-22011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28150-34070 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28150-15011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28150-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28150-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40014 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28160-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 90099-10119 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 90099-10119 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
6 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 92136-61240 | ||||
| 93319-15008 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94512-01200 | ||||

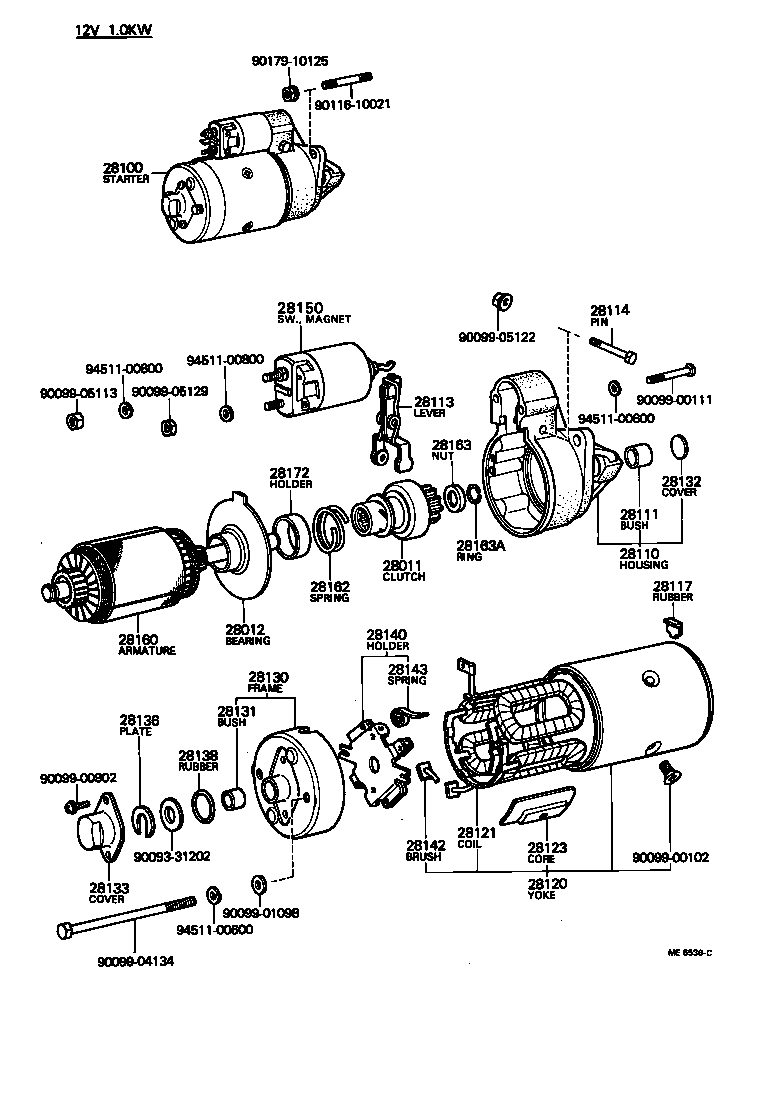

(7708-8408)5R..EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28011-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28011-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28012 - BEARING SUB-ASSY, CENTER | ||||
| 28126-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-36070 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28100-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW W/EDIC |
1 | ||
| 28100-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW,12V 0.8KW |
1 | ||
| 28100-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100-40060 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100-37011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40045 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28110-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28110-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28115-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28113-41011 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28113-15011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-41011 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28114-41011 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41013 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28117-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28120-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28120-36040 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28120-40062 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28120-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-34070 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28121-36040 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28121-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28121-34070 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28121-42020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-40012 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28123-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-40060 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28130-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28130-21011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28130-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 28131-20010 |
5R..RU2#,30 STD,12V 0.8KW,1.0KW |
1 | ||
| 90099-10040 |
5R..RU2#,30..EUR,GEN U/S 0.5 12V 1.0KW |
1 | ||
| 90099-10134 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 90099-10039 |
5R..RU2#,30..EUR,GEN U/S 0.3 12V 1.0KW |
1 | ||
| 90099-10039 |
5R..RU2#,30 U/S 0.3,12V 0.8KW,1.0KW |
1 | ||
| 90099-10040 |
5R..RU2#,30 U/S 0.5,12V 0.8KW,1.0KW |
1 | ||
| 28131-20010 |
5R..RU2#,30..EUR,GEN STD 12V 1.0KW |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41011 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28166-41011 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28132-40010 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28132-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28136-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28136-40010 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28138-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28138-40010 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28140-41012 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28140-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28140-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
4 | ||
| 28142-25011 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
4 | ||
| 28142-21010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
5R..RU2#,30 12V 0.8KW,1.0KW |
4 | ||
| 28143-40010 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-33020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28150-34070 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28150-22011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28150-34070 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28150-15011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28150-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28150-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40014 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28160-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28162-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28162-41022 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28172 - HOLDER, STARTER SPRING | ||||
| 28172-41021 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90093-31202 | ||||
| 90099-00102 | ||||
| 90099-00111 | ||||
| 90099-00902 | ||||
| 90099-01098 | ||||
| 90099-04134 | ||||
| 90099-05113 | ||||
| 90099-05122 | ||||
| 90099-05129 | ||||
| 90116-10021 | ||||
| 90179-10125 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
(7708-7909)5R..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28011-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28011-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-36070 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28100-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW W/EDIC |
1 | ||
| 28100-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW,12V 0.8KW |
1 | ||
| 28100-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100-40060 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100-37011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40045 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28110-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28110-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28115-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28113-41011 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28113-15011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-41011 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28114-41011 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41013 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28117-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-41013 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28118-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28120-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28120-36040 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28120-40062 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28120-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-34070 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28121-36040 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28121-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28121-34070 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28121-42020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-40012 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28123-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-40060 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28130-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28130-21011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28130-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 28131-20010 |
5R..RU2#,30 STD,12V 0.8KW,1.0KW |
1 | ||
| 90099-10040 |
5R..RU2#,30..EUR,GEN U/S 0.5 12V 1.0KW |
1 | ||
| 90099-10134 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 90099-10039 |
5R..RU2#,30..EUR,GEN U/S 0.3 12V 1.0KW |
1 | ||
| 90099-10039 |
5R..RU2#,30 U/S 0.3,12V 0.8KW,1.0KW |
1 | ||
| 90099-10040 |
5R..RU2#,30 U/S 0.5,12V 0.8KW,1.0KW |
1 | ||
| 28131-20010 |
5R..RU2#,30..EUR,GEN STD 12V 1.0KW |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41011 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28166-41011 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28132-40010 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28132-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28136-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28136-40010 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28138-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28138-40010 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28140-41012 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28140-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28140-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
4 | ||
| 28142-25011 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
4 | ||
| 28142-21010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
5R..RU2#,30 12V 0.8KW,1.0KW |
4 | ||
| 28143-40010 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-33020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28150-34070 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28150-22011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28150-34070 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28150-15011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28150-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28150-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40014 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28160-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28162-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28162-41022 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| Common parts | ||||
| 90099-00102 | ||||
| 90099-00111 | ||||
| 90099-00902 | ||||
| 90099-01090 | ||||
| 90099-02169 | ||||
| 90099-04884 | ||||
| 90099-05113 | ||||
| 90099-05122 | ||||
| 90099-05129 | ||||
| 90116-10021 | ||||
| 90179-10125 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
(7909-8408)5R..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28011-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28011-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-36070 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28100-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW W/EDIC |
1 | ||
| 28100-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW,12V 0.8KW |
1 | ||
| 28100-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100-40060 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100-37011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40045 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28110-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28110-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28115-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28113-41011 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28113-15011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28199-77090 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28120-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28120-36040 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28120-40062 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28120-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-40060 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28130-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28130-21011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28130-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 28131-20010 |
5R..RU2#,30 STD,12V 0.8KW,1.0KW |
1 | ||
| 90099-10040 |
5R..RU2#,30..EUR,GEN U/S 0.5 12V 1.0KW |
1 | ||
| 90099-10134 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 90099-10039 |
5R..RU2#,30..EUR,GEN U/S 0.3 12V 1.0KW |
1 | ||
| 90099-10039 |
5R..RU2#,30 U/S 0.3,12V 0.8KW,1.0KW |
1 | ||
| 90099-10040 |
5R..RU2#,30 U/S 0.5,12V 0.8KW,1.0KW |
1 | ||
| 28131-20010 |
5R..RU2#,30..EUR,GEN STD 12V 1.0KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28132-40010 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28132-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28136-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28136-40010 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28138-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28138-40010 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28140-41012 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28140-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28140-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-33020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28150-34070 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28150-22011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28150-34070 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28150-15011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28150-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28150-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28153 - COVER, MAGNET SWITCH | ||||
| 28159-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40014 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28160-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28162-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28162-41022 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| Common parts | ||||
| 90099-00926 | ||||
| 90099-01467 | ||||
| 90099-04921 | ||||
| 90099-05148 | ||||
| 90099-05178 | ||||
| 90099-12405 | ||||
| 90116-10021 | ||||
| 90179-10125 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(7708- )B,2B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28011-41011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28011-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-36070 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28100-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW W/EDIC |
1 | ||
| 28100-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW,12V 0.8KW |
1 | ||
| 28100-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100-40060 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28100-37011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-40045 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28110-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28110-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28115-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-41013 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28118-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28199-77090 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28120-40061 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28120-36040 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28120-40062 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28120-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-40060 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28130-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28130-21011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28130-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77090 |
B,H,2B,3B,2J..BU20,25,3#,HU30,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28140-41012 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28140-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28140-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-33020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28150-34070 |
5R..RU2#,30 12V 0.8KW,1.0KW |
1 | ||
| 28150-22011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28150-34070 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28150-15011 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28150-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28150-37010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-40014 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160-41020 |
5R..RU2#,30..EUR,GEN 12V 1.0KW |
1 | ||
| 28160-15010 |
5R..RU2#,30..ARL,GEN 12V 0.8KW |
1 | ||
| 28160-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 90099-10119 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 90099-10119 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
6 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90116-14260 | ||||
| 91112-41465 | ||||
| 93319-15008 | ||||
| 94115-41400 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
