RU20R-JRBT3 (1980)

Toyota Dyna

Production Aug 1980 - Apr 1981
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8104)H

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17171 17171 17172 17172 17173 17173 17173 17173 17173 17173 9017908012 9411040800 9454100800 9461110800
Part # Description Qty Price
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

5R..RU2#,30

L=37,S=20&13

 3
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-44010

5R..RU2#,30

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-44010

5R..RU2#,30

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-44011

5R..RU2#,30

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-44011

5R..RU2#,30

 1
Common parts
90179-08012
94110-40800
94541-00800
94611-10800

(7708-8408)5R

Click highlighted areas on diagram

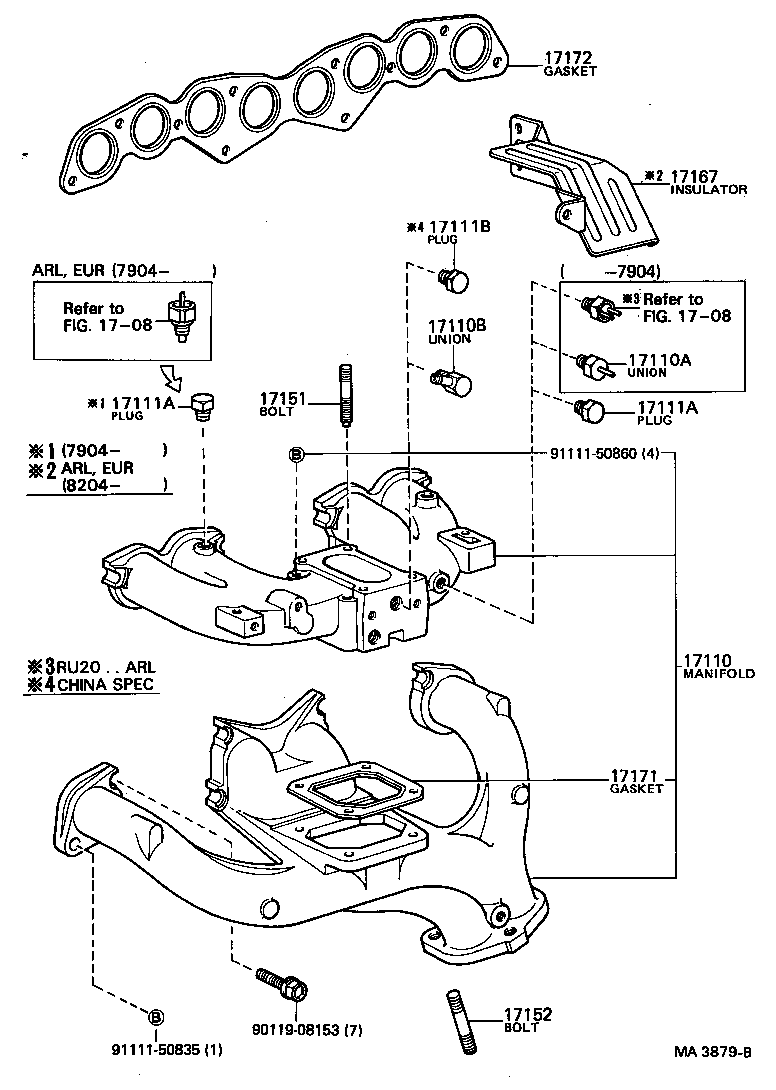

diagram 1708 1708 17110 17110A 17110B 17111A 17111A 17111B 17151 17152 17167 17171 17172 9011908153 9111150835 9111150860
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-44072

5R..RU2#,30

 1
17110A - UNION, VACUUM HOSE
90404-51093

5R..RU2#,30

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90407-10040

5R..RU2#,30

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08276

5R..RU2#,30

L=41,S=11&17

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

5R..RU2#,30

L=37,S=20&13

 3
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-44010

5R..RU2#,30

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-44011

5R..RU2#,30

 1
Common parts
90119-08153
91111-50835
91111-50860
Linked diagrams
1708

(8008- )B,2B,3B

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17172 17172 17173 9011910211 9017908123 9017908123 9161160825 9165160816 9418461000
Part # Description Qty Price
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

5R..RU2#,30

L=37,S=20&13

 3
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-44011

5R..RU2#,30

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-44011

5R..RU2#,30

 1
Common parts
90119-10211
90179-08123
91611-60825
91651-60816
94184-61000
