RU20LV-JR (1979)

Toyota Dyna

Production Dec 1979 - Apr 1981
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)V

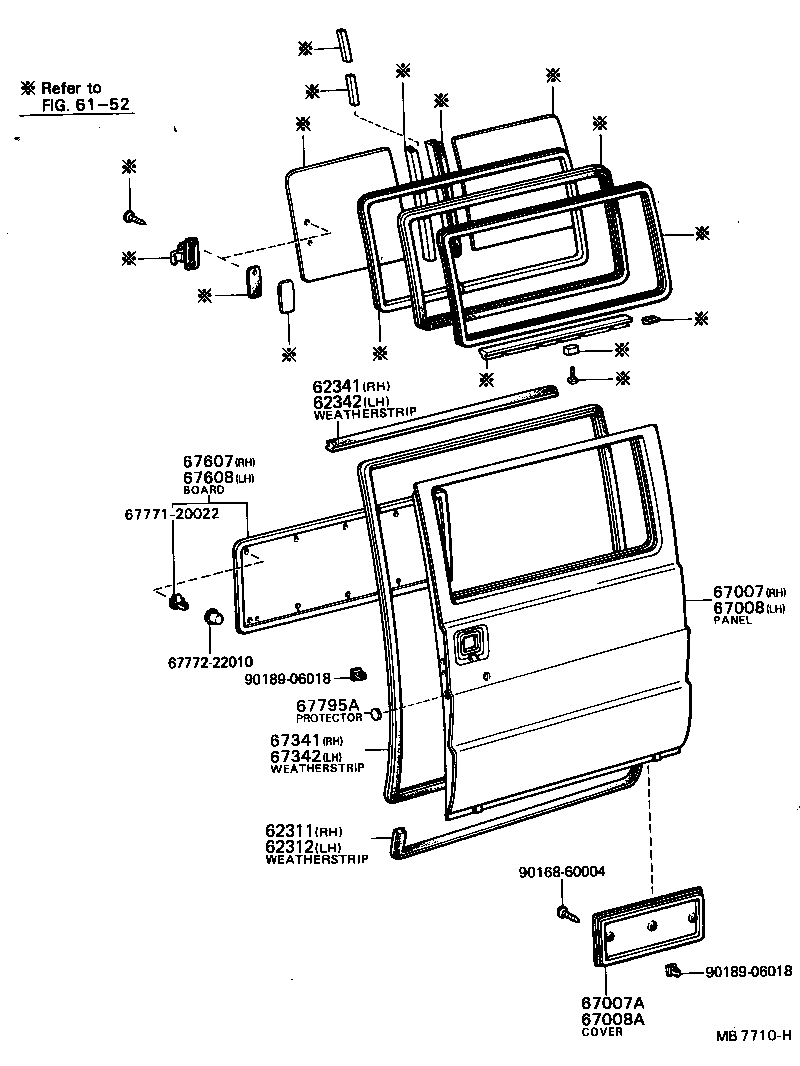

Click highlighted areas on diagram

diagram 6152 62311 62312 62341 62342 67007 67007 67007A 67008 67008 67008A 67341 67342 67521 67522 67607 67608 6777120022 6777222010 67795A 9016860004 9016860004 9018906018 9018906018 9095001004
Part # Description Qty Price
62311 - WEATHERSTRIP, DOOR OPENING TRIM, LOWER RH
62344-95A00

BU20,JU20,RU20..LHD..(HRF,SRF)

 1
62341 - WEATHERSTRIP, DOOR OPENING, UPPER RH
62343-95A00

BU20,JU20,RU20..LHD..(HRF,SRF)

 1
67007 - PANEL SUB-ASSY, SLIDE DOOR, RH
67003-92615

BU20,RU20..BUS;BU20,JU20,RU20..LHD..VSG

 1
67007 - PANEL SUB-ASSY, SLIDE DOOR, RH
67003-92615

BU20,RU20..BUS;BU20,JU20,RU20..LHD..VSG

 1
67007A - COVER SUB-ASSY, SLIDE DOOR PANEL LOWER, RH
67406-95A00

BU20,JU20,RU20..LHD..(HRF,SRF)

 2
67341 - WEATHERSTRIP, SLIDE DOOR, RH
62341-95A00

BU20,JU20,RU20..LHD..(HRF,SRF)

 1
67607 - BOARD SUB-ASSY, SLIDE DOOR TRIM, RH
67630-95A0006

BU20,JU20,RU20..LHD..VSG

BROWN,BROWN

 1
Common parts
67771-20022
67772-22010
90168-60004
90189-06018
90950-01004
Linked diagrams
6152

(7708-8104)VSG..GEN ; (7708-8104)VSG..GEN ; (8104- )BUS ; (8104- )BUS

Click highlighted areas on diagram

diagram 6152 62311 62312 62341 62342 67007 67007A 67008 67008A 67341 67342 67607 67608 6777120022 6777222010 67795A 9016860004 9018906018 9018906018
Part # Description Qty Price
62311 - WEATHERSTRIP, DOOR OPENING TRIM, LOWER RH
62344-95A00

BU20,JU20,RU20..LHD..(HRF,SRF)

 1
62341 - WEATHERSTRIP, DOOR OPENING, UPPER RH
62343-95A00

BU20,JU20,RU20..LHD..(HRF,SRF)

 1
67007 - PANEL SUB-ASSY, SLIDE DOOR, RH
67003-92615

BU20,RU20..BUS;BU20,JU20,RU20..LHD..VSG

 1
67007A - COVER SUB-ASSY, SLIDE DOOR PANEL LOWER, RH
67406-95A00

BU20,JU20,RU20..LHD..(HRF,SRF)

 2
67341 - WEATHERSTRIP, SLIDE DOOR, RH
62341-95A00

BU20,JU20,RU20..LHD..(HRF,SRF)

 1
67607 - BOARD SUB-ASSY, SLIDE DOOR TRIM, RH
67630-95A0006

BU20,JU20,RU20..LHD..VSG

BROWN,BROWN

 1
Common parts
67771-20022
67772-22010
90168-60004
90189-06018
Linked diagrams
6152
