RU20LV-JR (1979)

Toyota Dyna

Production Dec 1979 - Apr 1981
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)HRF,SRF

Click highlighted areas on diagram

diagram 62902 62930D 62940 9016440032 9354064020
Part # Description Qty Price
62902 - ORNAMENT SUB-ASSY, REAR VENTILATOR, LH
61513-95A00

BU20,JU20,RU20..HRF,SRF

 1
62930D - GASKET, ROOF SIDE VENT DUCT
61517-95A00

BU20,JU20,RU20..V

 1
62940 - DUCT ASSY, ROOF SIDE VENT, LH
61510-95A00

BU20,JU20,RU20..HRF,SRF

 1
Common parts
90164-40032
93540-64020

(7708-8104)VSG..GEN ; (8104-8408)BUS

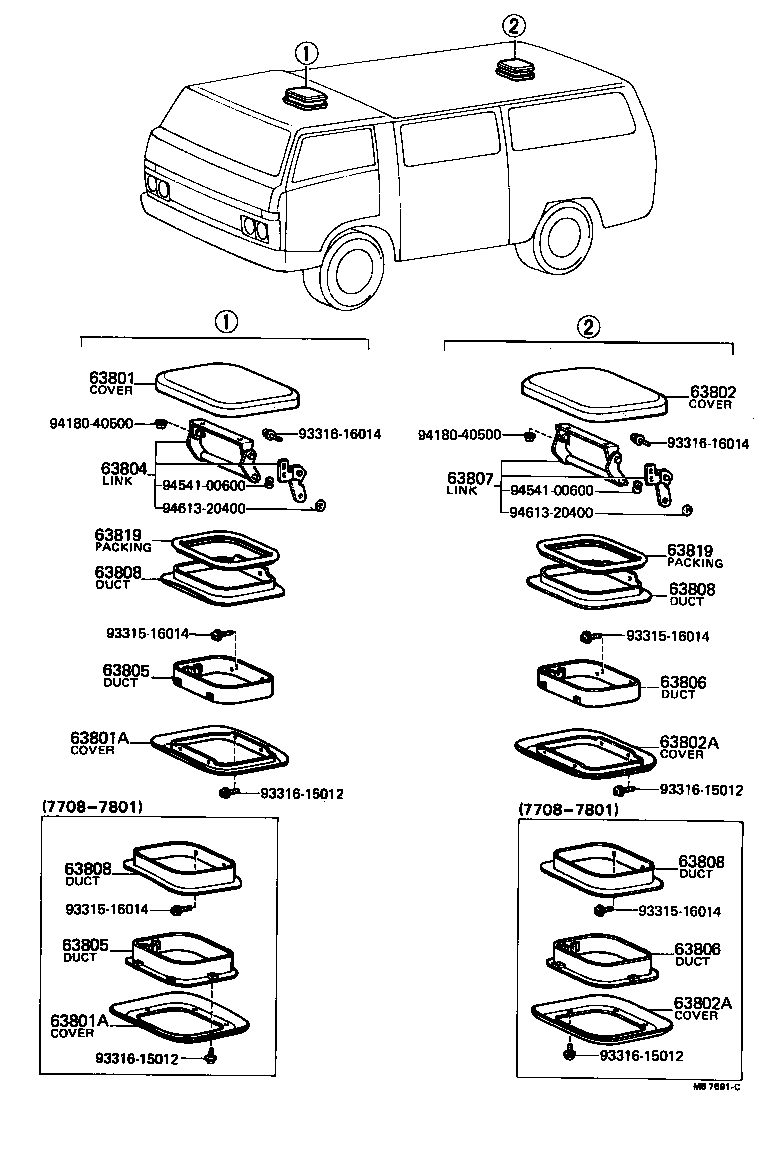

Click highlighted areas on diagram

diagram 63801 63801A 63801A 63802 63802A 63802A 63804 63805 63805 63806 63806 63807 63808 63808 63808 63808 63819 63819 9331516014 9331516014 9331516014 9331516014 9331615012 9331615012 9331615012 9331615012 9331616014 9331616014 9418040500 9418040500 9454100600 9454100600 9461320400 9461320400
Part # Description Qty Price
63801 - COVER SUB-ASSY, ROOF VENTILATOR, FRONT
63402-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63801A - COVER, ROOF VENTILATOR, INNER FRONT
63423-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63801A - COVER, ROOF VENTILATOR, INNER FRONT
63423-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63802 - COVER SUB-ASSY,ROOF VENTILATOR, REAR
63402-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63802A - COVER, ROOF VENTILATOR, INNER REAR
63424-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63802A - COVER, ROOF VENTILATOR, INNER REAR
63424-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63804 - LINK SUB-ASSY, ROOF VENTILATOR, FRONT
63809-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63805 - DUCT SUB-ASSY, ROOF VENTILATOR, INNER FRONT
63401-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63805 - DUCT SUB-ASSY, ROOF VENTILATOR, INNER FRONT
63401-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63806 - DUCT SUB-ASSY, ROOF VENTILATOR, INNER REAR
63401-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63806 - DUCT SUB-ASSY, ROOF VENTILATOR, INNER REAR
63401-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63807 - LINK SUB-ASSY, ROOF VENTILATOR, REAR
63809-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63808 - DUCT SUB-ASSY, ROOF VENTILATOR, OUTER
63411-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,FR

 1
63412-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,RR

 1
63808 - DUCT SUB-ASSY, ROOF VENTILATOR, OUTER
63411-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,FR

 1
63412-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,RR

 1
63808 - DUCT SUB-ASSY, ROOF VENTILATOR, OUTER
63411-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,FR

 1
63412-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,RR

 1
63808 - DUCT SUB-ASSY, ROOF VENTILATOR, OUTER
63411-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,FR

 1
63412-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,RR

 1
63819 - PACKING, ROOF VENTILATOR
63481-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 2
63819 - PACKING, ROOF VENTILATOR
63481-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 2
Common parts
93315-16014
93316-15012
93316-16014
94180-40500
94541-00600
94613-20400
