RU20LHV-QRB (1977)

Toyota Dyna

Production Aug 1977 - Aug 1980
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )HRF,SRF

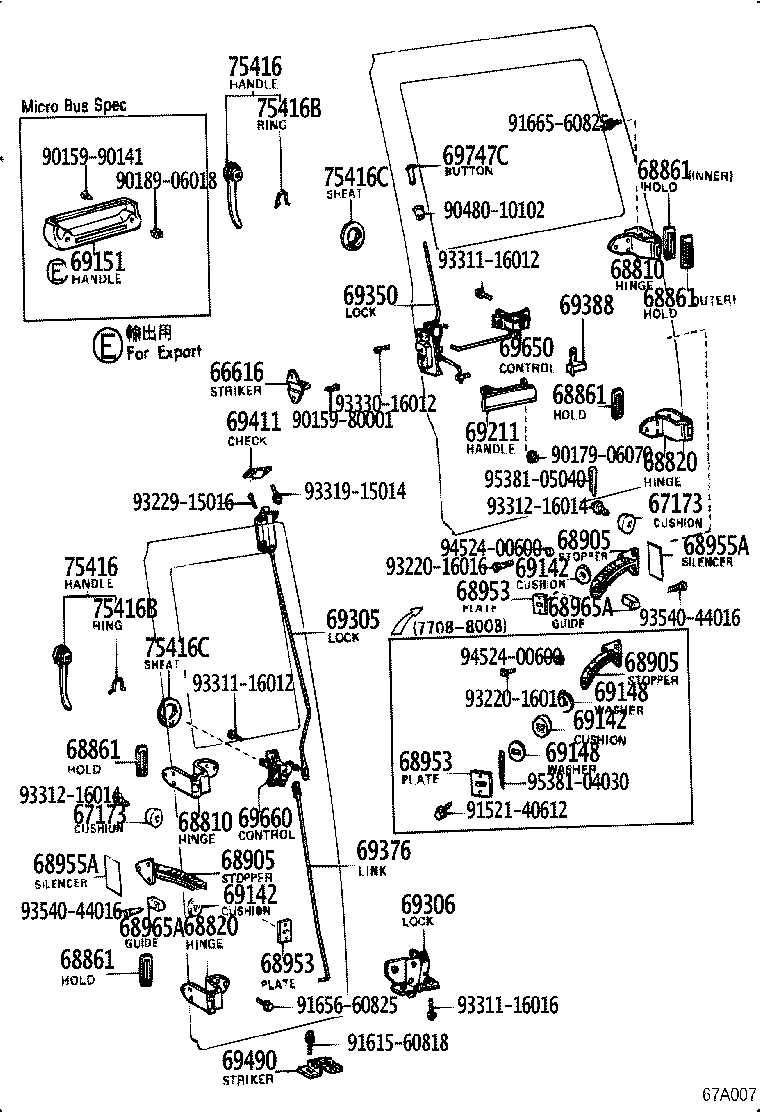

Click highlighted areas on diagram

diagram 66616 67173 67173 68810 68810 68820 68820 68861 68861 68861 68861 68861 68905 68905 68905 68953 68953 68953 68955A 68955A 68965A 68965A 69142 69142 69142 69148 69148 69151 69211 69305 69306 69350 69376 69388 69411 69490 69650 69660 69747C 75416 75416 75416B 75416B 75416C 75416C 9015980001 9015990141 9017906070 9018906018 9048010102 9152140612 9161560818 9165660825 9166560825 9322016016 9322016016 9322915016 9331116012 9331116012 9331116016 9331216014 9331216014 9331915014 9333016012 9354044016 9354044016 9452400600 9452400600 9538104030 9538105040
Part # Description Qty Price
66616 - STRIKER, TAIL GATE LOCK
69410-95010

BU20,JU20,RU20..HRF,SRF

 1
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-92605

BU20,JU20,RU20..V

 2
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-92605

BU20,JU20,RU20..V

 2
68820 - HINGE ASSY, BACK DOOR, LOWER
68803-92605

BU20,JU20,RU20..V

 2
68820 - HINGE ASSY, BACK DOOR, LOWER
68803-92605

BU20,JU20,RU20..V

 2
68861 - HOLD, BACK DOOR HINGE
68862-92605

BU20,JU20,RU20..HRF,SRF

OUTER

 4
68861-92605

BU20,JU20,RU20..HRF,SRF

INNER

 4
68861 - HOLD, BACK DOOR HINGE
68862-92605

BU20,JU20,RU20..HRF,SRF

OUTER

 4
68861-92605

BU20,JU20,RU20..HRF,SRF

INNER

 4
68861 - HOLD, BACK DOOR HINGE
68862-92605

BU20,JU20,RU20..HRF,SRF

OUTER

 4
68861-92605

BU20,JU20,RU20..HRF,SRF

INNER

 4
68861 - HOLD, BACK DOOR HINGE
68862-92605

BU20,JU20,RU20..HRF,SRF

OUTER

 4
68861-92605

BU20,JU20,RU20..HRF,SRF

INNER

 4
68861 - HOLD, BACK DOOR HINGE
68862-92605

BU20,JU20,RU20..HRF,SRF

OUTER

 4
68861-92605

BU20,JU20,RU20..HRF,SRF

INNER

 4
68905 - STOPPER SUB-ASSY, BACK DOOR OPEN
68905-92606

BU20,JU20,RU20..V

 2
68905 - STOPPER SUB-ASSY, BACK DOOR OPEN
68905-92606

BU20,JU20,RU20..V

 2
68905 - STOPPER SUB-ASSY, BACK DOOR OPEN
68905-92606

BU20,JU20,RU20..V

 2
68953 - PLATE, BACK DOOR OPEN STOPPER ARM GUIDE
68953-92605

BU20,JU20,RU20..V

 2
68953 - PLATE, BACK DOOR OPEN STOPPER ARM GUIDE
68953-92605

BU20,JU20,RU20..V

 2
68953 - PLATE, BACK DOOR OPEN STOPPER ARM GUIDE
68953-92605

BU20,JU20,RU20..V

 2
69142 - CUSHION, DOOR OPEN STOPPER
69142-92605

BU20,JU20,RU20..V

 2
69142 - CUSHION, DOOR OPEN STOPPER
69142-92605

BU20,JU20,RU20..V

 2
69142 - CUSHION, DOOR OPEN STOPPER
69142-92605

BU20,JU20,RU20..V

 2
69148 - WASHER, DOOR OPEN STOPPER
69148-92600

BU20,JU20,RU20..V

 4
69148 - WASHER, DOOR OPEN STOPPER
69148-92600

BU20,JU20,RU20..V

 4
69211 - HANDLE, BACK DOOR OUTSIDE, RH
69210-95403

BU20,JU20,RU20..HRF,SRF

 1
69305 - LOCK SUB-ASSY, BACK DOOR, UPPER
69370-92605

BU20,JU20,RU20..HRF,SRF

 1
69306 - LOCK SUB-ASSY, BACK DOOR, LOWER
69350-95A00

BU20,JU20,RU20..HRF,SRF

 1
69350 - LOCK ASSY, BACK DOOR
69330-92605

BU20,JU20,RU20..HRF,SRF

 1
69376 - LINK, BACK DOOR LOCK
69375-92605

BU20,JU20,RU20..HRF,SRF

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69388-12010

BU20,JU20,RU20..HRF,SRF

 1
69411 - CHECK, BACK DOOR
69431-92605

BU20,JU20,RU20..HRF,SRF

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69450-95A00

BU20,JU20,RU20..HRF,SRF

 1
69650 - CONTROL ASSY, BACK DOOR LOCK REMOTE, RH
69650-92605

BU20,JU20,RU20..HRF,SRF

 1
69660 - CONTROL ASSY, BACK DOOR LOCK REMOTE, LH
69660-92606

BU20,JU20,RU20..V

 1
69747C - BUTTON, DOOR LOCKING(FOR BACK DOOR)
69747-20020

BU20,JU20,RU20..HRF,SRF

 1
75416 - HANDLE, TAIL GATE, INSIDE
69271-95110

BU20,JU20,RU20..HRF,SRF

 2
75416 - HANDLE, TAIL GATE, INSIDE
69271-95110

BU20,JU20,RU20..HRF,SRF

 2
75416B - RING, SNAP (FOR BACK DOOR INSIDE HANDLE)
90520-01192

BU20,JU20,RU20..HRF,SRF

 2
75416B - RING, SNAP (FOR BACK DOOR INSIDE HANDLE)
90520-01192

BU20,JU20,RU20..HRF,SRF

 2
75416C - SHEET(FOR BACK DOOR INSIDE HANDLE)
69171-95110

BU20,JU20,RU20..HRF,SRF

 2
75416C - SHEET(FOR BACK DOOR INSIDE HANDLE)
69171-95110

BU20,JU20,RU20..HRF,SRF

 2
Common parts
90159-80001
90159-90141
90179-06070
90189-06018
90480-10102
91521-40612
91615-60818
91656-60825
91665-60825
93220-16016
93229-15016
93311-16012
93311-16016
93312-16014
93319-15014
93330-16012
93540-44016
94524-00600
95381-04030
95381-05040
