RU20LHV-QRB (1977)
Toyota Dyna

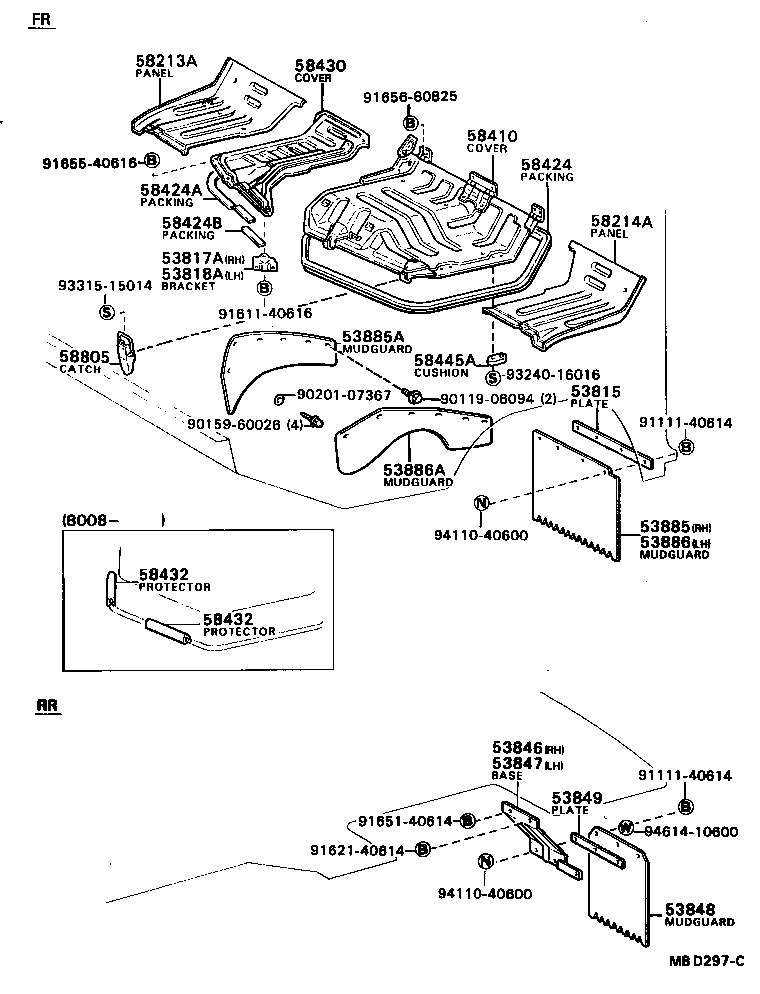

(7708-8408)HRF,SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53815 - PLATE, MUDGUARD RUBBER SET, FRONT | ||||
| 53814-92605 |
BU20,JU20,RU20..HRF,SRF |
2 | ||
| 53817A - BRACKET, FRONT SIDE MUDGUARD, RH | ||||
| 53817-95400 |
BU2#,30,31,32,HU30,JU20,RU2#,30 |
1 | ||
| 53818A - BRACKET, FRONT SIDE MUDGUARD, LH | ||||
| 53818-95400 |
BU2#,30,31,32,HU30,JU20,RU2#,30 |
1 | ||
| 53846 - BASE, MUDGUARD RUBBER, REAR RH | ||||
| 66203-92605 |
BU20,JU20,RU20..HRF,SRF |
1 | ||
| 53847 - BASE, MUDGUARD RUBBER, REAR LH | ||||
| 66204-92605 |
BU20,JU20,RU20..HRF,SRF |
1 | ||
| 53848 - MUDGUARD, FENDER, REAR | ||||
| 66241-92310 |
BU20,JU20,RU20..HRF,SRF |
2 | ||
| 53849 - PLATE, MUDGUARD RUBBER SET, REAR | ||||
| 66224-92605 |
BU20,JU20,RU20..HRF,SRF |
2 | ||
| 53885 - MUDGUARD, FRONT RH | ||||
| 53885-92605 |
BU20,JU20,RU20..HRF,SRF |
1 | ||
| 53885A - MUDGUARD, FRONT SIDE, RH | ||||
| 53861-95402 |
BU2#,30,31,32,RU2#,30 |
1 | ||
| 53886 - MUDGUARD, FRONT LH | ||||
| 53885-92605 |
BU20,JU20,RU20..HRF,SRF |
1 | ||
| 53886A - MUDGUARD, FRONT SIDE, LH | ||||
| 53862-95402 |
BU20,30,RU20,30 |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58213-95409 |
BU20,23,30,31,32,HU30,JU20,RU2#,30..LHD |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58202-95400 |
BU2#,30,31,32,HU30,JU20,RU2#,30..LHD |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58403-95409 |
BU2#,30,HU30,JU20,RU2#,30..LHD |
1 | ||
| 58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1 | ||||
| 58435-95405 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 58424A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1 | ||||
| 58414-95400 |
HU30..IV1,IV3;HU30..TS..CBU;HU30..LHD..CBU;BU20,30,JU20,RU20,30 |
1 | ||
| 58424B - PACKING, ENGINE COVER, FRONT | ||||
| 58425-95403 |
HU30..IV1,IV3;HU30..TS..CBU;HU30..LHD..CBU;BU20,30,JU20,RU20,30 L=85 |
1 | ||
| 58430 - COVER ASSY, SUB-FLOOR SERVICE HOLE | ||||
| 58401-95403 |
BU2#,3#,HU30,JU20,RU2#,30..LHD |
1 | ||
| 58445A - CUSHION, ENGINE SERVICE HOLE COVER | ||||
| 58445-95400 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
3 | ||
| 58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER | ||||
| 71901-95407 |
BU2#,30,HU30,JU20,RU2#,30 |
2 | ||
| Common parts | ||||
| 90119-06094 | ||||
| 90159-60026 | ||||
| 90201-07367 | ||||
| 91111-40614 | ||||
| 91611-40616 | ||||
| 91621-40614 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 91656-60825 | ||||
| 93240-16016 | ||||
| 93315-15014 | ||||
| 94110-40600 | ||||
| 94614-10600 | ||||

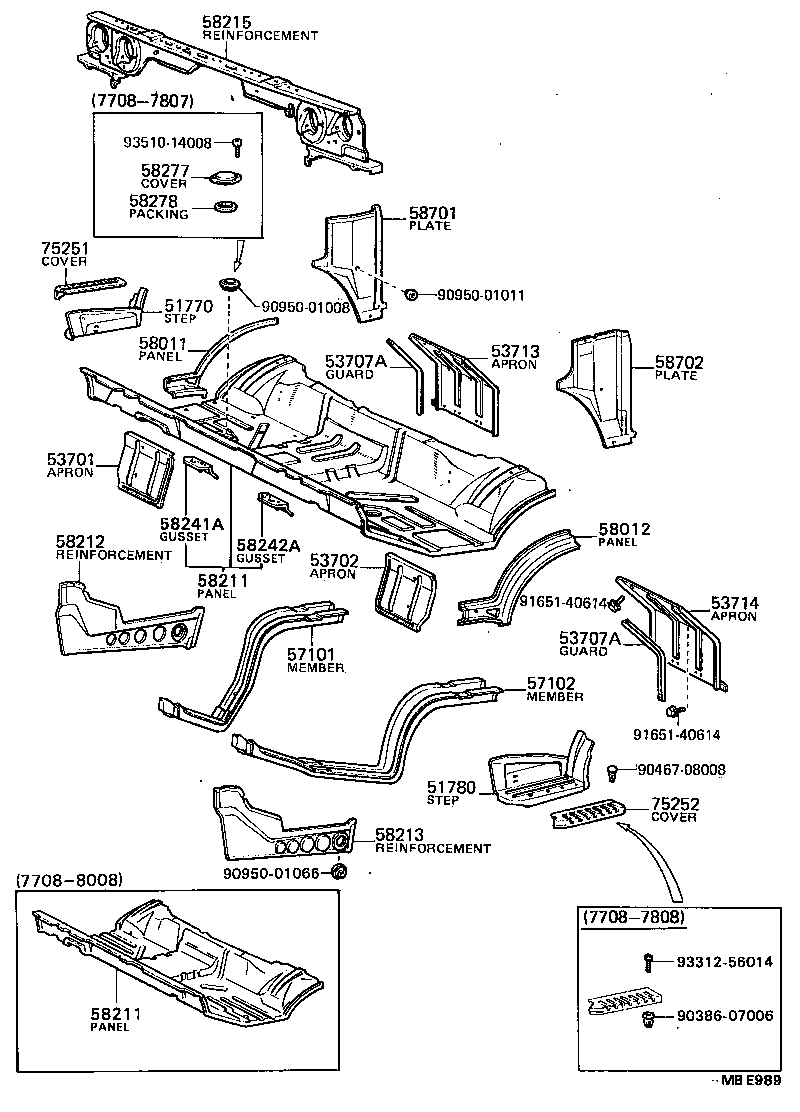

(7708-8408)HRF,SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51770 - STEP ASSY, FRONT, RH | ||||
| 51707-95400 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 51780 - STEP ASSY, FRONT, LH | ||||
| 51708-95400 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53711-95407 |
BU2#,30,HU30,JU20,RU2#,30 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53712-95411 |
BU2#,30,HU30,JU20,RU2#,30 |
1 | ||
| 53707A - GUARD, APRON FENDER SIDE | ||||
| 53722-92605 |
BU20,JU20,RU20..HRF,SRF |
2 | ||
| 53707A - GUARD, APRON FENDER SIDE | ||||
| 53722-92605 |
BU20,JU20,RU20..HRF,SRF |
2 | ||
| 53713 - APRON, FENDER SIDE, RH | ||||
| 53707-92605 |
BU20,JU20,RU20..V |
1 | ||
| 53714 - APRON, FENDER SIDE, LH | ||||
| 53708-92605 |
BU20,JU20,RU20..V |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-95400 |
BU2#,30,31,HU30,RU2#,30..GEN,GHI |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-95401 |
BU20,25,30,RU2#,30..GEN,GHI |
1 | ||
| 58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH | ||||
| 58221-95405 |
BU20,32,HU30,JU20,RU20,30..TW1,VSG,VSP |
1 | ||
| 58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 58222-95405 |
BU20,32,HU30,JU20,RU20,30..TW1,VSG,VSP |
1 | ||
| 58211 - PANEL, FRONT FLOOR | ||||
| 58211-95437 |
BU2#,30,HU30,RU2#,30..LHD..GEN |
1 | ||
| 58211 - PANEL, FRONT FLOOR | ||||
| 58211-95437 |
BU2#,30,HU30,RU2#,30..LHD..GEN |
1 | ||
| 58212 - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH | ||||
| 58227-95401 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 58213 - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 58228-95401 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 58215 - REINFORCEMENT, FRONT FLOOR, FRONT | ||||
| 57103-95401 |
BU2#,30,HU30,JU20,RU2#,30..LHD |
1 | ||
| 58241A - GUSSET, FLOOR PANEL, FRONT RH | ||||
| 58241-95401 |
BU2#,30,31,32,HU30,JU20,RU2#,30..LHD |
1 | ||
| 58242A - GUSSET, FLOOR PANEL, FRONT LH | ||||
| 58242-95401 |
BU2#,30,31,32,HU30,JU20,RU2#,30..LHD |
1 | ||
| 58277 - COVER, TRANSMISSION INSPECTION HOLE | ||||
| 58335-95400 |
HU30..IV1,IV3;HU30..TS..CBU;HU30..LHD..CBU;BU20,30,JU20,RU20,30 |
1 | ||
| 58335-95400 |
HU30..IV1,IV3;RU30..TS..ARL;RU2#..ARL..IV3;HU30..LHD..CBU;RU30..TB..ARL..IV3;HU30,RU20..TW1..ARL..CBU;BU2#,30,JU20,RU2#,30..EUR,GEN |
1 | ||
| 58278 - PACKING, TRANSMISSION INSPECTION HOLE COVER | ||||
| 58336-95400 |
HU30..IV1,IV3;HU30..TS..CBU;HU30..LHD..CBU;BU20,30,JU20,RU20,30 |
1 | ||
| 58336-95400 |
HU30..IV1,IV3;RU30..TS..ARL;RU2#..ARL..IV3;HU30..LHD..CBU;RU30..TB..ARL..IV3;HU30,RU20..TW1..ARL..CBU;BU2#,30,JU20,RU2#,30..EUR,GEN |
1 | ||
| 58701 - PLATE SUB-ASSY, SEAT FLOOR UNDER SHIELD, RH | ||||
| 58243-92615 |
BU20,JU20,RU20..LHD..(HRF,SRF) |
1 | ||
| 58702 - PLATE SUB-ASSY, SEAT FLOOR UNDER SHIELD, LH | ||||
| 58244-92615 |
BU20,JU20,RU20..LHD..(HRF,SRF) |
1 | ||
| 75251 - COVER, STEP PLATE FRONT, RH | ||||
| 75251-95401 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 75252 - COVER, STEP PLATE FRONT, LH | ||||
| 75252-95400 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| Common parts | ||||
| 90386-07006 | ||||
| 90467-08008 | ||||
| 90950-01008 | ||||
| 90950-01011 | ||||
| 90950-01066 | ||||
| 91651-40614 | ||||
| 93312-56014 | ||||
| 93510-14008 | ||||
